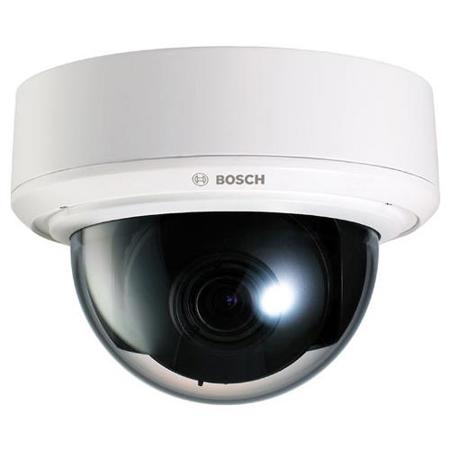

Bosch FLEXIDOME Outdoor 4000 960H Analog Dome Camera, PAL
See all Bosch items

Bosch FLEXIDOME Outdoor 4000 960H Analog Dome Camera, PAL

SKU: BHVDC242V031
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Bosch FLEXIDOME Outdoor 4000 Specifications

  • Effective Pixels (H x V)

    976 x 582

  • Image Sensor

    1/3" 960H CCD

  • Video Output

    BNC, 1 Vpp, 75 Ohms

  • Sync System

    Internal sync, line-lock

  • S/N Ratio

    (AGC off): 50 dB minimum

  • Resolution

    720 TVL

  • Sensitivity

    f/1.2 (50 IRE, AGC maximum)

  • Luminance

    Color: 0.12 lux
    B&W: 0.07 lux

  • Manual Shutter

    1/50 to 1/10,000

  • Digital Noise Reduction (DNR)

    2DNR

  • White Balance

    ATW, push, user1, user2, anti-CR, manual, push lock

  • Light Compensation

    Off, BLC, HLC

  • Adaptive Tone Reproduction

    On, Off

  • AGC (Automatic Gain Control)

    Auto: Off, 37 dB
    Manual: 6 to 44.8 dB

  • Digital WDR

    Off, on (36 dB)

  • Burst Mode

    On, Off

  • Motion Detection

    On, Off (4 programmable zones)

  • Privacy

    On, Off (4 programmable zones)

  • Mirror

    Horizontal mirroring

  • Sharpness

    0 to 255

  • Gamma

    0.45

  • Lens

    0.11 to 0.41" (2.8 to 10.5mm) varifocal (DC Iris)

  • Ratings

    IP66 and IK08

  • Connection

    Composite BNC

  • Supply Voltage

    12 VDC ( +/- 10%)
    24 VAC ( +/- 10%)

  • Power Consumption

    3.6 W @ 0.3 A

  • Operating Temperature Range

    14 to 122 Degree F (-10 to 50 Degree C)

  • Storage Temperature

    -4 to 140 Degree F (-20 to 60 Degree C)

  • Storage Humidity

    20 to 90% relative

  • Standards

    FCC Part 15:2013
    EN61000-3-2:2014
    EN61000-3-3:2013
    EN55024:2010
    EN50130-4:2011
    EN55022:2010
    EN60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
    UL 60950-1, 2nd Edition. 2014-10-14
    CAN/CSA-C22.2 No. 60950-1-07, 2nd Edition, 2014-10
    C-tick

  • Certification

    Europe: CE VDx_242_244
    USA: UL Bosch UL online certification
    Canada: ULC Bosch UL online certification

  • Dimensions (D x H)

    5.5 x 4" (139 x 102mm)

  • Weight

    1.3 lb (0.6kg)

About Bosch FLEXIDOME Outdoor 4000

FLEXIDOME AN outdoor 4000
These outdoor domes are compact, stylish surveillance cameras that offer excellent resolution in variable lighting conditions. The high performance 960H 1/3 inch CCD sensor provides a resolution of 720TVL. The water resistant (IP66 rated) and vandal resistant (IK8 rated) housing ensures reliable video surveillance in a variety of indoor and outdoor applications. The Day/Night version ensures the highest image quality possible at any time by automatically switching from color to monochrome.

The camera is easy to install and can be adjusted around 3 axes. Privacy zones and motion detection functions can be set up in the handy camera menu system.

Bosch FLEXIDOME Outdoor 4000 Features

  • Ultra high resolution 960H (1/3") sensor
  • Digital extended dynamic range
  • Digital noise reduction
  • Easy installation with 3-axis adjustment
  • Four programmable privacy zones

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ultra high resolution 960H (1/3") sensor
  • Digital extended dynamic range
  • Digital noise reduction
  • Easy installation with 3-axis adjustment
  • Four programmable privacy zones

What's in the box:

  • FLEXIDOME Outdoor 4000 960H Analog Dome Camera (PAL)
  • Bosch 3 Year Limited Warranty
