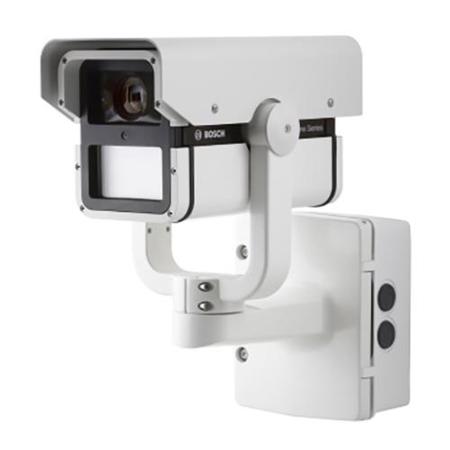

Bosch VEI-30 Dinion Infrared Day/Night Imager, 850 nm
SKU: BHVEI308V052
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Bosch VEI-30 Dinion
The Dinion Infrared Imager is a rugged, active infrared surveillance camera designed to master perimeter surveillance and other outdoor low-light applications. The IR Imager provides best-in-class images day and night covering up to 160 meters (525 feet) with unrivaled illumination quality throughout the field of view
From the most challenging daylight conditions to zero lux night environments, the VEI-30 gives you the details you need. Our Dinion 2X technology provides optimal 20-bit imaging in natural and artificial light, giving you a powerful wide dynamic range camera solution capable of handling the most demanding lighting situations, 24 hours a day.
Variable Field Illumination allows IR beam pattern adjustments in the field, allowing for wide area coverage and greatly reducing maintenance and setup time and effort. Variable Field Illumination also provides even illumination not only across the field of view but also from foreground to background. To ensure this performance never fades over time, the IR Imager features Constant Light technology, using closed loop feedback to control infrared performance throughout the life of the unit.
The IP67-rated junction box and the camera can be hung and connected in seconds, reducing time and energy on the ladder. The Bilinx (up-the-coax) remote control further reduces time needed for adjustments during and after installation by allowing for adjustments to be made remotely on the ground.
Functions
Dinion Integrated Imaging - reveal every detail
• More detail in difficult lighting featuring superior 120dB (20-bit image processing) wide dynamic range
• 24/7 performance around the clock with 2X image processing that dynamically adapts to scene changes in addition to infrared illumination compensation
High Performance Illumination
• Variable Field Illumination allows wider area coverage for even illumination across the field of view and from foreground to background
• Constant Light technology ensures consistent imaging throughout the life of the product
• 850 nm and 940 nm infrared wavelength options
Installer-Friendly Features
• Lightweight junction box can be preinstalled to minimize time "on the ladder"
• Integrated OSD, complete external adjustment, and Bilinx remote control reduces service and installation time
Ready for All Environments
• IP67 - dust proof and protection against temporary submersion
• NEMA4X - all weather rated and corrosion resistant
• EN60068-2-6 - shock and vibration tested
• IK10 - impact resistant (except for window)
• MIL-STD-810F2 - tested to operate in conditions exceeding A1 environments (harshest desert classification) for exposure to solar radiation
Bosch VEI-30 Dinion Features
- Certified all-weather active IR surveillance camera specifically designed for perimeter surveillance and other outdoor low-light applications
- Dinion 2X imaging with wide dynamic capability to handle the most demanding lighting situations
- Variable Field Illumination technology provides unmatched low-light and no-light performance
- Integrated junction box, remote control, and complete external adjustments minimize installation time and cost
