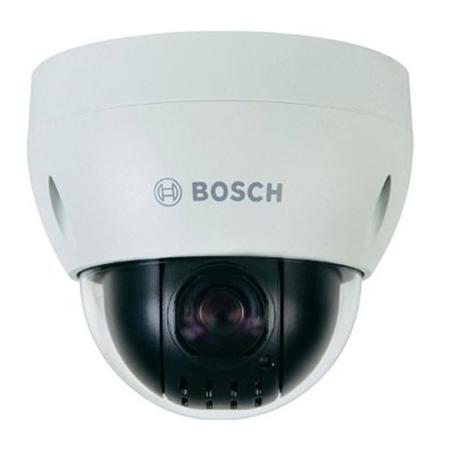

Bosch AUTODOME 4000 Mini PTZ Dome Camera, 30x, PAL, Clear Bubble, White
See all Bosch items

Bosch AUTODOME 4000 Mini PTZ Vandal-Resistant Dome Camera, 30x, PAL, Clear Bubble, White

SKU: BHVEZ413EWCS

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Bosch AUTODOME 4000 Mini Specifications

Certifications and approvals

Certifications and approvals

Jump to...

  • Region

    Europe; CE, USA; UL, FCC, Australia; CTICK

Camera

Jump to...

  • Imager

    1/4" Double Scan Super HAD CCD II

  • Lens size

    fW=3.49 +/-0.17 mm fT=104.02 +/-5.20 mm (30x +/- 10% Optical Zoom)

  • Effective Pixels

    PAL: 976 (H) x 582 (V)

  • Horizontal Resolution

    720 TVL (PAL)

  • Optical Zoom

    30x Effective Optical Zoom

  • Digital Zoom

    10x

  • Field of View (approximate)

    2.46 Degree (TELE) to 69.5 Degree (Wide)

  • Focus

    Automatic with manual override

  • Signal-to-Noise Ratio (SNR)

    >50 dB

  • Minimum Illumination

    0.2 Lux/ F1.65
    0.001 Lux/DS
    0.1 Lux/ICR

  • White Balance

    Auto, indoor, outdoor, one push

  • Iris Control

    Auto

  • Wide Dynamic Range (WDR)

    On/Off

  • Dynamic Noise Reduction (DNR)

    3DNR

  • Privacy

    15 zones maximum

Electrical

Jump to...

  • Power Supply

    24 VAC +/- 10%, 50/60 Hz
    Built-in power line surge

  • Power Requirements

    24 VAC adapter, 1 A (2.5 A with heater)

  • Power Consumption

    24 VAC, 850 mA / 20 W (without heater)
    24 VAC, 2A / 45 W (with heater)

  • Alarm Input

    4 normal dry contacts (selectable NC/NO)

  • Alarm Output

    1 normal relay 5 VDC / 40 mA maximum (selectable NC/NO)

  • Control

    RS-485; baud rate: 2400-38.4 Kbps (default = 9600 bps)

  • Access Time

    0.75 second maximum preset recall time

  • Camera Address (ID)

    Physical - 99

Environmental

Jump to...

  • Ingress Protection Rating

    IP66

  • External Mechanical Impact

    IK10 (IK Code or Impactrating)

  • Operating Temperature

    -40 Degree C to +50 Degree C (-40 Degree F to +122 Degree F) Heater works automatically from -40 Degree C/ Degree F to +10 Degree C (+50 Degree F)

  • Heater thermostat

    On/Off at 0 Degree C to 10 Degree C (32 Degree F to 50 Degree F)

  • Installation Humidity

    80% relative humidity (RH)

  • Storage Temperature

    -20 Degree C to +60 Degree C (-4 Degree F to +140 Degree F)

Communications

Jump to...

  • Camera Setup/Control

    RS-485; Bosch Biphase with converter (sold separately)

  • Communications Protocols

    Bosch, Pelco P/D; (Bosch Biphase to RS-485 converter (MIC-BP3), sold separately)

Construction

Jump to...

  • Housing Material

    Cast Aluminum

  • Color

    White

  • Bubble

    4.41" (112mm) polycarbonate; clear

Mechanical

Jump to...

  • Pan Range

    360 Degree continuous

  • Tilt Range

    0 Degree to 180 Degree (90 Degree when 3D Privacy Masking is enabled)

  • Flip Rotate

    180 Degree at bottom of tilt

  • Auto Scan

    8 Auto Scan modes including vector scan

  • Pre-position

    Speed 360 Degree /s

  • Preset Positions

    99 (Bosch OSRD); 210 (Pelco P/D) positions with camera status

  • Tours

    8 Tours (Preset, Pattern, Scan)

  • Patterns

    8 Patterns

  • On-Screen Display (OSD)

    Camera ID, Title, Mode, and Angle (multilanguage)

  • Multi-language OSD

    English, Chinese, Dutch, French, German, Italian, Russian, Spanish

  • Dimensions (D x H)

    6.06 x 5.43" (154 x 138mm)

  • Weight

    3.3 lb (1.5kg)

Other

Jump to...

  • UPC Code

    800549638678

About Bosch AUTODOME 4000 Mini

The AUTODOME 4000 Mini PTZ Dome is a rugged, compact, high-resolution, day/night camera that delivers uncompromised functionality and performance at a very affordable price. It features a 30x optical zoom (10x digital zoom), a horizontal resolution of 720 TVL (NTSC and PAL), privacy masking, Wide Dynamic Range (WDR), and a built-in heater.

With a dome diameter of only 4.4 inches (11.2 cm), the AUTODOME 4000 is about 70% smaller than traditional PTZ cameras and 20% smaller than most other compact domes. These compact dimensions make the AUTODOME 4000 ideal for discrete surveillance applications in both indoor and outdoor environments.

Bosch AUTODOME 4000 Mini Features

  • True day/night camera with 30x optical zoom
  • 720 TVL resolution
  • Wide Dynamic Range (WDR)
  • Compact, vandal-resistant (IK10 rated) enclosure
  • Suitable for indoor and outdoor use

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • True day/night camera with 30x optical zoom
  • 720 TVL resolution
  • Wide Dynamic Range (WDR)
  • Compact, vandal-resistant (IK10 rated) enclosure
  • Suitable for indoor and outdoor use

What's in the box:

  • AUTODOME 4000 Mini PTZ Vandal-Resistant Dome Camera
  • Drilling Template for Flush Mount
  • 4x 6 x 30mm Plastic Anchors
  • 4x #8 x 32 Screws and Attached O-Rings
  • 4x M4 x 12 Torx Screws and Attached O-Rings
  • 1x T20 Security Torx Wrench
  • Installation Manual
  • Bosch 3 Year Limited Warranty
