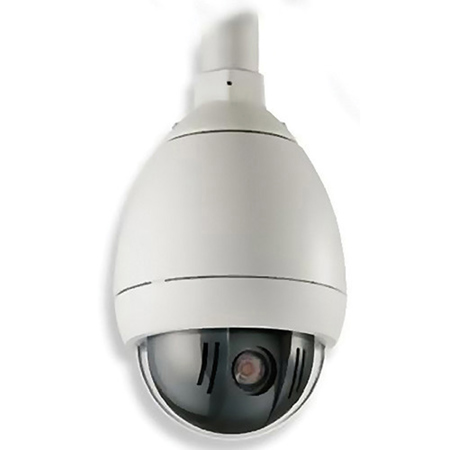

Bosch VG4-322-NCS AutoDome PTZ 18x Camera, Clear Bubble, Standard
SKU: BHVG4322NCS
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Reviews about this item
Review Summary
Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.
TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.
Invest In Your Gear and Peace Of Mind!
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
Repair or Replacement
If we can’t fix it, we’ll replace it at no additional cost.
Accidental Damage
Protect your product from drops, spills, and more.
Peace of Mind
Enjoy your gear without fear. We have you covered!
Malfunction Protection
When regular use of your product over time results in mechanical or electrical failure.
Zero Deductible
We will never charge you a deductible after the purchase of a plan.
Customer-Focused Support
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
Bosch AutoDome PTZ Camera Specifications
Camera
Camera
Jump to...Image Sensor
1/4" Exview HAD CCD
Resolution
768 x 494
Lens
18x Zoom (4.1-73.8 mm)F1.4 to F3.0
Focus
Automatic with manual override
Iris
Automatic with manual override
Field of View
2.7 to 48 Degree
Video Output
1.0 Vp-p, 75 Ohm
Gain Control
Off/Auto (with adjustable limit)
Synchronization
Line-Lock (-120 Degree to 120 Degree vertical phase adjust) or internal crystal
Aperture Correction
Horizontal and vertical
Horizontal Resolution
470TVL
Sensitivity
Day Mode
30/50 IRE SensUp Off: 0.4 lux / 0.7 lux
30/50 IRE SensUp On: 0.0041 lux / 0.0082 lux
Night Mode
30/50 IRE SensUp Off: 0.05 lux / 0.17 lux
30/50 IRE SensUp On: 0.0007 lux / 0.0013 luxSurge Protection
Protection on Video: Peak current 10 kA (Gas Tube Arrester), peak power 1000W (10/1000 mu)
Protection on RS-232/485,Biphase: Peak current 10 A, peak power 300W (8/20 mu)
Protection on Alarm Inputs: Peak current 17 A, peak power 300W (8/20 mu)
Protection on Alarm Outputs: Peak current 2 A, peak power 300W (8/20 mu)
Protection on Relay Outputs: Peak current 7.3 A, peak power 600W (10/1000 mu)
General
Jump to...Sectors/Titling
16 independent sectors with 16-character titles/sector
Camera Setup/Control
Biphase, RS-232, RS-485
Supported Languages
English, French, German, Spanish, Portuguese, Polish, Italian, and Dutch
Nitrogen Pressurized Housing
Jump to...Pan Range
360 Degree cont.
Tilt Angle
1 Degree above horizon
Pre-position speed
Pan: 360 Degree /s
Tilt: 210 Degree /sPreset Accuracy
+/- 0.1 Degree typ
Nitrogen Fill Valve
Schrader fill valve
Recommended Internal Pressure
62.05 kPa (9.0 psi) to 75.84 kPa (11.0 psi)
Maximum Internal Pressure
75.84 kPa (11.0 psi) +/- 5%
Power
21-30 VAC 50/60 Hz
Power Draw
55W
Operating Temperature
-40 to 140 Degree F (-40 to 60 Degree C)
Storage Temperature
-40 to 140 Degree F (-40 to 60 Degree C)
Humidity
0% to 100% relative, condensing
Weight
4.92 lb (2.23kg)
Other
Jump to...UPC Code
800549176668
About Bosch AutoDome PTZ Camera
What's in the box:
- VG4-322-NCS AutoDome PTZ 18x Camera
- Nitrogen Pressurized Housing
- Bosch 3 Year Limited Warranty
