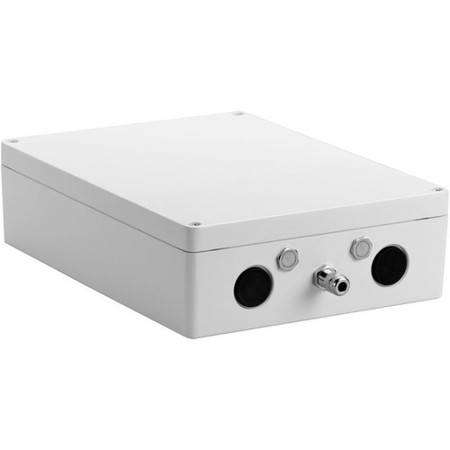

Bosch VIDEOJT Connect 7000 Network Power Supply
See all Bosch items

Bosch VIDEOJET Connect 7000 Network Power Supply

SKU: BHVJC700090

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Bosch VIDEOJET Connect 7000 Specifications

Certifications and Approvals

Certifications and Approvals

Jump to...

  • Electromagnetic Compatibility (EMC)

    Complies with FCC Part 15 Class A, ICES-003, and CE regulations, including latest versions of EN 50130-4, EN 55022:2010 EN 61000-3-3, EN 61000-6-1, and EN 61000-6-2

  • Product Safety

    Complies with UL, CE, CSA, EN, and IEC
    Standards 60950-1 & 22

  • Ingress Protection Rating/Standard

    IP66, IP67, NEMA Type 4

Electrical

Jump to...

  • Power requirements

    100 VAC - 240 VAC (90 VAC - 264 VAC with tolerance considered), 50/60 Hz, 1.6 A max.

  • Input power

    184 W

  • HPoE output

    95 W / 56V

Network

Jump to...

  • Communication

    3x 10BASE-T/100BASE-TX/1000Base-TX If SFP fiber optic modules installed: 2x 1000 BASE-FX

SFP Modules

Jump to...

  • SFP (small formfactor pluggable) slot

    Two (2) for use with SFP-based fiber optic modules (1GB only) such as:
    Agilent, SFP-GE-SX-MM850-A, HFBR5710LP 7
    Cisco, GLC-LH-SM 1300nm
    Cisco, GLC-SX-MM 850nm 8
    Finisar, FTLF8519P2BTL 850nm

Audio IN

Jump to...

  • Standard

    G.711, 8 kHz sampling rate
    L16, 16 kHz sampling rate
    AAC, 16 kHz sampling rate

  • Signal-to-Noise Ratio (SNR)

    >50 dB

Storage

Jump to...

  • Local storage

    One (1) slot for optional CompactFlash (CF) memory card, Type I / Type II, True IDE Mode, 1 TB max (usersupplied)

Miscellaneous

Jump to...

  • Washer switch

    Push button to activate/test the washer relay momentarily

User Connections

Jump to...

  • Alarm Inputs

    Four (4) normal dry contacts (selectable N.O./N.C.) Monitored supervised alarm input (Alarm 1), 2.2K ohm ( Ohm) end-of-line terminating resistor

  • Alarm Outputs

    Three (3) open collector outputs, 32 VDC, 150 mA

  • Washer driver output

    Dry contact relay, 250 V, 5 A

  • RJ45 connectors

    (3) - one PoE/PoH, 95W max; two standard network connections suitable for interface to head end network and 'daisy chain' type connection to second camera or VJC-7000-90 location

Audio

Jump to...

  • Connector

    3.5 mm stereo jack

  • Signal line in

    9 kohm typical, 5.5 Vpp max.

Environmental

Jump to...

  • Ingress Protection Rating/Standard

    IP66, IP67, NEMA Type 4

  • Operating Temperature

    -40 Degree C to +60 Degree C (-40 Degree F to +140 Degree F)

  • Storage Temperature

    -60 Degree C to +70 Degree C (-76 Degree F to +158 Degree F)

  • Humidity

    0-100%

Construction

Jump to...

  • Material

    Powder-coated cast aluminum

  • Color

    White (RAL 9010) with sand finish

  • Standard Finish

    Powder coat paint, sand finish

  • Glands

    Water-tight glands/seals, rated IP67, NEMA Type 4

  • Dimensions (L x W x H)

    13 x 9.84 x 3.57" (330 x 250 x 90.75mm)

  • Weight

    15.9 lb (7.21kg)

Other

Jump to...

  • UPC Code

    800549730952

About Bosch VIDEOJET Connect 7000

The device VIDEOJET connect 7000 (VJC-7000-90) is a full-featured network power supply unit that can operate a variety of Bosch PTZ cameras such as MIC7000. The device includes one (1) HPoE network connection, two (2) standard network interfaces for connections to additional IP devices, one (1) slot for an optional CompactFlash (CF) memory card, two (2) slots for use with SFP-based fiber optic modules, alarm/washer control interfaces, and audio in.

Note: To achieve a distance of 100 m (328') using Cat5e/Cat6e cable, Bosch recommends using cable with a minimum rating of 350 MHz.

Bosch VIDEOJET Connect 7000 Features

  • Operates a variety of Bosch HD PTZ cameras, including MIC7000
  • Alarms, washer pump control, local storage slot for a CompactFlash (CF) memory card, built-in web browser for control of connected cameras
  • One (1) HD-BaseT PoH dedicated for one RJ45 Ethernet port; three (3) RJ45 ports; two (2) SFP ports
  • Support for daisy-chaining of multiple cameras

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Operates a variety of Bosch HD PTZ cameras, including MIC7000
  • One (1) HD-BaseT PoH dedicated for one RJ45 Ethernet port; three (3) RJ45 ports; two (2) SFP ports
  • Support for daisy-chaining of multiple cameras

What's in the box:

  • VideoJet Connect 7000 Enclosure
  • Parts Bag With 1x Terminal Plug Connector (2-Pin / 3-Pin / 6-Pin / 7-Pin)
  • 3x Watertight M16 Cable Glands with Orings
  • Installation Manual
  • Bosch 3 Year Limited Warranty
