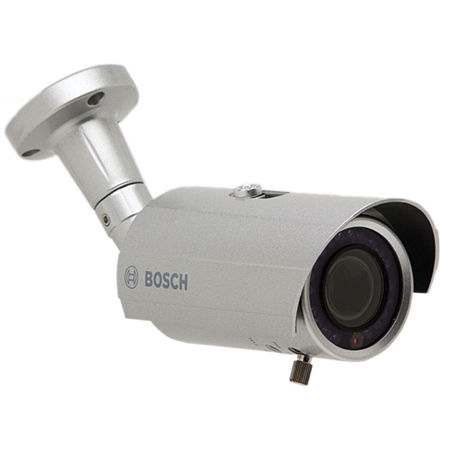

Bosch WZ18 540 TVL Integrated IR Bullet Camera
See all Bosch items

Bosch WZ18 540 TVL Integrated IR Bullet Camera

SKU: BHVTI218V032

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Bosch WZ18 IR Bullet Camera Specifications

Certifications and Approvals

Certifications and Approvals

Jump to...

  • Standards

    ANSI C63.4: 2003, FCC Part 15 subpart B, Class A
    UL 60065, 7th Edition. 2007-12-11
    CAN/CSA-C22.2 No. 60065-03, 1st Edition, 2006-04 + A1:2006
    EN55022:2006, Class A
    EN50130-4:1995+A1:1998+A2:2003
    EN61000-3-2:2006
    EN61000-3-3:1995 + A1:2001 + A2:2005
    LVD 2006/95/EC, EN60065:2002 + A1:2006 + A11:2008
    IP66, IEC 60529 (2001), IEC 60529:(2002)

Video

Jump to...

  • Signal Processing

    Digital signal processing

  • CCD Camera

    1/3" SuperHAD CCD with Mechanical Filter technology

  • Filter

    Dual-window mechanical type, IR Pass, IR-Cut

  • Color Resolution

    High resolution 540 TVL

  • Effective Pixels (H x V)

    768 x 494

  • Night Time Sensitivity

    0 lux (infrared on)

  • Day-Night Switching

    Photocell-controlled, automatic

  • Electronic Shutter

    1/60 to 1/100,000 s

  • Output Signal

    1 VPP composite video, 75 ohm

  • S/N Ratio

    Greater than 50 dB

  • Gamma

    0.45

  • Lens

    Varifocal 2.8-12mm, DC auto-iris

  • Lens Control

    Externally adjustable zoom, focus, and auto-iris

  • LEDs

    Even-distribution infrared array, photocell-controlled

  • Wavelength

    850 nm

  • Number of IR LED's

    18

Electrical

Jump to...

  • Power

    12 VDC or 24 VAC

  • Power Draw

    6.7 W max

Environmental

Jump to...

  • Operational Temperature

    14 to 122 Degree F (-10 to 50 Degree C)

  • Environment

    IP66-rated

Mechanical

Jump to...

  • Construction

    Robust aluminum extrusion

  • Finish

    Anodized silver

  • Bracket

    360 Degree pan / 90 Degree tilt bracket included

  • Dimensions (Diameter x L)

    3.0 x 5.1" (76 x 130mm)

  • Weight

    1.9 lb (0.85kg)

Other

Jump to...

  • UPC Code

    800549604185

About Bosch WZ18 IR Bullet Camera

The WZ18 uses a 1/3" CCD image sensor which delivers 540 TVL images. The 18 integrated infrared LEDs deliver 20 m (66') of high performance night vision.

The 2.8 to 12 mm varifocal, auto-iris lens has external focus and zoom controls and requires no tools for adjustment. Designed to IP66 environmental standards, WZ18 operates on either 12 VDC or 24 VAC.

Bosch WZ18 IR Bullet Camera Features

  • High resolution performance (540 TVL)
  • Vivid daytime color
  • High performance night vision at 20 m (66')
  • Flexible viewing angle
  • Discreet outdoor operation (IP66)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High resolution performance (540 TVL)
  • Vivid daytime color
  • High performance night vision at 20 m (66')
  • Flexible viewing angle
  • Discreet outdoor operation (IP66)

What's in the box:

  • WZ18 540 TVL Integrated IR Bullet Camera
  • 360 Degree Pan and 90 Degree Tilt Mounting Bracket
  • Sunshield
  • Bosch 3 Year Limited Warranty
