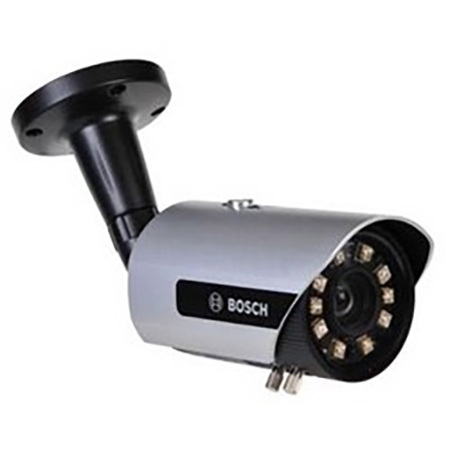

Bosch DINION AN 4000 WDR 960H Analog Outdoor Infrared Bullet Camera, 5-50mm Lens, PAL

These Wide Dynamic Range (WDR) outdoor IR bullet cameras are compact, stylish surveillance cameras that offer excellent resolution in variable lighting conditions. The high performance 960H 1/3" Double Scan (DS) CCD sensor provides a resolution of 720TVL. The WDR function ensures the best image performance under difficult (high contrast) lighting conditions. The water resistant (IP66 rated) and vandal resistant (IK08 rated) housing ensures reliable video surveillance in a variety of indoor and outdoor applications.

System overview
The camera is supplied ready to operate. For especially challenging situations where fine tuning or special settings are required, the camera parameters can be individually set using the control buttons on the camera and an On-Screen Display (OSD).

Functions

Detail in extreme lighting
In harsh lighting, the difference between the brightest and the darkest parts of a scene can be extreme. To produce a clear picture in these conditions, the CCD sensor in the camera generates two images; one long exposure to resolve details in the scene's darkest areas, and one short exposure to resolve details in the scene's brightest areas. The camera combines these dual shutter images, mixing pixels from each exposure to produce the most detailed image possible.

Built-in IR illuminator
This integrated IR camera has 10 infrared LEDs providing up to 100 m (330 ft) of night vision. The IR light pattern is optimized using special LED lenses to significantly improve the light performance at the sides and in the corners of the image.

Day/Night mode
The true day/night feature provides enhanced night viewing. The mechanical IR filter switches from color to monochrome automatically by sensing the illumination level.

Ideal picture performance
There are many settings available to help fine-tune the picture performance to match your installation environment. These include:

• BLC - automatically and dynamically compensates for strong backlight
• HLC - reduces glare from highlight areas
• True wide dynamic range - extends dynamic range to see bright and dark details simultaneously
• Contrast and sharpness - enhance details in bright or misty scenes
• Dynamic noise reduction - dynamically reduces noise in the picture

Privacy masking
Fifteen different privacy zones allow specific parts of a scene to be blocked. Pre-program any part of the scene to be masked.

Video Motion Detection
The built-in video motion detector allows you to select four programmable areas with sensitivity thresholds. When motion is detected, alarms can be displayed in the video signal.

Typical applications:
• Museums and art galleries
• Shopping centers
• Offices
• Schools, colleges and universities
• Petrol/gas stations
