Bizcom SL PASC 4 4-Way Passive Antenna Splitter and Combiner for SpeechLine Digital Wir eless Microphone Series

SKU: BIZ390041 MFR: 390041

Key Features

  • Enhance your wireless microphone system with this 4-way antenna splitter and combiner.
  • Maximize signal strength and clarity with our passive antenna splitter for SpeechLine Digital.
  • Ensure reliable audio connectivity using the BizCom SL PASC 4 antenna distribution system.
  • Simplify setup with included SMA-R cables, perfect for professional audio configurations.
  • Durable design ensures consistent performance for your wireless microphone setup, event after event.
  • Optimize your microphone signal with minimal loss, thanks to its -8 dB typical insertion loss.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BizCom SL PASC Specifications

  • Frequency range

    1,880 - 1,930 MHz

  • Insertion loss

    -8 dB typ.

  • Port to port isolation

    26 dB min.

  • Input / Output return loss

    -14 dB max.

  • Connectors

    AC coupled ports

  • Max. input power

    1.5 W

  • Operating temperature

    -40 to 185 Degree F (-40 to 85 Degree C)

  • Relative humidity

    Max. 95 % (non-condensing)

  • Dimensions

    8.2 x 6.3 x 1.6" (210 x 160 x 41mm)

  • Weight

    23.38 oz (663g)

  • UPC Code

    615104349797

About BizCom SL PASC

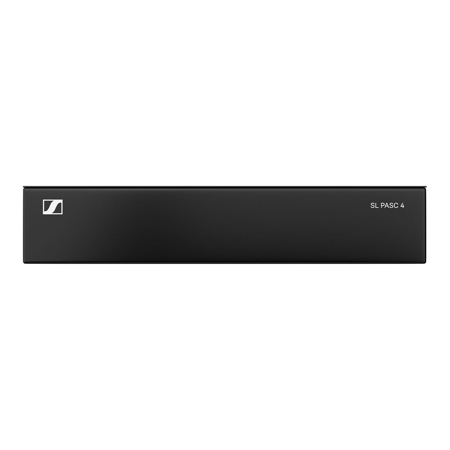

The SL PASC 4 is a passive 4-way Diversity antenna splitter / combiner for the SpeechLine Digital Wireless microphone series. It is used to distribute the antenna signals of up to 4 SpeechLine Digital Wireless links. This reduces the number of required antenna cables to a minimum when the AWM 2 or AWM 4 remote antennas are used. The rack receivers are connected to the SL PASC 4 using the supplied SMA-R cables.

BizCom SL PASC Features

  • 1880 - 1930 MHz (DECT range)
  • 8 RF outputs for connecting up to 4 SL Rack Receiver DW units
  • 2 RF inputs to connect AWM 2 or AWM 4
  • SMA-RP connectors
  • Passive antenna combiner / splitter

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Enhance your wireless microphone system with this 4-way antenna splitter and combiner.
  • Maximize signal strength and clarity with our passive antenna splitter for SpeechLine Digital.
  • Ensure reliable audio connectivity using the BizCom SL PASC 4 antenna distribution system.
  • Simplify setup with included SMA-R cables, perfect for professional audio configurations.
  • Durable design ensures consistent performance for your wireless microphone setup, event after event.
  • Optimize your microphone signal with minimal loss, thanks to its -8 dB typical insertion loss.

What's in the box:

  • BizCom SL PASC 4 4-Way Passive Antenna Splitter and Combiner
  • 8x 19.6" SMA-R Cable
  • User Manual
  • BizCom 2 Year Limited Warranty
