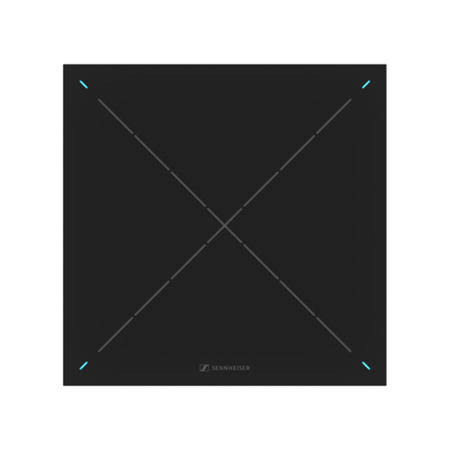

Bizcom TeamConnect Ceiling 2 Beamforming Microphone Array, Black

SKU: BIZ509161 MFR: 509161

Key Features

  • Experience crystal-clear audio with this beamforming microphone array, perfect for conference calls.
  • This ceiling microphone offers a wide frequency response, capturing every nuance from 160 Hz to 18,000 Hz.
  • Ensure seamless connectivity with Dante network audio, streamlining your digital audio setup effortlessly.
  • With a signal-to-noise ratio of 83 dB, this microphone delivers pristine sound quality in any environment.
  • Benefit from low-noise performance, as this microphone's equivalent noise level is only 11 dB (A).
  • Rely on the durability of this BizCom microphone, backed by a 2-year warranty for peace of mind.
See More Product Details
Special Order?Estimated to Ship: 09/09/2025
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$499.99

3 Year

$649.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BizCom TeamConnect Ceiling 2 Specifications

General

General

Jump to...
  • Audio Output

    1x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
    2x Digital Dante Network Audio (RJ-45 Primary and Secondary)

  • Ethernet / Control

    1x RJ-45 Ethernet Port for PoE power supply and data/control communication

  • Supply voltage

    44 - 57 V DC
    PoE IEEE 802.3af Class 3

  • Power consumption

    Max. 8.8 W

  • Safety certification

    UL 62368 certification (including UL 2043 testing and compliance)

Ambient conditions

Jump to...
  • Temperature

    Operation: 32 - 104 Degree F (0 - 40 Degree C)
    Storage: 14 - 140 Degree F (-10 - 60 Degree C)

  • Relative air humidity

    20 - 95 %, non-condensing

Acoustic properties

Jump to...
  • Transducer principle

    Pre-polarized condenser microphone

  • AF frequency response

    160 Hz - 18,000 Hz

  • Sensitivity

    0 dBV/Pa (988 mV/Pa)

  • Signal-to-noise ratio

    83 dB (A)

  • Latency

    4 ms

  • Equivalent noise level

    11 dB (A)

  • Number of KE 10-237 microphone capsules

    28

  • Pick-up pattern

    Beam Pattern

  • Max. sound pressure level

    104 dB SPL

  • Dynamic range

    93 dB (A)

Physical

Jump to...
  • Dimensions (L x B x H)

    23.22 x 23.22 x 1.7" (590 x 590 x 43mm)

  • Weight

    12.5 lbs (5.6kg)

  • UPC Code

    615104356436

About BizCom TeamConnect Ceiling 2

There's still no better solution for larger meeting rooms and lecture or collaboration spaces than our industry-leading TeamConnect Ceiling 2 ceiling microphone.

With its functional square form the TCC 2 gracefully integrates into the design of modern meeting rooms - simply by replacing a ceiling tile. The TeamConnect Ceiling 2 is a real problem-solver that allows cable free tables and flexible furniture arrangement, while offering all of the TeamConnect Ceiling Solutions benefits like Trusted Sennheiser Audio Quality, efficient setup, brand agnostic integration, simple management and control, a sleek design and a sustainable impact.

BizCom TeamConnect Ceiling 2 Features

  • Patented automatic dynamic beamforming
  • TruVoicelift
  • 28 Electret condenser capsules, made in Germany
  • Perfect speech intelligibility
  • Dante or Analog Output
  • PoE
  • Certified for: MS Teams, Zoom, DingTalk and Tencent
  • Exclusion Zones
  • Priority Zone
  • Camera Control via talker position data
  • IEEE 802.1x

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with this beamforming microphone array, perfect for conference calls.
  • This ceiling microphone offers a wide frequency response, capturing every nuance from 160 Hz to 18,000 Hz.
  • Ensure seamless connectivity with Dante network audio, streamlining your digital audio setup effortlessly.
  • With a signal-to-noise ratio of 83 dB, this microphone delivers pristine sound quality in any environment.
  • Benefit from low-noise performance, as this microphone's equivalent noise level is only 11 dB (A).
  • Rely on the durability of this BizCom microphone, backed by a 2-year warranty for peace of mind.

What's in the box:

  • BizCom TeamConnect Ceiling 2 Beamforming Microphone Array (Black)
  • 3-Pin 3.81mm Phoenix Connector
  • 8x Self-Adhesive Rubber Feet
  • 2x Eye Bolts (M4x10)
  • User Manual
  • BizCom 2 Year Limited Warranty
