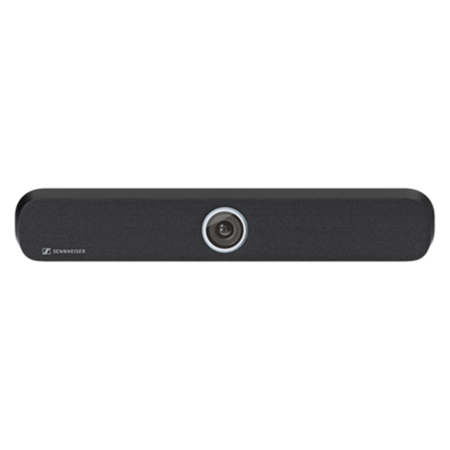

Bizcom TeamConnect Bar Small Conferencing Solution

SKU: BIZ700105 MFR: 700105

Key Features

  • Experience crystal-clear audio with the TeamConnect Bar Small's full range speakers.
  • Enjoy seamless connectivity with Bluetooth 5.1 for wireless audio conferencing.
  • The 4K camera ensures high-quality video, perfect for professional presentations.
  • Easily manage meetings with the included remote control for intuitive operation.
  • The integrated beamforming microphone array provides exceptional voice clarity.
  • Simplify setup with included mounting bracket for quick and secure installation.
See More Product Details
Special Order?Estimated to Ship: 08/19/2025
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

BizCom TeamConnect Bar S Specifications

Power State Information

Power State Information

Jump to...
  • Power State Information Standby Mode

    <= 0.50 W (Entered after < 2.5 hours with no activity on any network port)

  • Networked Standby

    Ethernet port is in use: <= 2.00 W (Entered after < 20 minutes of inactivity)
    All other ports: <= 2.00 W (Entered after < 20 minutes of inactivity)

Interfaces

Jump to...
  • HDMI out

    HDMI

  • USB-C

    USB 3.1 (Gen 1)

  • USB-A power output

    USB 3.1 (Gen1)
    5 V , max. 900 mA

  • Ethernet

    1x 1000/100/10 Mbit/s (RJ45) (Only use network cables with the standard CAT5e (F/STP) or better)

  • Dimensions

    DC IN: (5.5 x 2.1 x 10.5mm)

  • Standard

    IEEE 802.11a /b /g /n /ac

  • Transmission system

    SISO (Single-In, Single-Out)

  • Frequency ranges (max. RF output power)

    2412 MHz - 2472 MHz (max 20 dBm RF power)
    5150 MHz - 5350 MHz (max. 23 dBm RF power)
    5470 MHz - 5725 MHz (max. 23 dBm RF power)
    5725 MHz - 5850 MHz (max. 14 dBm RF power)

  • Modulation

    64QAM, 16QAM, QPSK, BPSK, CCK, DQPSK, DBPSK

Bluetooth Technology

Jump to...
  • Version

    5.1

  • Transmission frequency

    2402 MHz - 2480 MHz

  • Modulation

    GFSK, Pi/4 DQPSK, 8DPSK

  • Profiles

    A2DP, HFP, AVRCP

  • Max. RF output power

    10 dBm

  • Codec

    SBC

Loudspeaker

Jump to...
  • Number of speakers

    2 full range loudspeakers with passive radiator

  • Frequency response

    100 Hz - 18 kHz

  • THD at max. output

    < 5 %

  • Amplifier

    Class-D

  • Max. SPL (output)

    80dB SPL

  • Total Audio Power (RMS/PEAK)

    10 W / 20 W

  • Diameter

    2" (50mm)

Microphones

Jump to...
  • Transducer principle

    MEMS

  • Pick-up pattern

    Beamforming Array

  • Number of microphone capsules

    4

  • Frequency range

    100 Hz to 14.5 kHz

  • Pickup range

    Dia.: 14.1' (4m)

  • Dynamic range

    69 dB (A)

  • Resolution

    Camera: 4k 30 FPS
    UVC stream: 1080p, 720p, 960 x480, 848 x480, 640 x480, 640 x360, 432 x240

  • Zoom

    Certified: 2x digital (Microsoft Teams)
    Optional: 3x digital

  • Technology

    ePTZ

  • Diagonal field of view

    120 Degree

  • Horizontal field of view

    115 Degree

  • Resolution

    4k 60 FPS

RC TC Bar

Jump to...
  • Transmission

    Infrared

  • Range

    Approx. 19.6' (6m)

  • Power Supply

    2x AAA batteries, 1.5 V (zinc-carbon battery)

  • Temperature range

    14 Degree F to 122 Degree F (-10 Degree C to 50 Degree C)

  • Dimensions (L x W x H)

    4.9 x 1.5 x 0.55" (126 x 40 x 14mm)

  • Weight

    Remote Control: 2.1 oz (60g) (incl. batteries)
    Holder: 5.6 oz (160g)

Mounting Kit

Jump to...
  • Dimensions (L x W x H)

    7.8 x 2.4 x 2.9" (199 x 62 x 74mm)

  • Weight

    12 oz (340g)

VESA Mounting Kit

Jump to...
  • Screen size

    27 - 78" (68.58 - 198cm)

  • Max. extension

    33" (845mm)

  • Max. load

    44 lbs (20kg)

  • Weight

    5.7 lbs (2.6kg)

  • Input voltage

    100 - 240 V -

Power Supply

Jump to...
  • Input frequency

    50 - 60 Hz

  • Input current

    1500 mArms

  • Output voltage

    15 V

  • Output current

    3000 mA

  • Power output

    45 W

  • AC plug type

    2-pin

  • Relative humidity operation

    20 to 98 %, non-condensing

  • Relative humidity storage

    20 to 98 %, non-condensing

  • Operating temperature range

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage temperature range

    -40 Degree F to 176 Degree F (-40 Degree C to 80 Degree C)

  • DC plug dimensions

    0.21 x 0.08 x 0.43" (5.5 x 2.1 x 11mm)

  • Dimensions (L x W x H)

    4.2 x 2 x 1.3" (108 x 52 x 34mm)

  • Weight

    10.58 oz (300g)

General

Jump to...
  • System Requirements

    Windows: 10 or later
    macOS: 13 or later
    Android: 11 or later
    Installed DisplayLink driver on used operating system

  • Operating temperature range

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage temperature range

    -13 Degree F to 158 Degree F (-25 Degree C to 70 Degree C)

  • Relative humidity operation

    0 to 75 %, non-condensing

  • Relative humidity storage

    0 to 95 %, non-condensing

  • DC IN

    15 V , max. 2 A

  • Max. power consumption

    30 W

  • Voltage range PoE (PD)

    42.5 - 57.0 V (IEEE 802.3at Type 2, PoE+)

  • Dimensions (L x W x H)

    TC Bar: 17.71 x 2.79 x 3" (450 x 71 x 76mm)

  • Weight

    TC Bar: 3.3 lbs (1.5kg)

  • UPC Code

    615104380264

About BizCom TeamConnect Bar S

The TeamConnect Bar S is the most flexible all-in-one device for small meeting rooms and collaboration spaces.
The TeamConnect Bar S is the most flexible all-in-one device for small meeting rooms and collaboration spaces. The TC Bar S features 4 microphones and 2 speakers to deliver Trusted Sennheiser Audio Quality to every meeting. The TC Bar S is a true problem solver with benefits like easy setup, brand agnostic integration, easy management & control, high video quality, security and sustainability.

Plug and Play Device
Quick start via USB cable

Integrated Beamforming Technology
Freedom of movement and seamless transition among presenters

Flexible Extensions
Using Dante for adding extension mics and/or a 2nd external USB camera

High Video Quality
4K Ultra HD camera equipped with advanced AI features

Full-Range Stereo Speakers
Natural speech and outstanding intelligibility

Built-In DSP
Automatically optimizes room acoustics

Multiple Mounting Options
Wall Mount, VESA Mount, Tabletop or Freestanding

Autoframing and Person Tiling
Features to clearly see everyone in the room

Control Management
Full remote-control access via Sennheiser Control Cockpit

Brand Agnostic Integration
Certifications pending for 3rd party media control systems (Barco, Crestron, Extron, Q-Sys) and platforms (Microsoft Teams, Zoom, Tencent, etc.)

Advanced Security Features
Encrypted control communication and password protected by default for secure content transmission

BizCom TeamConnect Bar S Features

  • Plug and Play Device: Quick start via USB cable
  • Integrated Beamforming Technology: Freedom of movement and seamless transition among presenters
  • Flexible Extensions: Using Dante for adding extension mics and/or a 2nd external USB camera
  • High Video Quality: 4K Ultra HD camera equipped with advanced AI features
  • Full-Range Stereo Speakers: Natural speech and outstanding intelligibility
  • Built-In DSP: Automatically optimizes room acoustics
  • Multiple Mounting Options: Wall Mount, VESA Mount, Tabletop or Freestanding
  • Autoframing and Person Tiling: Features to clearly see everyone in the room
  • Control Management: Full remote-control access via Sennheiser Control Cockpit
  • Brand Agnostic Integration: Certifications pending for 3rd party media control systems (Barco, Crestron, Extron, Q-Sys) and platforms (Microsoft Teams, Zoom, Tencent, etc.)
  • Advanced Security Features: Encrypted control communication and password protected by default for secure content transmission

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Experience crystal-clear audio with the TeamConnect Bar Small's full range speakers.
  • Enjoy seamless connectivity with Bluetooth 5.1 for wireless audio conferencing.
  • The 4K camera ensures high-quality video, perfect for professional presentations.
  • Easily manage meetings with the included remote control for intuitive operation.
  • The integrated beamforming microphone array provides exceptional voice clarity.
  • Simplify setup with included mounting bracket for quick and secure installation.

What's in the box:

  • BizCom TeamConnect Bar Small Conferencing Solution
  • Mounting Bracket
  • Drilling Template
  • Power Supply Unit with Power Cord
  • Remote Control with Batteries
  • Bracket & Storage for Remote Control
  • Magnetic Lens Cap
  • High Speed HDMI Cable with Ethernet
  • USB-C to USB-C Cable
  • Screws
  • Quick Start Guide
  • BizCom 2 Year Limited Warranty
