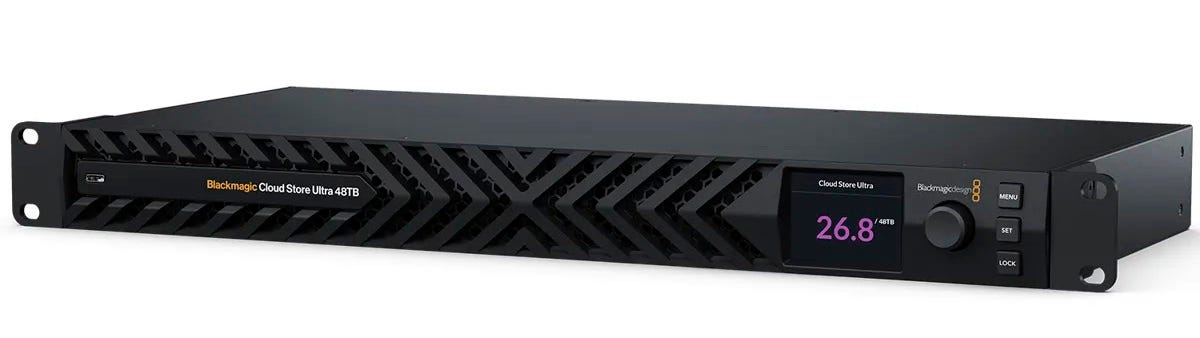

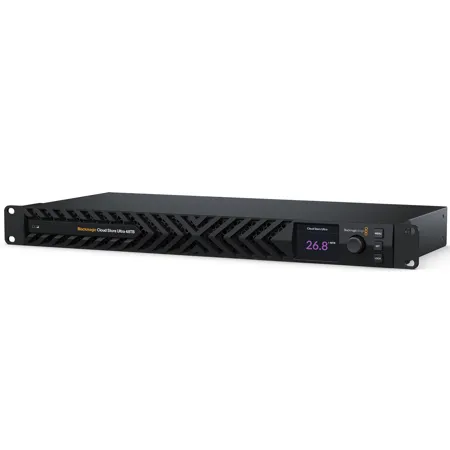

Blackmagic Design Cloud Store Ultra, 48TB

SKU: BMDCLDSTRUL4 MFR: DWCLDG/CLDULT048
Earn VIP Reward Points

Key Features

  • Experience lightning-fast data transfer with two independent 100G Ethernet ports for ultimate efficiency.
  • Safeguard your valuable data with robust RAID 0 & 5 configurations, ensuring superior reliability.
  • Effortlessly expand your storage capacity with this 48TB Blackmagic Cloud Store Ultra, perfect for large projects.
  • Streamline your workflow; this server offers exceptional data redundancy to protect against loss.
  • Securely manage and access your files, providing peace of mind for all your critical data.
  • Enjoy unparalleled scalability, adapting to your growing storage needs with ease and performance.
See More Product Details
Pre Order Now?
Free Expedited Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Blackmagic Design Cloud Store Ultra Specifications

Connections

Connections

Jump to...
  • 100G Ethernet Networks

    2x 100G QSFP28 connections.
    Each 100G port can be assigned an independent IP address and subnet mask for up to 200G bandwidth and load balancing when used with a managed switch

  • 1G Management

    1x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For Cloud Store Setup utility and software updates

  • SDI Monitor Outputs

    2

  • HDMI Monitor Outputs

    1

  • SDI Rates

    1.5G, 3G

  • Computer Interface

    1x USB-C for Cloud Store Setup utility and software updates

  • Power

    2x IEC C14 power inputs

File Sharing Protocol

Jump to...
  • Protocol

    NFS
    SMB

  • Computer Connections

    200 max

Cloud Synchronization

Jump to...
  • Cloud Synchronization

    Blackmagic Cloud
    Amazon Web Services S3 sync

Storage

Jump to...
  • Storage Type

    M.2 NVMe SSD

  • Total Capacity

    48TB

Displays

Jump to...
  • Front Panel Display

    Built in 2.2 inch LCD for settings plus storage name, capacity and use

  • Monitor Out Displays

    Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph

  • SDI Monitor Out Standards

    1080p50, 1080p59.94, 1080p60

  • HDMI Monitor Out Standards

    1080p50, 1080p59.94, 1080p60

Control

Jump to...
  • Built in Control Panel

    3 buttons, 2.2 inch color display and spin knob for menu settings

  • External Control

    USB-C or Ethernet for configuration and software updates

Software

Jump to...
  • Software Included

    Blackmagic Cloud Setup Utility

  • Blackmagic Proxy Generator Lite

    Internal software upgrade via Blackmagic Cloud Setup using USB-C or 1G Management port

Operating Systems

Jump to...
  • Operating Systems

    Mac 15.0 Sequoia, Mac 26.0 Tahoe or later.
    Windows 11

Power Requirements

Jump to...
  • Power Supply

    2x 100 - 240V AC 50/60Hz internal power supplies

  • Power Inputs

    2x IEC C14 sockets

Environmental

Jump to...
  • Operating Temperature

    41 to 104 Degree F (5 to 40 Degree C)

  • Storage Temperature

    -4 to 113 Degree F (-20 to 45 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...
  • Physical Installation

    1 Rack unit

  • Dimensions

    19 x 9.06 x 1.74" (48.26 x 23.01 x 4.42cm)

  • UPC Code

    9338716010725

About Blackmagic Design Cloud Store Ultra

Blackmagic Cloud Store Ultra, an extremely high performance flash storage with up to 48TB capacity and two independent 100G Ethernet connections that lets customers record and edit simultaneously without either workflow interfering with the other. Available in 24TB and 48TB models, it also features RAID 5 support, dual redundant power supplies and Blackmagic Cloud sync.

Blackmagic Design Cloud Store Ultra 48TB

Blackmagic Cloud Store is incredibly high performance rack mount network storage designed for the film and television industry. It is specifically designed for HyperDeck recorders, allowing customers to edit while recording is in progress. Plus it understands Blackmagic Cloud media sync and support DaVinci Resolve proxy files. This means the camera media will sync within seconds when a remote film crew starts shooting, allowing the post production team to begin working immediately. A fast flash-based memory core allows many users to work simultaneously. Perfect for sharing large media files between editors, colorists, audio engineers, and VFX artists.

Blackmagic Design Cloud Store Ultra 48TB Features:

  • Extremely high performance flash memory based network storage.
  • Two independent 100G Ethernet ports operating as separate networks.
  • 12 internal M.2 flash memory cards for up to 48 TB capacity.
  • RAID 0 memory configuration for high performance.
  • RAID 5 support for extra data protection.
  • Blackmagic Cloud sync for global media collaboration.
  • Includes HDMI and SDI monitoring output with live storage status.
  • No subscriptions, no licenses and no user data tracking.
  • Includes software utility for Mac and Windows platforms.
  • Dual redundant AC power supplies for broadcast reliability.
  • Localized for 13 popular languages allowing international use.

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience lightning-fast data transfer with two independent 100G Ethernet ports for ultimate efficiency.
  • Safeguard your valuable data with robust RAID 0 & 5 configurations, ensuring superior reliability.
  • Effortlessly expand your storage capacity with this 48TB Blackmagic Cloud Store Ultra, perfect for large projects.
  • Streamline your workflow; this server offers exceptional data redundancy to protect against loss.
  • Securely manage and access your files, providing peace of mind for all your critical data.
  • Enjoy unparalleled scalability, adapting to your growing storage needs with ease and performance.

What's in the box:

  • Blackmagic Design Cloud Store Ultra (48TB)
  • Blackmagic Design 1 Year Limited Warranty
