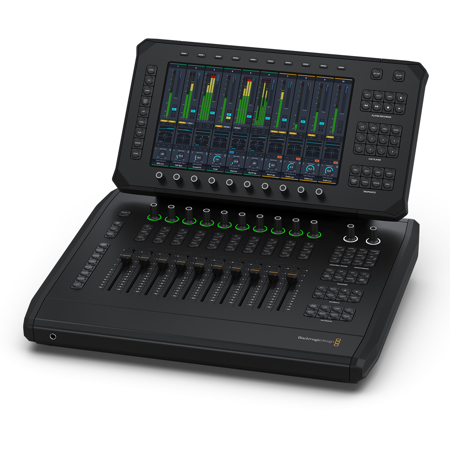

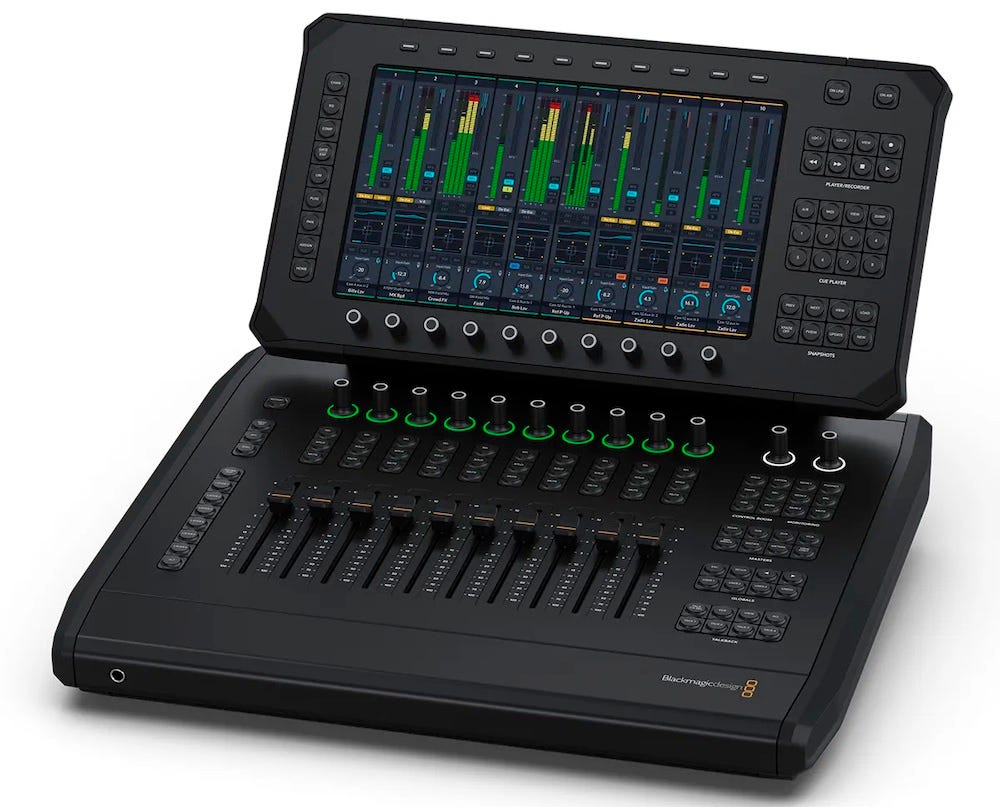

Blackmagic Design Fairlight Live Audio Panel 10

2x 10G RJ45 Ethernet connections

Supports 2110 IP video and audio plus analog audio in and out of panel

1x 1G RJ45 for computer connection, configuration and software updates

1

1x 3-pin XLR for mic level analog audio
1x 5-pin XLR for talkback headset

2x 3-pin XLR for line level analog audio
1x 5-pin XLR for talkback headset
2x 6.35mm headphone jack

1x USB Type-C for computer connection, software configuration and software updates

1x HDMI Type A

1x IEC C14 power input
1x 4-pin XLR 12V DC power input

1x 11.6" 1920 x 1080 LCD touch screen

HD or Ultra HD

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

10 flying faders

10 multi function rotary knobs with ring LED indicators

Select, Solo and Mute for each channel

Processing and input controls for selected channel

10 rotary knobs to adjust associated parameters appearing on lower row of focus and view screens

10 buttons to activate functions or adjust parameters appearing on upper row of focus and view screens

Online mode follows timecode from external source

On Air mode locks panel

Controls for the Player/Recorder support recording performances/rehearsals, playback for Virtual Sound Checks

Cue Player controls - Jingle/Cart player for SFX stingers plus supports MIDI cues for triggering external devices

Store and recall mixer settings and configurations

Controls for source selection and monitor circuit selection

Controls for master views and enabling masters on faders. View Only selection sends metering views to screen, when off selection targets faders

Global controls include forward, back, undo and escape plus access the setup screen and 3 x USER defined buttons

Controls for talkback to 4 groups, direct to channel and ALL. Dedicated cue mode button plus access the talkback setup screen

1x Built in talkback microphone

1x 5-pin XLR headset
1x 3-pin XLR Mic input
2x 6.35mm headphone sockets
2x 3-pin XLR audio monitor outputs

Talkback groups, direct to channel, or all

4

Fairlight Live
Blackmagic OS
Internal software upgrade via updater application

Mac 15.0 Sequoia, Mac 26.0 Tahoe or later.
Windows 11

Fairlight Live software when connected by Ethernet or USB

1x 100 - 240V AC 50/60Hz internal power supply

1x IEC C14 socket
1x 4 pin XLR 12V DC input for external power supply or battery use

32 to 104 Degree F (0 to 40 Degree C)

-4 to 140 Degree F (-20 to 60 Degree C)

0% to 90% non-condensing

18.82 x 17.91 x 10.75" (47.80 x 45.49 x 27.31cm)

9338716010664
