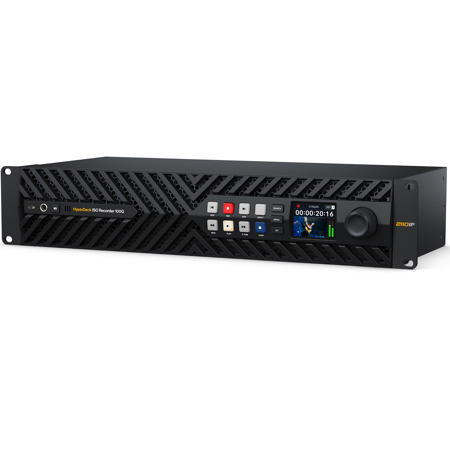

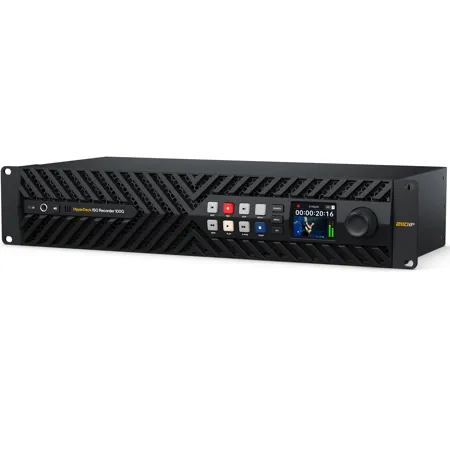

Blackmagic Design Hyperdeck ISO Recorder 100G

SKU: BMDHDECKISO1 MFR: HYPERD/UISO/100G
Earn VIP Reward Points

Key Features

  • Capture pristine 8-channel Ultra HD video, ensuring professional-grade recording quality for every project.
  • Experience seamless network integration with 100G Ethernet, perfect for direct recording to network storage.
  • Achieve unparalleled reliability with this robust video recorder, designed for demanding production environments.
  • Simplify your workflow with intuitive controls, making this video player incredibly easy to use for all skill levels.
  • Its compact design offers excellent portability, allowing you to record high-quality video anywhere inspiration strikes.
  • Benefit from extensive storage capacity options, providing ample space for even your largest Ultra HD video files.
See More Product Details
Pre Order Now?
Free Expedited Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Blackmagic Design Hyperdeck Recorder 100G Specifications

Connections

Connections

Jump to...
  • 100G 2110 IP Networks

    2x 100G QSFP28 connections
    Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks

  • Senders and Receivers per 100G Pair

    8x Ultra HD or 8 HD

  • 100G Ethernet

    2x 100G QSFP28 connections

  • 10G Control Network

    2x 10G RJ45 Ethernet for NMOS control

  • Reference Network

    2x RJ45 Ethernet for 2110 PTP clock

  • 1G Management

    1x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For HyperDeck Setup utility and software updates

  • SDI Monitor Outputs

    2

  • HDMI Monitor Outputs

    1

  • SDI Rates

    1.5G, 3G, 6G, 12G

  • Analog Audio Outputs

    1x 6.35mm headphone jack

  • SMPTE ST 2110 IP Audio Inputs

    16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet

  • SMPTE ST 2110 IP Audio Outputs

    16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet

  • SDI Audio Outputs

    16 channels embedded audio

  • HDMI Audio Outputs

    8 channels embedded audio

  • Computer Interface

    1x USB-C for HyperDeck Setup utility and software updates

  • Power

    2x IEC C14 power inputs

Standards

Jump to...
  • HD Video Standards

    720p50, 720p59.94, 720p60
    1080i50, 1080i59.94, 1080i60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

  • Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

  • 4K DCI Video Standards

    4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI

  • SMPTE Compliance

    SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40, SMPTE 2022-7, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084, SMPTE 2108-1

  • Supported HDMI Formats

    720p50, 720p59.94, 720p60
    1080i50, 1080i59.94, 1080i60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

  • Audio Sampling

    Television standard 24-bit, 48 kHz sample rate

  • Video Sampling

    4:2:2 YUV

  • Color Precision

    10-bit

  • Color Space

    Rec. 709, Rec. 2020

  • HDR Support

    Hybrid Log-Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084

IP Video Compliance

Jump to...
  • SMPTE 2110-20 (Uncompressed Video)

    IGMP v2

  • SMPTE 2110-21 (Traffic Shaping)

    Sender: Narrow
    Receiver: Narrow, Wide Synchronous, Asynchronous

  • SMPTE 2110-30 (PCM)

    Audio Conformance level: Level C

  • SMPTE 2110-40 (Ancillary Data)

    Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata

  • Codec

    Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video

  • Precision Time Protocol

    IEEE 1588-2008 (PTP v2)
    ST 2059-1
    ST 2059-2

  • NMOS IS-04 Discovery and Registration

    v1.3.2
    Peer-to-peer via mDNS/DNS-SD

  • NMOS IS-05 Connection Management

    v1.1.2

  • NMOS BCP-002-01

    Natural Grouping

  • NMOS BCP-004-01

    Receiver capabilities

  • Headphones

    Front panel headphone outputs active monitor

  • Built in Speaker

    Front panel mono speaker outputs active monitor

  • Audio Controls

    Front panel button functions as single press for momentary speaker ON, double press for speaker ON / OFF plus press and hold for volume control using search dial

Processing

Jump to...
  • ProRes Encoder

    Built-in hardware encoder supports up to 8 x Ultra HD simultaneous real-time ProRes encoding

  • Media

    Records over 100G Ethernet to network storage

Supported Codecs

Jump to...
  • Video Codecs

    ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60

  • Audio Codecs

    AAC 2 Channels
    PCM 2, 4, 8 or 16 Channels

Control

Jump to...
  • Built in Control Panel

    16 buttons for transport and device control with search dial featuring electronic clutch and 2.2 inch color display

  • External Control

    RS-422 deck control, 2110 IP video start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP and HTTP Web Media Manager

Displays

Jump to...
  • Displays

    Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel

Software

Jump to...
  • Software Included

    Blackmagic OS
    Blackmagic HyperDeck Setup

  • Internal Software Upgrade

    Loaded at system start, or via Blackmagic HyperDeck Setup using USB port

Operating Systems

Jump to...
  • Operating Systems

    Mac 15.0 Sequoia
    Mac 26.0 Tahoe or later
    Windows 11

Power Requirements

Jump to...
  • Power Supply

    2x 100 - 240V AC 50/60Hz internal power supplies

  • Power Input

    2x IEC C14 sockets

Environmental

Jump to...
  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 113 Degree F (-20 Degree to 45 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...
  • Physical Installation

    2 rack units height

  • Dimensions (L x W x H)

    19 x 9.4 x 3.5" (48.26 x 24 x 8.84cm)

  • UPC Code

    9338716010534

About Blackmagic Design Hyperdeck Recorder 100G

HyperDeck ISO Recorder 100G, a new SMPTE 2110 IP video recorder with 100G Ethernet that lets customers record all their cameras for live production. This means customers can also use DaVinci Resolve for live action replay. HyperDeck ISO Recorder 100G uses a single 100G Ethernet connection to connect all 8 video channels, plus it records high-quality Apple ProRes video to network storage via 100G Ethernet. This makes it an extremely advanced design that's built for the future of broadcast.

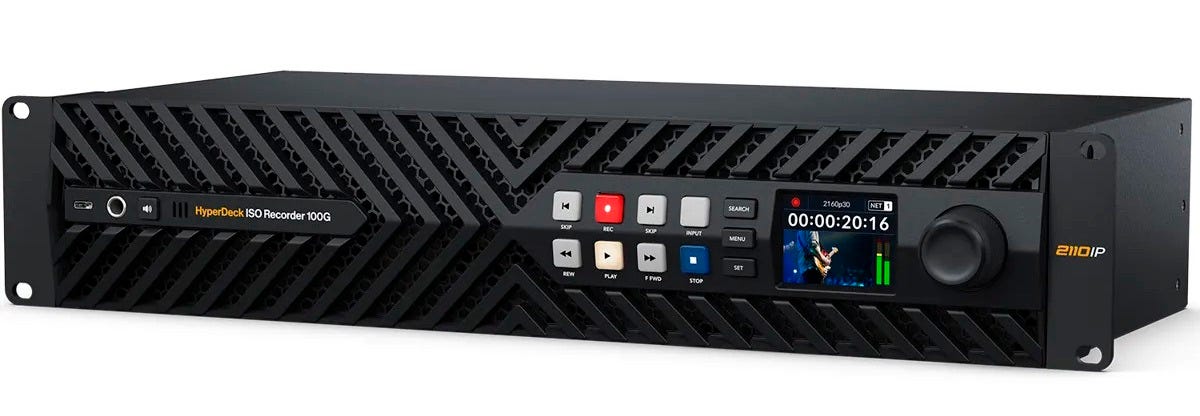

HyperDeck ISO Recorder 100G

At the center of any post production workflow is shared network storage. That's why HyperDeck ISO Recorder 100G records to network storage using extremely fast 100G Ethernet. Only 100G Ethernet can record 8 channels of ProRes HQ in Ultra HD.
HyperDeck ISO Recorder 100G also has two dedicated 100G data ports for redundancy. Recording to network disks is easy, just browse the network storage servers and select the desired folder. Now editors can simply log into the network storage and access all their media in one location. DaVinci Resolve can even edit media while it's being recorded. Plus with DaVinci Resolve's broadcast play-out features, it's also an amazing live action replay solution.

Blackmagic Design Hyperdeck ISO Recorder 100G Features:

  • Records 8 channels of Ultra HD video.
  • Designed for live action replay with DaVinci Resolve.
  • Touch screen user interface with deck controls.
  • Connects to SDI with Blackmagic SDI Expander 8x12G.
  • Includes 100G Ethernet for recording to network storage.
  • Supports Blackmagic Cloud Store Ultra and Media Dock Ultra.
  • Includes 2 redundant SMPTE 2022-7 100G Ethernet connections.
  • Redundant design includes dual Ethernet and dual AC supplies.
  • Includes traditional broadcast deck controls.
  • Records to Apple ProRes files for extremely high quality.
  • Includes RS-422 control for broadcast automation systems.
  • Runs Blackmagic OS for high reliability.
  • Localized for 13 popular languages.

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture pristine 8-channel Ultra HD video, ensuring professional-grade recording quality for every project.
  • Experience seamless network integration with 100G Ethernet, perfect for direct recording to network storage.
  • Achieve unparalleled reliability with this robust video recorder, designed for demanding production environments.
  • Simplify your workflow with intuitive controls, making this video player incredibly easy to use for all skill levels.
  • Its compact design offers excellent portability, allowing you to record high-quality video anywhere inspiration strikes.
  • Benefit from extensive storage capacity options, providing ample space for even your largest Ultra HD video files.

What's in the box:

  • Blackmagic Design Hyperdeck ISO Recorder 100G
  • Welcome Wallet with QR Code for Software Download
  • Blackmagic Design 1 Year Limited Warranty
