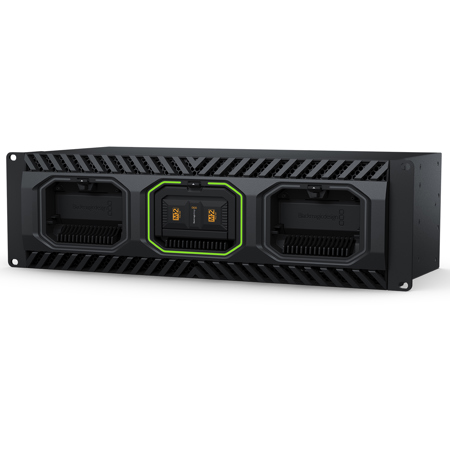

Blackmagic Design Media Dock Ultra

SKU: BMDMEDDOCKL MFR: MEDDOCKULTRA
Earn VIP Reward Points

Key Features

  • Experience lightning-fast data transfer with dual 100G Ethernet ports for your Blackmagic Media Dock Ultra.
  • Effortlessly expand your storage and streamline workflows with this high-performance hard drive enclosure.
  • Enjoy broad compatibility, connecting seamlessly with various devices for versatile data management.
  • Designed for durability, ensuring your valuable data is protected in a robust and reliable enclosure.
  • Simplify your setup with easy-to-use features, making data access and management a breeze.
  • Enhance your creative projects with portable and efficient storage solutions for on-the-go professionals.
See More Product Details
Pre Order Now?
Free Expedited Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Blackmagic Design Media Dock Ultra Specifications

Connections

Connections

Jump to...
  • 100G Ethernet

    2x 100G QSFP28 connections
    Each 100G port can be assigned an independent IP address and subnet mask for up to 200G bandwidth and load balancing when used with a managed switch

  • 1G Management

    1x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For Cloud Store Setup utility and software updates

  • SDI Monitor Outputs

    2

  • HDMI Monitor Outputs

    1

  • SDI Rates

    1.5G, 3G

  • Computer Interface

    1x USB-C for Cloud Store Setup utility and software updates

  • Power

    2x IEC C14 power inputs

File Sharing Protocol

Jump to...
  • Protocol

    NFS (HFS+ formatted disks only)
    SMB

  • Computer Connections

    50 max

Cloud Synchronization

Jump to...
  • Cloud Synchronization

    Blackmagic Cloud
    Amazon Web Services S3 sync

Storage

Jump to...
  • Storage Type

    Up to 3 Blackmagic Media Modules

  • External Storage Format

    Blackmagic (formatted in camera)

Displays

Jump to...
  • Status Indicator

    LED bezel indicator lights around media module bays

  • Monitor Out Displays

    Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph

  • SDI Monitor Out Standards

    1080p50, 1080p59.94, 1080p60

  • HDMI Monitor Out Standards

    1080p50, 1080p59.94, 1080p60

Device Control

Jump to...
  • External Control

    USB-C or Ethernet for configuration and software updates

Software

Jump to...
  • Software Included

    Blackmagic Cloud Setup Utility
    Blackmagic Proxy Generator Lite
    Internal software upgrade via Blackmagic Cloud Setup using USB-C port

Operating Systems

Jump to...
  • Operating Systems

    Mac 15.0 Sequoia
    Mac 26.0 Tahoe or later
    Windows 10, 64-bit
    Windows 11

Power Requirements

Jump to...
  • Power Supply

    2x 100 - 240V AC 50/60Hz internal power supplies

  • Power Inputs

    2x IEC C14 sockets

Environmental

Jump to...
  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...
  • Physical Installation

    3 rack units

  • Dimensions (L x W x H)

    19 x 8.9 x 5.2" (48.26 x 22.7 x 13.3cm)

About Blackmagic Design Media Dock Ultra

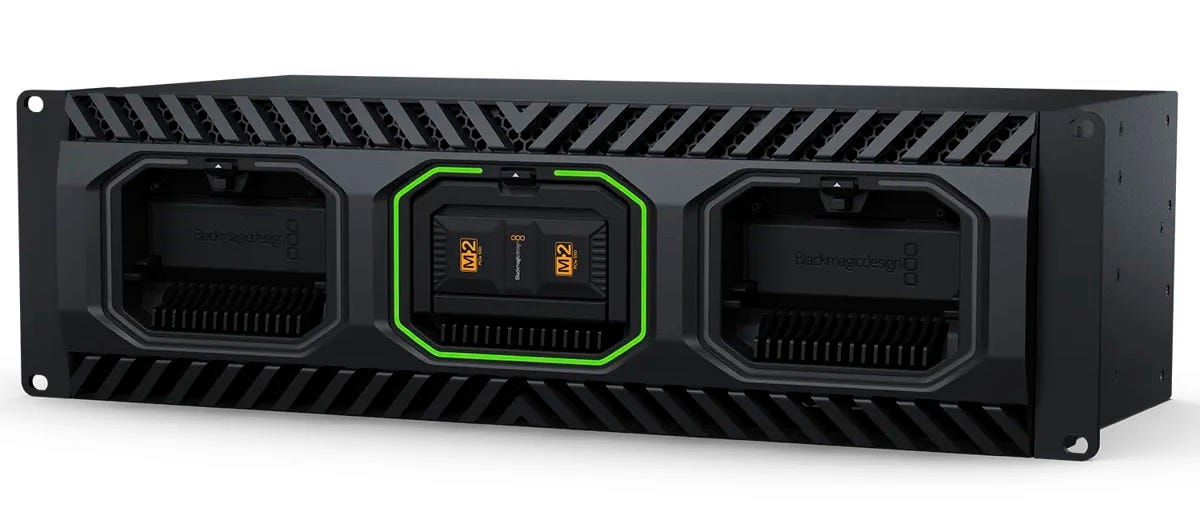

Blackmagic Media Dock Ultra, a new high performance dock for Blackmagic Media Modules with two fully independent 100G Ethernet ports. It also features SDI and HDMI status monitoring and Blackmagic Cloud sync that lets customers use Blackmagic Media Modules as extremely high performance removable storage.

Blakcmagic Hyperdeck ISO Recorder 100G

The Blackmagic Media Dock models use the same high speed media modules as Blackmagic URSA Cine cameras, so customers get high performance storage that can be instantly removed. That’s perfect for editing media from URSA Cine cameras directly from the modules without copying files. It’s also a perfect solution for recording from the HyperDeck ISO Recorder 100G, as customers can instantly unplug and take the media module with customers as soon as a live production ends. There are two powerful models, one with four 10G Ethernet connections and another with two separate 100G Ethernet connections. They even sync to Blackmagic Cloud.

Blackmagic Design Media Dock Ultra Features:

  • Extremely high performance rack mount dock for Blackmagic Media Modules.
  • Two independent 100G Ethernet ports for simultaneous recording and editing.
  • Blackmagic Cloud sync for global media collaboration.
  • Includes SDI and HDMI monitoring output with live storage status.
  • Front-to-back cooling with multiple fans for quiet operation.
  • Dual redundant AC power supplies for broadcast reliability.
  • Localized for 13 popular languages allowing international use.

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience lightning-fast data transfer with dual 100G Ethernet ports for your Blackmagic Media Dock Ultra.
  • Effortlessly expand your storage and streamline workflows with this high-performance hard drive enclosure.
  • Enjoy broad compatibility, connecting seamlessly with various devices for versatile data management.
  • Designed for durability, ensuring your valuable data is protected in a robust and reliable enclosure.
  • Simplify your setup with easy-to-use features, making data access and management a breeze.
  • Enhance your creative projects with portable and efficient storage solutions for on-the-go professionals.

What's in the box:

  • Blackmagic Design Media Dock Ultra
  • Welcome Wallet with QR Code for Software Download
  • Blackmagic Design 1 Year Limited Warranty
