Blackmagic Design SDI Expander 8x12G Converter
SKU: BMDSDIEXP812 MFR: CONVNVIPP/EX10012G8
Earn VIP Reward PointsKey Features
- Seamlessly convert various video formats for broad compatibility across devices.
- Enjoy crystal-clear visuals with robust resolution support for all your content.
- Experience real-time performance thanks to ultra-low latency video conversion.
- Rely on its exceptional reliability for consistent, high-quality video output.
- Effortlessly set up and use with its intuitive design, perfect for any user.
- Built with premium materials, ensuring superior durability and lasting performance.
Pre Order Now?
Free Expedited Shipping
See Options
1
Need help? Ask our experts.
Overview
Compare
Specs
Protection

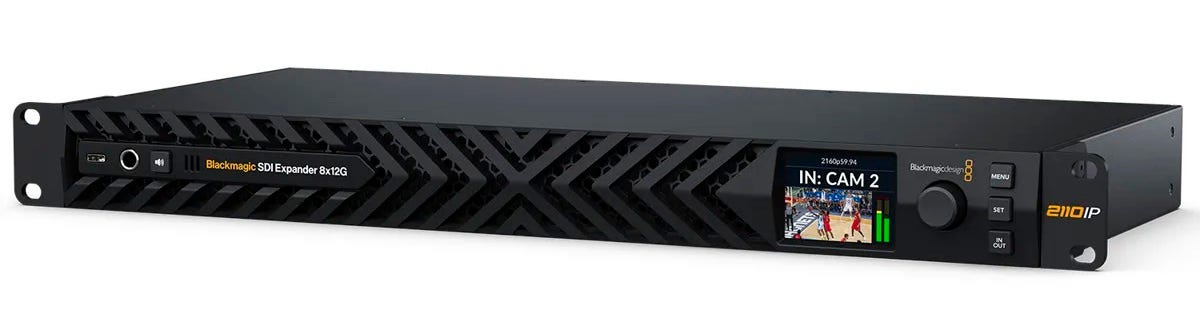

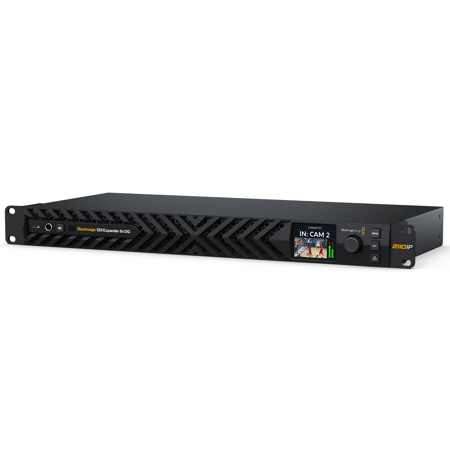

About Blackmagic Design SDI Expander 8x12G
Blackmagic SDI Expander 8x12G is a new converter that lets customers connect all their 12G-SDI gear to the latest 100G Ethernet SMPTE-2110 IP systems. The converter supports 8 bi-directional 12G-SDI connections and has 2 separate 100G Ethernet connections allowing SMPTE-2022-7 redundancy.
It converts 8 independent channels of 12G-SDI to SMPTE-2110, while simultaneously converting a separate set of 8 channels of SMPTE-2110 back to 12G-SDI. That’s 16 channels of conversion in a single rack unit. The SMPTE-2110 connections use two 100G Ethernet ports for full SMPTE-2022-7 redundancy. There is also a separate NMOS control Ethernet port and dual redundant AC power supplies for reliable broadcast operation.
Blackmagic Design SDI Expander 8x12G Features:
- Connect 12G-SDI gear to 100G Ethernet SMPTE-2110 IP systems.
- Supports 8 bi-directional connections and SMPTE-2022-7 redundancy.
- 8 x 12G-SDI inputs and 8 x 12G-SDI outputs in a single 1RU design.
- Redundant 100G Ethernet for full SMPTE-2022-7 compliance.
- SDI connections switch between SD, HD, and Ultra HD.
- Includes dedicated NMOS connection for routing IP sources.
- Front panel LCD for monitoring of video inputs and outputs.
- Front panel speaker and headphone for audio monitoring.
- Dual redundant AC power supplies for broadcast reliability.
- Localized for 13 popular languages allowing international use.
Warranty Information
This product has a limited warranty of 12 months.
