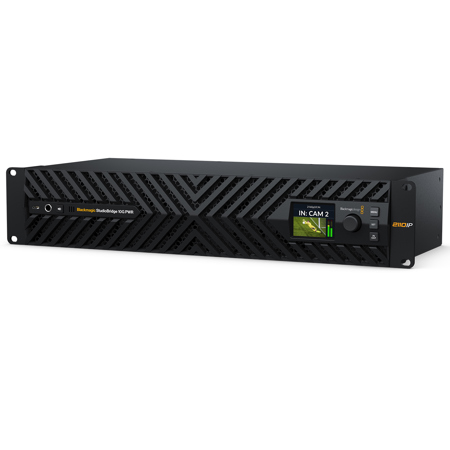

Blackmagic Design StudioBridge 10G PWR Converter
See all Blackmagic Design items
New Arrival

Blackmagic Design StudioBridge 10G PWR Converter

SKU: BMDSTUDBRD10 MFR: STUDBRD10G
Be the first to review this item
$2,745.00
OR
$229/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Seamlessly convert video formats for professional broadcasts and live events with ease.
  • Experience crystal-clear resolution support, ensuring your content looks its absolute best.
  • Enjoy low latency performance, perfect for real-time monitoring and critical productions.
  • Effortlessly connect diverse devices thanks to broad input/output compatibility.
  • Achieve smooth, fluid motion with excellent frame rate conversion for dynamic visuals.
  • Rely on robust build quality for consistent, dependable operation in any studio setting.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Blackmagic Design StudioBridge 10G PWR Specifications

Connections

Connections

Jump to...

  • 100G 2110 IP Networks

    2x 100G QSFP28 connections
    Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks

  • 10G 2110 IP Networks

    8x 10G PoE++ RJ45 connections

  • Senders and Receivers per 100G Pair

    8x Ultra HD or HD

  • 1G Control Network

    1x RJ45 for NMOS control, configuration and software updates

  • SMPTE ST 2110 IP Audio Inputs

    16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet

  • SMPTE ST 2110 IP Audio Outputs

    16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet

  • Multi Rate Support

    Auto detection of HD and Ultra HD

  • Computer Interface

    1x USB-C for configuration and firmware updates

  • Power

    2x IEC C14 power inputs

Video Standards

Jump to...

  • HD Video Standards

    720p50, 720p59.94, 720p60
    1080i50, 1080i59.94, 1080i60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080PsF25, 1080PsF29.97, 1080PsF30

  • Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

  • SMPTE Compliance

    SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40, SMPTE 2022-7

  • Color Precision

    10-bit 4:2:2 YUV

  • Color Space

    Rec. 709, Rec. 2020

  • SDI Auto Switching

    Automatically detects HD and Ultra HD

IP Video Compliance

Jump to...

  • SMPTE 2110-20 (Uncompressed Video)

    IGMP v2

  • SMPTE 2110-21 (Traffic Shaping)

    Sender: Narrow
    Receiver: Narrow, Wide Synchronous, Asynchronous

  • SMPTE 2110-30 (PCM)

    Audio Conformance level: Level C

  • SMPTE 2110-40 (Ancillary Data)

    Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata

  • Codec

    Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video

  • Precision Time Protocol

    IEEE 1588-2008 (PTP v2)
    ST 2059-1
    ST 2059-2

  • NMOS IS-04 Discovery and Registration

    v1.3.2
    Peer-to-peer via mDNS/DNS-SD

  • NMOS IS-05 Connection Management

    v1.1.2

  • NMOS BCP-002-01

    Natural Grouping

  • NMOS BCP-004-01

    Receiver capabilities

Displays

Jump to...

  • Display

    Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel

Control

Jump to...

  • Built in Control Panel

    2.2 inch color display, 3 button control panel and spin knob for source and destination setup and menu settings

  • External Control

    RJ-45 Ethernet and USB-C

Operating Systems

Jump to...

  • Operating Systems

    Mac 15.0 Sequoia
    Mac 26.0 Tahoe or later
    Windows 11

Power Requirements

Jump to...

  • Power Supply

    2x 100 - 240V AC 50/60Hz internal power supplies

  • Power Inputs

    2x IEC C14 sockets

  • Power Outputs

    8x 90 W supply to compatible downstream PoE products

  • Power Usage

    Usage TBC (including 8 x 90 W PoE supply to downstream devices)

Environmental

Jump to...

  • Operating Temperature

    41 Degree to 104 Degree F (5 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 113 Degree F (-20 Degree to 45 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...

  • Physical Installation

    2 rack units

  • Dimensions (L x W x H)

    19 x 8.66 x 3.48" (48.26 x 22 x 8.8cm)

About Blackmagic Design StudioBridge 10G PWR

The Blackmagic StudioBridge 10G PWR is designed to bridge low-cost single link 10G Ethernet SMPTE-2110 connections into high-end redundant 100G Ethernet based systems.

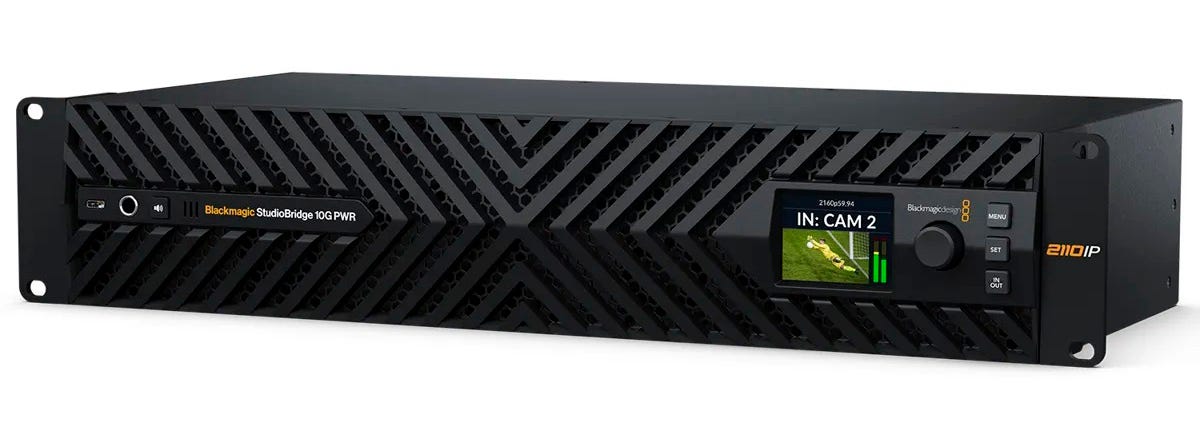

Blackmagic Studiobridge 10G PWR

It converts and combines 8 channels of 10G Ethernet into a redundant pair of 100G Ethernet connections. That means customers can plug in 8 separate 10G Ethernet Ultra HD devices. Each 10G Ethernet port has a massive 90W of PoE++ power, so customers can power equipment such as converters and cameras directly from their Ethernet connections.

Blackmagic Design Studiobridge 10G PWR Features:

  • Bridges 8 x 10G Ethernet connections into redundant 100G Ethernet systems.
  • Redundant 100G Ethernet for full SMPTE-2022-7 compliance.
  • Supports 90W of PoE++ power on each 10G Ethernet port.
  • Includes dedicated NMOS connection for routing IP sources.
  • 2RU rack mount design with front-to-back cooling.
  • Front panel LCD for monitoring of video inputs and outputs.
  • Front panel speaker and headphone for audio monitoring.
  • Dual redundant AC power supplies for broadcast reliability.
  • Localized for 13 popular languages allowing international use.

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Seamlessly convert video formats for professional broadcasts and live events with ease.
  • Experience crystal-clear resolution support, ensuring your content looks its absolute best.
  • Enjoy low latency performance, perfect for real-time monitoring and critical productions.
  • Effortlessly connect diverse devices thanks to broad input/output compatibility.
  • Achieve smooth, fluid motion with excellent frame rate conversion for dynamic visuals.
  • Rely on robust build quality for consistent, dependable operation in any studio setting.

What's in the box:

  • Blackmagic Design StudioBridge 10G PWR Converter
  • Welcome Wallet with QR Code for Software Download
  • Blackmagic Design 1 Year Limited Warranty
