Blackmagic Design URSA Cine Studio Viewfinder
See all Blackmagic Design items
New Arrival

Blackmagic Design URSA Cine Studio Viewfinder

SKU: BMDURSA12KRF MFR: URSA12KRF
Be the first to review this item
$1,645.00
OR
$138/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience stunning clarity with a 7" 1920 x 1200 resolution screen, perfect for critical focusing.
  • Enjoy exceptional visibility even in bright conditions thanks to 2000 nits of screen brightness.
  • Achieve precise shot composition with a high-contrast display, enhancing your video viewing experience.
  • Benefit from a durable build quality, ensuring reliability for professional video production workflows.
  • Effortlessly connect and power your viewfinder via the versatile USB-C with locking connector.
  • Gain seamless control and metadata access, making this viewfinder compatible with URSA Cine cameras.
See More Product Details
Pre Order Now?
Free Expedited Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Protection

Reviews about this item

Review Summary

Blackmagic Design URSA Cine Viewfinder Specifications

Connections

Connections

Jump to...

  • USB-C with Locking Connector

    Video, power, metadata, camera control and software updates

  • Screen Type

    7" high brightness TFT LCD

  • Screen Brightness

    2000 nits

  • Power

    5.5mm barrel power input for external +12V DC power

Features

Jump to...

  • Display Size

    7" (17.8cm)

  • Display Resolution

    1920px x 1200px

  • Display Type

    LCD capacitive touchscreen

  • Display Brightness

    2000 nits

  • Frame Rates

    Up to 60fps

  • Handles

    Built in grab handles for positioning the monitor independently from the camera

  • Position Adjustment Options

    Articulated yoke with variable tension pivots and grab handles for forward, backward, up, down, pan and tilt adjustments

  • Sunshade

    Detachable and foldable sunshade

  • Mounting Options

    Quick release V-lock mounting bracket for attaching viewfinder to URSA Cine 12K body

  • Tally

    Large talent facing LED tally light with customizable perspex camera numbers

  • Metadata Support

    Viewfinder supports all camera metadata and full Blackmagic OS camera control

Control

Jump to...

  • Controls

    Touch screen with heads up display and full camera control, Push button dial for settings and navigating menus, Customizable short cut function buttons, Dedicated brightness, contrast and peaking knobs

  • On Screen Controls

    Tap screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate and camera menus

  • Button Controls

    Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions plus BACK button

  • Function Button Toggle

    Clean Feed, Status Text, Display LUT, Frame Guides, Focus Assist, False Color, Zebra, Grid, Safe Area Guide, Off Speed Rec, Focus Zoom, Focus, Record, Auto White Balance, Color Bars, Playback, False Color + Zebra, OIS, Stream, Still

Mounting

Jump to...

  • Mounting

    Includes quick release VLock bracket, attaches to mounting surfaces using 2 x 1/4-20 screws

Compatible Cameras

Jump to...

  • Compatible Cameras

    Blackmagic URSA Cine 12K LF 100G
    Blackmagic URSA Cine 12K LF
    Blackmagic URSA Cine 17K 65
    Blackmagic URSA Cine Immersive 100G
    Blackmagic URSA Cine Immersive

Operating Systems

Jump to...

  • Operating Systems

    Mac 15.0 Sequoia
    Mac 26.0 Tahoe or later
    Windows 11

Power Requirements

Jump to...

  • Power Requirements

    Powered over USB-C. An additional +12V DC input allows for supplementary power when USB-C power is insufficient

  • Power Input

    5.5mm barrel connector with locking thread

Environmental

Jump to...

  • Operating Temperature

    0 Degree to 40 Degree C (32 Degree to 104 Degree F)

  • Storage Temperature

    -20 Degree to 60 Degree C (-4 Degree to 140 Degree F)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...

  • Dimensions (L x H)

    11.97 x 9.17" (30.4 x 23.3cm)

Designed For Use With:

  • Black Magic

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Blackmagic Design URSA Cine Viewfinder

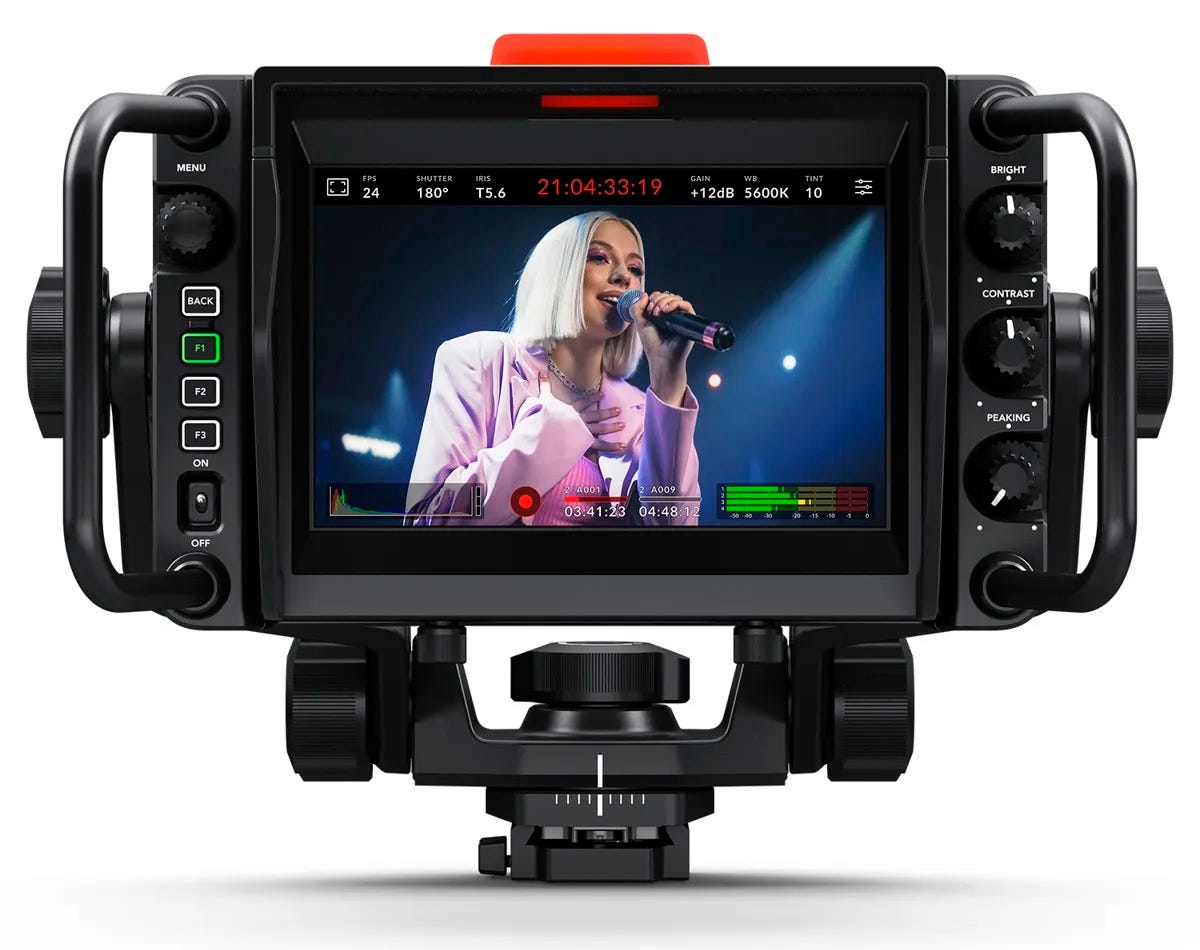

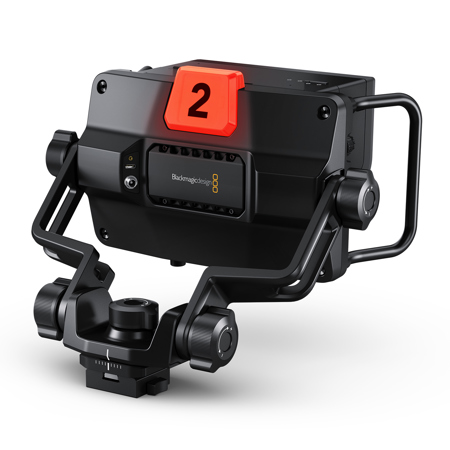

Blackmagic URSA Cine Studio Viewfinder is a large 7" HDR touchscreen viewfinder with full camera control, designed for use with URSA Cine in live production environments. It combines a high brightness HDR touchscreen with custom function buttons and physical knobs for brightness, contrast and focus peaking. On screen overlays include focus peaking, frame guides, histograms and more, with full touchscreen access to all camera settings. Includes removable sunshade and connects via a single USB-C cable for video, power and camera control.

Blackmagic URSA Cine Studio Viewfinder

Blackmagic Design URSA Cine Studio Viewfinder Features:

  • High brightness HDR touchscreen.
  • Custom function buttons and physical knobs.
  • Optional PL, locking EF, LPL and B4 broadcast lens mounts.
  • High speed Wi-Fi, 100G Ethernet or mobile data for network connections.

Warranty Information

This product has a limited warranty of 12 months.

Compatibility

See Full Compatibility List

Designed for use with: Black Magic .

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience stunning clarity with a 7" 1920 x 1200 resolution screen, perfect for critical focusing.
  • Enjoy exceptional visibility even in bright conditions thanks to 2000 nits of screen brightness.
  • Achieve precise shot composition with a high-contrast display, enhancing your video viewing experience.
  • Benefit from a durable build quality, ensuring reliability for professional video production workflows.
  • Effortlessly connect and power your viewfinder via the versatile USB-C with locking connector.
  • Gain seamless control and metadata access, making this viewfinder compatible with URSA Cine cameras.

What's in the box:

  • Blackmagic URSA Cine Studio Viewfinder
  • Monitor Mounting Plate
  • Welcome Wallet with QR Code for Software Download
  • Blackmagic Design 1 Year Limited Warranty
