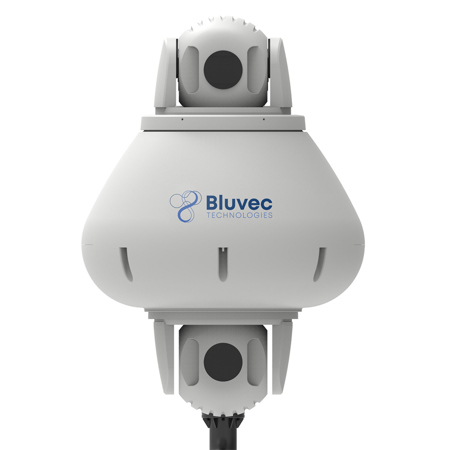

Bluvec Blucase S1200 Stationary Optical Sensor

SKU: BLBCS1200 MFR: BLUCAM S1200

Key Features

  • Enhance drone safety with the Blucase S1200, offering rapid target inspection.
  • Visual sensor detects drones up to 1500m, ensuring robust drone detection.
  • Achieve precise direction finding with +/- 1 Degree accuracy for drone security.
  • Monitor a full 360 Degree horizontal range, vital for complete drone surveillance.
  • Operates in extreme conditions, from -22F to 149F, ensuring drone defense.
  • Integrates easily via LAN to your IT, offering seamless drone monitoring setup.
See More Product Details
Special Order?Estimated to Ship: 09/10/2025
Calculate Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Bluvec Blucase S1200 Stationary Optical Sensor Specifications

  • Technology

    Rapid Target Inspection (RTI)

  • Detection method

    Visual sensor

  • Detection distance (ideal conditions)

    Up to 600m for small UAV (e.g. DJI Mavic) & 1500m for medium-sized UAV (e.g. DJI M300)

  • Accuracy of direction finding

    +/- 1 Degree

  • Angular range

    Horizontal 360 Degree, vertical 35 Degree (2 tiers) or 50 Degree (3 tiers): 28 second scanning cycle (2 tiers)

  • Focal length

    6mm to 128mm

  • Ingress protection rating

    IP65

  • Operating temperature

    -22 Degree F to +149 Degree F (-30 Degree C to +65 Degree C)

  • Operating humidity

    <90%

  • Power supply

    AC 110 V or 220 V (adaptable with battery)

  • Connectivity

    Via LAN to existing IT infrastructure

  • Configuration, operation, alarms

    Bluvec JUICE

  • Software updates

    Local or cloud

  • Input

    RJ-45 Port

  • Data storage

    Local or cloud subscription

  • System integration

    GraphQL and RESTful API Interface

  • Dimensions (H x Dia.)

    43.81 x 16.37" (1113 x 416mm)

  • Weight

    Stand included: 55.11 lbs (25kg)

About Bluvec Blucase S1200 Stationary Optical Sensor

A second layer of security with an optical sensor
RF-silent or dark drones are a major challenge for many counter-drone systems. Innovative drone detection solutions are required to address this blind spot.

Bluvec proudly presents the Blucam S1200, an AI-powered optical sensor that constantly scans the surroundings for UAV threats.

Through Bluvec's Rapid Target Inspection (RTI) technology, Blucam S1200 identifies targets purely based on image pixels. It is trained to differentiate between drones and other flying objects, such as birds and aircraft. The Blucam S1200 preserves visual evidence by providing real-time images and video recordings of detected targets.

The Blucam S1200 offers 360 Degree passive detection, intelligent identification, target positioning, and drone tracking capabilities. It can function as a standalone unit without guidance from other radars or sensors. It can also seamlessly integrate with multiple Blucams S1200 or Blusensors S4000 to provide extended coverage.

Bluvec's optical sensor is a great solution for correctional facilities, airports, commercial settings, critical infrastructure, military settings, and other industries.

RTI - The Technology Behind
Our powerful camera network employs AI-assisted scanning strategies to pinpoint long-distance objects for target inspection quickly. Due to its highly specialized training, the camera can detect targets that are only a few pixels in size.

Bluvec Blucase S1200 Stationary Optical Sensor Features

  • Powered by AI
  • Optical and infrared capabilities
  • Easy integration and cloud control
  • Detection of RF-silent or dark drones
  • 360 Degree passive detection
  • Onsite & remote controlled
  • Visual evidence recorded
  • Aircraft detection
  • Modular or standalone deployment

Key Features

  • Enhance drone safety with the Blucase S1200, offering rapid target inspection.
  • Visual sensor detects drones up to 1500m, ensuring robust drone detection.
  • Achieve precise direction finding with +/- 1 Degree accuracy for drone security.
  • Monitor a full 360 Degree horizontal range, vital for complete drone surveillance.
  • Operates in extreme conditions, from -22F to 149F, ensuring drone defense.
  • Integrates easily via LAN to your IT, offering seamless drone monitoring setup.

What's in the box:

  • Bluvec Blucase S1200 Stationary Optical Sensor
  • Stand
  • Bluvec 1 Year Limited Warranty
