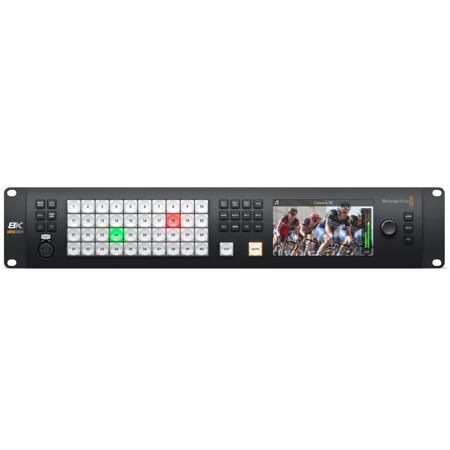

Blackmagic Design ATEM Constellation 8K Powerful Switcher

SKU: BMATEMCL8K MFR: SWATEMSCN4/1ME4/8K
Earn VIP Reward Points

Key Features

  • Experience pristine video quality with this switcher's 10-bit color precision.
  • Enjoy versatile compatibility with 40 inputs supporting up to Ultra HD formats.
  • Achieve real-time streaming with low processing delay, even in stunning 8K.
  • Simplify your workflow using the user-friendly ATEM Software Control Panel.
  • Ensure reliable connectivity with auto SDI switching for seamless transitions.
  • Create captivating content with advanced chroma keyers for broadcast-quality effects.
See More Product Details
FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?DANIEL F : I had purchased many things from Adorama. This is a quality component for my business and I know Adorama will get it to me . .

Reviews about this item

Review Summary

2022-06-19T18:49:14

Rated 5 out of 5

The BEST Choice of All!

The Constellation 8k is the BEST future proof option for today's productions. complete 12G at a minimum and 8K to the MAX Mixing Live content. Supersource x 2. There are a whole lot of things you can do with this 4ME Device that no one talks about. How about Stingers using hyperdeck 444 Video. When you bring it all together with macros you get a powerful control over your preprogrammed workflow! Thank you Adorama for having this device when I could not find it anywhere.

Daniel F.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design ATEM Constellation 8K Specifications

Connections

Connections

Jump to...
  • Total Video Inputs

    40x Up to Ultra HD / 10x in 8K

  • Total Video Outputs

    28x Up to Ultra HD / 7x in 8K

  • Total Aux Outputs

    24x Up to Ultra HD / 6x in 8K

  • SDI Rates

    1.5G, 3G, 6G, 12G

  • Total Audio Inputs

    2x Balanced 1/4" Jack, 1x 32 stereo channel BNC MADI in

  • Total Audio Outputs

    2x Balanced 1/4" Jack, 2x 32 stereo channel BNC MADI out

  • Timecode Connections

    No

  • Reference Input

    Tri-Sync or Black Burst

  • Video Input Re-sync

    On all 40 inputs

  • Frame rate and format converters

    On all 40 inputs

  • SDI Video Inputs

    40x 10-bit 720p, 1080i, 1080p, 2160p and 10x 4320p switchable

  • Extra Audio Outputs

    1x 5 pin XLR Talkback

  • SDI Audio Outputs

    2 Ch embedded into SDI output on all outputs

  • Extra Audio Inputs

    1x 5 pin XLR Talkback

  • SDI Program Outputs

    Any of the 24 SDI outputs

  • Down Converted SDI Program Output

    No

  • SDI Preview Outputs

    Any of the 24 SDI outputs

  • Total Multi Views

    4x Up to Ultra HD / 1x in 8K

  • SDI Multi View Outputs

    4

  • HDMI Multi View Outputs

    No

  • Control Panel Connection

    Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network

  • Internal Timecode Generator

    Yes

  • Tally Output

    Added via Ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)

  • Computer Interface

    1x USB 2.0 port

Standards

Jump to...
  • SD Video Standards

    No

  • HD Video Standards

    720p50, 720p59.94
    1080i50, 1080i59.94
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94

  • Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94

  • 8K Video Standards

    4320p23.98, 4320p24, 4320p25, 4320p29.97, 4320p50, 4320p59.94

  • SDI Compliance

    SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10, SMPTE 2082-12

  • Video Sampling

    4:2:2

  • Color Precision

    10-bit

  • Color Space

    REC 601, REC 709, REC 2020

  • SDI Auto Switching

    Automatically detects between level A and level B 3G-SDI, 6G-SDI and 12G-SDI. Requires 2SI in 8K mode

Special Functions

Jump to...
  • Upstream Keyers

    16x Up to Ultra HD / 4x in 8K with Chroma/Linear/Luma key

  • Downstream Keyers

    4x Up to Ultra HD / 2x in 8K

  • Advanced Chroma Keyers

    16x Up to Ultra HD / 4x in 8K

  • Talkback Support

    Yes

  • Mix Minus Support

    Yes

  • Linear/Luma Keyers

    21x Up to Ultra HD / 7x in 8K

  • Transition Keyer (Stinger/DVE)

    4 Stinger, 4 DVE

  • Total Number of Layers

    28x Up to Ultra HD / 7x in 8K

  • Pattern Generators

    21x Up to Ultra HD / 9x in 8K

  • Color Generators

    2

  • DVE with 3D Borders & Drop Shadow

    4x Up to Ultra HD / 1x in 8K

  • Control Panel

    Front fascia emergency switching, software or optional hardware panel

  • Routable Windows

    64x Up to Ultra HD / 16x in 8K

  • Tally

    Red for program and green for preview indication

  • Windows Source Labels

    Yes

Multi View Monitoring

Jump to...
  • Multi View Monitoring

    4x 16 Multi View pattern options for up to 64 total views

  • Multi View Video Standard

    Select HD, Ultra HD or 8K

Media Player

Jump to...
  • Media Players

    4x Up to Ultra HD / 1x in 8K

  • Channels

    Fill and key for each media player

  • Media Pool Still Image Capacity

    64x Up to Ultra HD / 24x in 8K with fill and key

  • Media Pool Clip Capacity

    4x Up to Ultra HD / 2x in 8K with fill and key

  • Media Player Clip Length in 720 HD

    3200 frames

  • Media Player Clip Length in 1080 HD

    1600 frames

  • Media Player Clip Length in Ultra HD

    400 frames

  • Media Player Clip Length in 8K

    100 frames

  • Media Pool Still Image Format

    PNG, TGA, BMP, GIF, JPEG and TIFF

  • Media Pool Video File Format

    TGA Sequence

  • Media Pool Audio File Format

    WAV, MP3 and AIFF

Display

Jump to...
  • Interface

    Minimum monitor resolution of 1366 x 768

  • Front Panel

    Built in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button

Processing

Jump to...
  • Processing Delay

    < 7 lines in up to Ultra HD / in 10 lines in 8K

  • Down Conversion

    No

  • Audio Mixer

    156 Channel mixer
    Selectable On/Off/Audio-Follow-Video
    Level and Peak metering
    Master gain control
    6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter

Software

Jump to...
  • Control Panel Included

    ATEM Software Control Panel included free for Mac 10.13 High Sierra, Mac 10.14 Mojave or later and Windows 8.1 64-bit or Windows 10 64-bit

  • Configuration

    Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis

  • Software Updates

    Using USB 2.0 connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility

Operating Systems

Jump to...
  • Mac

    Mac 10.13 High Sierra, Mac 10.14 Mojave or later

  • Windows

    Windows 8.1 64-bit or Windows 10 64-bit

Power Requirements

Jump to...
  • Power Supply

    2x Internal 100 - 240 AC

  • Power Usage

    300W

Physical Installation

Jump to...
  • Physical Installation

    2 Rack Unit Size

Environmental

Jump to...
  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Relative Humidity

    0% to 90% non-condensing

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

General

Jump to...
  • Dimensions

    19 x 13.23 x 3.54" (48.26 x 33.60 x 8.99cm)

  • Weight

    18.52 lbs (8.40kg)

  • UPC Code

    9338716006186

3 Accessories for Blackmagic Design ATEM Constellation 8K Powerful Switcher

  • All Accessories (3)
  • Power Supply & Accessories (3)

About Blackmagic Design ATEM Constellation 8K

FEATURED REVIEWS

The BEST Choice of All!

By Daniel F.

The Constellation 8k is the BEST future proof option for today's productions. complete 12G at a minimum and 8K to the MAX Mixing Live content. Supersource x 2. There are a whole lot of things you can do with this 4ME Device that no one talks about. How about Stingers using hyperdeck 444 Video. When you bring it all together with macros you get a powerful control over your preprogrammed workflow! Thank you Adorama for having this device when I could not find it anywhere.

Blackmagic Design ATEM Constellation 8K

Cover large-scale events and festivals and create your programming on the go with the new Atem Constellation by Blackmagic Design. This massive switcher is designed with music festivals and concerts in mind with its myriad of features. The Atem Constellation 8K has a compact 2RU rack mount design and a built-in control panel for operating the switcher during emergencies. It has an integrated control panel on the front with 40 12G-SDI inputs and 24 AUX 12G-SDI outputs. Each of the inputs has individual standard converters for seamless input switching regardless of their format. The Atem Constellation 8K has a large LCD to easily view the different program outputs and change the settings using the screen menus. It also has a built-in Fairlight audio mixer that supports 80 channels of de-embedded audio from SDI and 64 channels via MADI in. Produce programming for big events on the go with the Blackmagic Design Atem Constellation 8K.

With the ATEM Constellation 8K Powerful Switcher, you can elevate your live production capabilities to new heights. This Ultra HD live production switcher is packed with an array of features that, when combined, transform it into an incredibly powerful 8K switcher. It boasts 4 M/Es, 40 x 12G-SDI inputs, 24 x 12G-SDI aux outputs, 4 DVEs, 16 Keyers, 4 media players, 4 multi viewers, 2 SuperSource, and standards conversion on every SDI input.

When switched to 8K, all these features amalgamate to create a formidable 8K switcher. It also includes built-in talkback and a professional 156 channel Fairlight audio mixer with EQ and dynamics. This audio mixer is so expansive, it can connect and utilize a full Fairlight audio console.

The ATEM Constellation 8K is an ideal upgrade for ATEM Television Studio and is designed to handle massive live events. Its multitude of inputs make it perfect for concerts and music festivals, allowing for comprehensive stage coverage. Live sports also benefit from the numerous inputs and four DVEs that enable the creation of multi-layer compositions to cover the action.

The ATEM Constellation 8K is equipped with powerful internal graphics and four ATEM Advanced Chroma Keyers, providing everything you need for complex program production. It's also an excellent choice for house of worship programming, offering professional results with a simple learning curve for volunteer crews.

This Ultra HD switcher is future-ready, designed to work in native 8K. It offers the power of 40 independent 12G-SDI inputs when working in HD or Ultra HD, and these 40 inputs transform into 10 Quad Link 12G-SDI 8K inputs when switched to 8K. Each input also features up and cross conversion, allowing you to instantly switch between 720p, 1080p, 1080i, Ultra HD, and 8K video standards.

The ATEM Constellation 8K is a compact 2RU rack mount design with a built-in control panel, allowing for easy operation during setup or emergency use. It also includes a large LCD for program output viewing and switcher setting changes via on-screen menus. Despite its compact size, the switcher has a massive 40 x 12G-SDI inputs, 24 x 12G-SDI aux outputs, plus balanced audio, Ethernet, RS-422 control, and MADI digital audio extra inputs to the internal Fairlight audio mixer.

The ATEM Constellation 8K is designed for quiet operation, featuring an innovative high-efficiency thermal system and three low-speed cooling fans. It offers full front panel control, allowing for easy operation and transition control. It also supports professional talkback with engineering and production loops, plus an XLR talkback headset connection.

With the ATEM Constellation 8K, you get 40 independent 12G-SDI inputs, each with its own dedicated up and cross converter. It also features 24 independently routable 12G-SDI outputs that can be fully customized. The built-in multi views let you monitor multiple sources in a single monitor, and all external inputs and all internal sources can be routed to any view.

The ATEM Constellation 8K includes a wide range of broadcast quality 8K native transitions such as mix, dip, wipe, and more. It also features 4 independent Ultra HD DVEs that all work together as a single full resolution 8K DVE when you switch to 8K formats.

The ATEM Constellation 8K also features built-in talkback for seamless crew communication and an internal media pool for storing broadcast quality RGBA graphics and animations. With the ATEM Constellation 8K, you get a powerful, versatile, and future-ready live production switcher.

Blackmagic Design ATEM Constellation 8K Features

  • HD and Ultra HD switcher can be switched to 8K
  • Advanced design with built in front panel controls
  • Large 40 standards converted 12G-SDI inputs
  • 24 customizable 12G-SDI outputs
  • Supports all ATEM hardware and software control panels
  • Includes 4 Ultra HD multiview with multiple layout options
  • Includes DVE and stinger transitions
  • Includes 4 Ultra HD DVEs that combine into an 8K DVE
  • Professional talkback compatible with ClearCom and RTS
  • Internal media for stills and motion graphics
  • Includes new ATEM Advanced Chroma Key in 8K
  • Multi rate 12G-SDI for HD, Ultra HD and native 8K
  • Built in 156 channel Fairlight audio mixer
  • Includes free software control panel
  • Compatible with all ATEM hardware control panels
  • Supports Blackmagic Design studio camera with SDI control
  • All features are included with no extra customer costs

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience pristine video quality with this switcher's 10-bit color precision.
  • Enjoy versatile compatibility with 40 inputs supporting up to Ultra HD formats.
  • Achieve real-time streaming with low processing delay, even in stunning 8K.
  • Simplify your workflow using the user-friendly ATEM Software Control Panel.
  • Ensure reliable connectivity with auto SDI switching for seamless transitions.
  • Create captivating content with advanced chroma keyers for broadcast-quality effects.

What's in the box:

  • Blackmagic Design ATEM Constellation 8K Powerful Switcher
  • SD Card with Software
  • User Manual
  • (Power Cable Not Included)
  • Blackmagic Design 1 Year Limited Warranty
