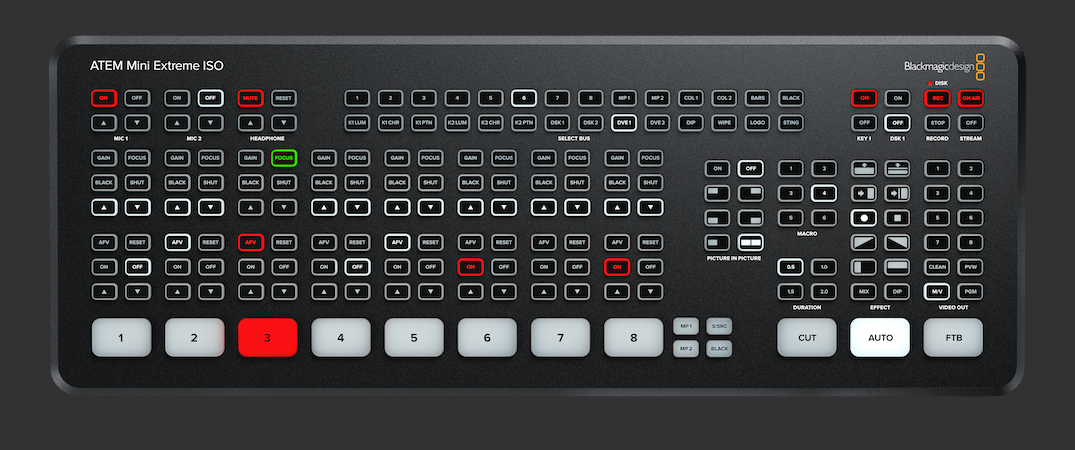

Blackmagic Design ATEM Mini Extreme ISO

SKU: BMATEMMINIXO MFR: SWATEMMINICEXTISO
(230)22 questions, 60 answers
$1,425.00
OR
$119/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Capture every angle with 8 HDMI inputs on this Blackmagic ATEM Mini Extreme ISO.
  • Record directly to external USB drives for quick content delivery using this switcher.
  • Elevate your live streams with broadcast quality using the ATEM Mini Extreme's interface.
  • Create dynamic content with 4 upstream keyers for green screen and graphic overlays.
  • Enjoy seamless audio mixing with Fairlight audio tools, including EQ and compression.
  • Stream directly via Ethernet for reliable, high-quality live broadcasts using RTMP.
See More Product Details

Product Options

FREE 2-Day Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Yonathan R : What’s the approximate file size for iso recordings?
William G : Does anyone know what specs are required to record all eight stream to a hard drive?
Shopper : Why Did You Choose This?Dominic W : because im an expertJOHN Z : It does super sourceDEWAYNE A : My go toRICARDO T : I have other Black magic products that I've been satisfied with and wanted a larger switcher with more features.MICHAEL S : I've been looking at this switcher for some time and needed the additional inputs and features. Too many upgrades to list here from the BMD Atem Mini Pro to list here.JEROME JERRY (PERSONAL) M : Getting ready to launch my podcast on building a better world through equity, dignity, and connection!DYLAN C : To learn how to use the switcher.Serge D : Best in classDave Z : Excellent features and good online reviewsMARGARITA H : I choose it because is easy to handle itMICHAEL K : Looking for small video mixer with super screen and multi-view capabilitiesCARL P : Excited to record all of my 4 cameras at once so I can switch in editingWAYLAN P : After owning the Atem mini Pro for over a year - I feel I need the Iso and Super key power for the next level projects.RICARDO A : streamDAVID C : there is nothing else like this on the market from other vendors. for the extreme ISO upgrade, i needed the simultaneous stream and record out, the supersource, and the additional lines in, and the ISO recordings out into DaVinciKishon H : Number of inputs, multiple hdmi out and iso recordingJEFF K : To help create teaching videos, it will record all feeds into the switcher.GENE B : Upgrading from ISO ProCHRISANDA S : Needed it for a podcastGRAPHIC L : Features, being able to record local to disk and stream tethered to a cell phoneMARK H : Looking for the latest gear for my studio.DAVID O : I am starting a production company and I needed a semi-pro grade video switcher.MATTHEW V : Will record all 8 channels to SSD. YEs!!DHAVAL P : Has 2 HDMI out which you need for production monitor and 2nd for final resultJD K : It offers the best quality and its reliableRAYMONDO B : I have the pro. But i need to be able to record all streams for editing and save to a disk while using my computer to live stream. The twoSANTIAGO G : UpgradeUlf S : the extremely powerful mixer and recording device in its price range.JOSH R : It offers two HDMI outputs and two USB outputs and both function as AUX so I can assign the inputs and also record and use as webcam. It's a lot of tech in one package.ROBINS J : Perfect solution to streamline our workflow!Randy C : To record 8 channels and edit XMLENGEL S : Because I want to do live streaming and record to a hard drive so I can post edit my videos.MATTHEW G : ChurchJACOB O : I want to use this to set up a type of video sport analysis project. Using multiple angles with Kinovea Software for Taekwondo and Softball.Brian S : Extra USB port and 2 hdmi outputs.GREGORY G : Meets my needs at a decent price point.ANDREW N : i like itsFRANYORA D : for churchDAVID N : Because it is a quality product.CARLTON W : The list of features is just unbelievable at this price point.Jairo A : Good QualityARRON J : Because it's awesome!SARAH M : For our livestreams and music education videos!JESSE R : Because the Full ME's, Data Tethering, Dual USB ports and the headphone Jack... game changerDARWIN N : Newkirk Cinema is expanding our mobile production. From 4 cam set up to an 8 camera setup. Watch out Spike Lee. DJ Newkirk & Behind backstage is on the BLOCK.Victor L. W : I Love my ATEM Mini and Mini Pro. They've made my online presentations much more professional. The Extreme is gonna make them even better!!!Kraig P : This is the most advanced video switcher at this price point.Martin R : Liked Mini ProMISAEL T : Upgrade my Atem mini pro switcher.Chris W : I have the ATEM Mini pro ISO and love it, so decided to upgrade. I love the extra inputs, and well as the extra USB C out and HDMI out!Matthew J : For live video productionsRobert P : Upgrade to systemMICHAEL G : Currently own/using a BM Mini Pro ISO with 4 input channels and have had great success! Have wanted more input capability to expand my set-up and use additional cameras. Thank you BM for making the already great "Mini Pro" even more useful! (Can you also add a 3.5mm or 1/4" audio monitor headphone jack please!? One with a built-in amp and volume control would be absolutely perfect!)noel vincent m : new model with additional features neededANGEL A : This is a great upgrade from the ATEM Mini Pro which I have - and it is awesome, but his has twice the inputs and extra DVE options. I chose the ISO which will save the individual streaming channels for easier post-production editing.SARAH H : Amazing product, great price

Reviews about this item

Review Summary

2025-05-27T08:14:30

Rated 5 out of 5

Atem Pro ISO

Great product, easy to use and set up. Great service and fast shipping

TINORA L.

2024-04-05T05:09:39

Rated 4 out of 5

My key equipment for Livestreaming

I love this product. The only thing I wish was that it had 2 USB-C ports so I can record and use it for livestreaming at the same time. I don't want to buy the extreme version which has 8 camera inputs as its an overkill for me. Otherwise, this is a great product for livestreaming. The PiP function via buttons is just a joke where it does not let me use the size I want.. I hope they fix this in future firmware updates.

Krishnakumar V.

2023-11-09T10:30:13

Rated 5 out of 5

Very good item

Very good item

Johanna M.

2023-11-01T12:22:47

Rated 5 out of 5

Worth the money

Great product. Quality and performance is outstanding

KAMALYA M.

2023-02-23T06:23:24

Rated 5 out of 5

Fast shipping

Fast shipping and arrived in perfect condition.

JASON S.

2023-02-01T07:28:22

Rated 5 out of 5

Great video switcher

This is a great switcher. I use for live streaming church services and I am more than pleased with the efficiency of this device. It switches between 4 cameras or HDMI devices, I use it with cameras and an NDI feed from my Mac and it does wonders. I can do lower this, picture in picture and even run macros using the included software. It works great and is definitely worth the price.

FRANCISCO M.

2022-12-04T07:36:30

Rated 5 out of 5

Versatile switcher.

Go to switcher. Love the fact that it has iso record and can stream to the destination I choose.

John N.

2022-12-01T12:17:44

Rated 5 out of 5

Very affordable

Great idea for anyone else trying to get into live streaming

Sean A.

2022-10-24T16:16:09

Rated 5 out of 5

This is a very useful product. I highly recommend it to anyone working with audio/visual.

I am very happy with this product. I am using it for personal recording. It works very well. Thank you for having this product.

Phil T.

2022-10-21T21:34:11

Rated 5 out of 5

$200 Reduction in price made me buy it.

I had been eyeing the Mini for a long time and almost bought it a few weeks ago but decided to wait, and I'm glad I did. The Mini was discontinued and the Mini-Pro was reduced in price by $200 which was just enough of a reduction in price to make me buy. I own a lot of cameras. I hooked up four of them (Olympus OM-D E-M1 Mark II Mirrorless, Pentax K-70 DSLR, Nikon D3500 DSLR, Canon T2i DSLR) and then played around with it. I was impressed with how well it worked and more so by how well it accepted the old Canon T2i and low-end Nikon D3500. I was most impressed that I was able to record to an external drive connected to the USB port of the Mini-Pro and how it just kept on recording when one of the four cameras suddenly shut down (dead battery). This is going to be a lot of fun to play with.

CHARLES N.

2022-09-30T15:16:30

Rated 3 out of 5

Desappointed

The purchase was smooth and what motivated me the most was the possibility of fast delivery (next day) due to the urgency I had. The problem is that after 3 days of purchase I still haven't received the product and apparently it will take at least 3 more days, that is, I won't get the product in the time I need it. Disappointed.

FRANCISCO S.

2022-09-21T10:46:03

Rated 5 out of 5

Good value- very powerful

Easy to setup and use

Thomas K.

2022-07-01T10:21:57

Rated 4 out of 5

BlackMagic ATEM

I love this thing! I love how it can be networked and controlled by up to four different t computers giving me a broadcast team! I o my wish it had 2 hdmi outputs.

Michael C.

2022-06-15T09:00:02

Rated 5 out of 5

Great solution!

This is an amazing piece of tech that makes streaming so easy. More audio controls and a headphone out would be nice, but there are workarounds for these issues. Overall, I am very pleased!

ZACHARY S.

2022-05-17T08:14:39

Rated 5 out of 5

ATEM Mini Pro

This device has upgraded my production quality in a tremendous way. It?s lightweight, portable and a production beast. The only thing I wish is that there were two outputs so that I could have a multi view AND a program out but for the price and quality, this device absolutely delivers!!

TRANISE F.

2022-05-10T21:31:46

Rated 5 out of 5

It?s easy to use . But it doesn?t have turn off switch

It is a good product

WILFRED R.

2022-04-20T11:24:47

Rated 5 out of 5

You need this one

Its really reliable and easy to use. take the stress off my MacBook Pro.

carlos c.

2022-03-30T09:48:11

Rated 4 out of 5

So far so good.

Still testing it before the big event but I really like how the footage looks.

LOGAN A.

2022-03-17T09:47:10

Rated 5 out of 5

Awesome!

Clean and strait to the point!

ROY D.

2022-03-04T07:40:44

Rated 5 out of 5

ATEM Mini Pro

Great switcher, easy to learn and easy to use. Can?t wait to really start it on it?s paces

LEONARD S.

2022-02-11T09:08:21

Rated 5 out of 5

Great

Great Equipment and customer service

BRUCE T.

2022-02-01T08:11:40

Rated 4 out of 5

Good Product, but Clunky Workflow in Control Software

I like this encoder quite a lot - it is plug and play with my blackmagic cameras, and the switching / monitoring features are intuitive. I travel onsite for most of my work, so the fact that it is so lightweight and durable makes a huge difference. The control software however is not easy to use. The graphic overlay feature is especially time consuming. If Blackmagic does a major overhaul on the control software then I will have no complaints at all!

Matthew P.

2022-01-31T07:23:45

Rated 4 out of 5

Nice for the price

Smooth, does what it says. Only has pre set effect transition speeds but fine for the price.

MARTIN S.

2022-01-25T07:57:52

Rated 5 out of 5

If you're gonna start streaming... this is it.

It does what it says and doesn't it reliably. Can't think of anything negative about it and a great deal too.

ELLIOT C.

2022-01-23T09:57:23

Rated 5 out of 5

Great product

Easy to set up and use right out of the box. And the app gives tons of control over a bunch of cool features.

LAMONTE W.

2021-12-17T10:49:24

Rated 5 out of 5

Mini Pro upgrade

Upgraded from the ATEM Mini to the Mini Pro and found the difference is significant with the ability to preview all inputs. Used this for a live production and would not have been able to do it near as well with the older Mini.

TERRY L.

2021-12-05T13:08:20

Rated 5 out of 5

Great purchase

Does exactly what is described. Great for video podcast and simple live productions

MICHAEL L.

2021-10-15T08:38:07

Rated 4 out of 5

Mis IDSs

It is a good product but miss SDIs

HERMES T.

2021-10-15T08:37:09

Rated 5 out of 5

The Only thing that you need

The BMD Atem Mini Extreme is all that you need to be a professional live broadcaster

Hermes T.

2021-10-03T10:31:17

Rated 5 out of 5

I love it.

I work with it in our church and it work so great and so many a different features I love it.

JOHN J.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Blackmagic Design ATEM Mini Specifications

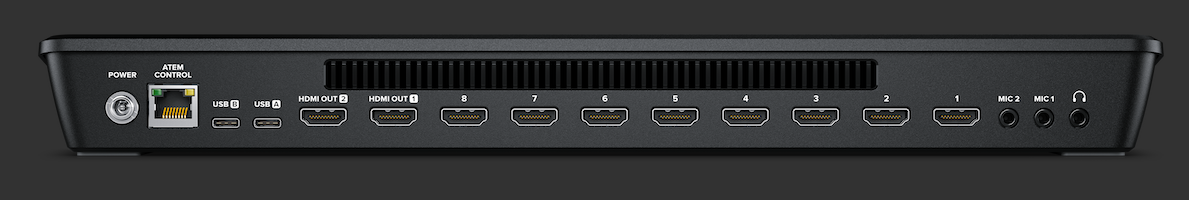

Connections

Connections

Jump to...

  • Total Video Inputs

    8

  • Total Outputs

    2

  • Total Aux Outputs

    2

  • Total Audio Inputs

    2x 3.5mm stereo mini jack.

  • Total Audio Outputs

    1x 3.5mm stereo mini jack.

  • Timecode Connection

    None

  • HDMI Video Inputs

    8x HDMI type A, 10-bit HD switchable.
    2 channel embedded audio.

  • Video Input Re-Sync

    On all 8 HDMI inputs.

  • Frame Rate and Format Converters

    On all 8 HDMI inputs.

  • HDMI Program Outputs

    2

  • Ethernet

    Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.

  • Computer Interface

    2x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

Standards

Jump to...

  • HD Video Input Standards

    720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60

  • HD Video Output Standards

    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

  • Video Streaming Standards

    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

  • Ultra HD Video Standards

    None

  • Video Sampling

    4:2:2 YUV

  • Color Precision

    10-bit

  • Color Space

    Rec 709

  • HDMI Input Resolutions from Computers

    1280 x 720p 50Hz, 59.94Hz and 60Hz, 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz, 1920 x 1080i 50, 59.94Hz and 60Hz

  • Colorspace Conversion

    Hardware based real time.

Specifics/Keys

Jump to...

  • Upstream Keyers

    4

  • Downstream Keyers

    2

  • Advanced Chroma Keyers

    Up to 4

  • Linear/Luma Keyers

    Up to 4

  • Transition Keyer

    DVE only.

  • Total Number of Layers

    9

  • Pattern Generators

    5

  • Color Generators

    2

  • DVE With Borders and Drop Shadow

    2

  • Interface

    Minimum monitor resolution of 1366 x 768.

Audio

Jump to...

  • Audio Mixer

    11 input x 2 channel mixer.
    Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
    Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

  • Analog Input

    Unbalanced stereo

  • Analog Input Delay

    Up to 8 frames

  • Input Impedance

    1.8k

  • Max Input Level

    +6dBV

  • Mic Plug In Power

    Available on both 3.5mm mini jack connections.

Streaming

Jump to...

  • Direct Streaming

    ATEM Mini Extreme ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB-C.

Recording

Jump to...

  • Direct Recording Video and Audio

    USB-C 3.1 Gen 1 expansion port can record directly to external media.

  • Video Recording

    8x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
    1x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.

  • Audio Recording

    10x 2 channel audio inputs recorded as separate 24-bit 48KHz .wav files. Including 2 x analog 2 channel audio inputs and 8 x HDMI 2 channel embedded audio inputs.

  • Switching

    Program switching recorded as a DaVinci Resolve project .drp file.

Multi View Monitoring

Jump to...

  • Media Format

    Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.

  • Multi View Monitoring

    Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.

  • Multi View Video Standard

    HD

Media Player

Jump to...

  • Media Players

    2

  • Channels

    Fill and key for each Media Player.

  • Media Pool Still Image Capacity

    20 with fill and key.

  • Media Pool Still Image Format

    PNG, TGA, BMP, GIF, JPEG and TIFF.

Control

Jump to...

  • Control Panel

    Built in control panel. Software control panel with camera control included. Supports optional hardware panel.

  • Control Panel Connection

    Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Extreme ISO also supports direct USB-C connection.
    Ethernet or USB-C used for updating the software.

  • Control Panel Compatibility

    Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Extreme ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.

  • Control Panel Included

    ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina, Mac 11 Big Sur or later and Windows 10 64 bit only.

Software

Jump to...

  • Software Updates

    Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.

  • Configuration

    Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

  • Operating Systems

    Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
    Windows 10, 64-bit.

Power Requirements

Jump to...

  • Power Supply

    1x External 12V power supply.

  • Power Usage

    36W

  • Operating Temperature

    41 Degree - 104 Degree F (5 Degree C to 40 Degree C)

  • Storage Temperature

    14 Degree to 140 Degree F (-10 Degree to 60 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...

  • Dimensions

    14.56 x 5.37 x 1.56" (37 x 13.6 x 4cm)

  • Weight

    2.72 lbs (1.23kg)

Other

Jump to...

  • UPC Code

    9338716007305

Related Articles & Videos

Blackmagic Introduces new Pocket Cinema Camera 6K Pro, ATEM Mini Live Extreme

Blackmagic Introduces new Pocket Cinema Camera 6K Pro, ATEM Mini Live Extreme

Today, Blackmagic introduced a variety of new innovations to help videographers and producers elevate and streamline their work: the Blackmagic Pocket Cinema Camera 6K Pro, the Blackmagic Desig...
Read more

10 Accessories for Blackmagic Design ATEM Mini Extreme ISO

  • All Accessories (10)
  • Signal Converters (2)
  • Power Supply & Accessories (3)
  • Cables & Adapters (5)
Comprehensive 6' Standard PC Power Cord
Comprehensive 6' Standard PC Power Cord
$5.03
Recommended
Comprehensive 3' Standard PC Power Cord
Comprehensive 3' Standard PC Power Cord
$4.79
Recommended
Comprehensive 10' Standard PC Power Cord
Comprehensive 10' Standard PC Power Cord
$6.39
Recommended
Blackmagic Design SDI to HDMI 3G Micro Converter with Power Supply
Blackmagic Design SDI to HDMI 3G Micro Converter with Power Supply
$79.00
Blackmagic Design HDMI to SDI 3G Micro Converter with Power Supply
Blackmagic Design HDMI to SDI 3G Micro Converter with Power Supply
$75.00
Hosa Technology 6' High-Speed HDMI Male to HDMI Male Cable with Ethernet
Hosa Technology 6' High-Speed HDMI Male to HDMI Male Cable with Ethernet
$13.95
Hosa Technology 15' High-Speed HDMI Male to HDMI Male Cable with Ethernet
Hosa Technology 15' High-Speed HDMI Male to HDMI Male Cable with Ethernet
$22.95
Hosa Technology Headphone Extension Cable, 3.5mm TRS to 3.5mm TRS, 25'
Hosa Technology Headphone Extension Cable, 3.5mm TRS to 3.5mm TRS, 25'
$15.95
Rode VC1 10 feet Stereo Mini Jack Extension Cable
Rode VC1 10 feet Stereo Mini Jack Extension Cable
$19.00
Hosa Technology Hosa 10' Right-Angle 3.5mm to Right-Angle 3.5mm Stereo Cable
Hosa Technology Hosa 10' Right-Angle 3.5mm to Right-Angle 3.5mm Stereo Cable
$10.95

About Blackmagic Design ATEM Mini

FEATURED REVIEWS

FANTASTIC DEVICE!

By Gary L.

This product works as advertised. It has made life much easier for me. It's not a high end switcher just based on the inputs and function capacity, so be sure to have your expectations in order. It's not made for high end productions. It's made for the prosumer market or record-to-web audience viewing on popular social media platforms such as YouTube & Facebook. It's great for me because I was using the Blackmagic Web Presenter as a pseudo switcher for a couple of cameras and was able to repl...

View full Review

Small and powerful.

By PETER O.

This is a very nice, very well built, small but powerful switcher/streamer. We are big Blackmagic users, and this little ATEM is a welcome addition to our team. It just works. Works connected to a computer to stream to the internet live pictures from HD cameras and stills. A video player can also be connected to transmit pre-recorded video. It can key green screen and titles stored in the computer. In the connected computer, audio, still storage and the video imputes can also be selected. Lim...

View full Review

ATEM Mini Extreme ISO.

ATEM Mini Extreme ISO.

Edit Live Production with Separate ISO Recordings!
Get the features of ATEM Mini Extreme plus 9 record streams for clean feeds of all inputs. A DaVinci project is saved for editing and relinking to Blackmagic RAW files for Ultra HD finishing.

This model includes all the features of ATEM Mini Extreme, plus also records 9 separate H.264 video streams in real time, allowing capture of all 8 clean feed inputs as well as the program video. A DaVinci Resolve project file is also saved allowing the project to be recreated and edited later!

Edit Live Productions In Davinci Resolve.

Edit Live Productions In Davinci Resolve.

The ATEM Mini Pro ISO model can also save a DaVinci Resolve project file, so with a single click, you can open your live production as a video edit. All cuts, dissolves and media pool graphics will be loaded. This means you can fine tune edit points or even completely replace shots! The DaVinci Resolve Sync Bin lets you select new shots via a multiview so it's very easy to use. You can even relink to Blackmagic RAW camera files for adding professional color correction and finishing in Ultra HD!

Affordable live switcher with 4 standards converted HDMI inputs, USB webcam out, audio mixer with EQ and dynamics, 2D DVE, transitions, green screen chroma key, 20 stills for titles and much more! ATEM Mini Pro also includes recording to USB disks in H.264 format, a built in hardware streaming engine for YouTube Live, Facebook, Twitch and more, plus multiview to see all cameras on a single monitor. Plus with the ATEM Mini Pro ISO model you also get recording of 5 streams including all input as clean feeds for editing, plus a DaVinci project file for fast edit turnaround and Blackmagic RAW file relinking for finishing in Ultra HD.

Features.

Features.

  • Front Panel Control, Transitions, DVE, Keyers, Full 1080 HD webcam output
  • Faster Video Production Plus Live Streaming
  • Self Contained Broadcast Quality Switcher
  • Easy to Use and Fast to Learn!
  • Connect upto 4 Independent Cameras
  • Outputs to HDMI Video and USB Webcam!
  • Record to Video for YouTube Uploads
  • Work with Professional Microphones
  • Includes Free ATEM Software Control Panel

How can you elevate your live production capabilities With the ATEM Mini Extreme ISO, you can harness the power of a professional-grade, compact live production switcher that's packed with innovative features. This model goes beyond the standard ATEM Mini Extreme, offering nine separate record streams for capturing clean feeds from all inputs.

Whether you're a professional videographer or a tech enthusiast, you'll appreciate the high-quality performance of this device. It's designed to save a DaVinci project for editing, allowing you to relink to Blackmagic RAW files for Ultra HD finishing. This means you can revisit and refine your projects at any time, ensuring the highest quality output.

In addition to its robust features, the ATEM Mini Extreme ISO is user-friendly and durable, making it a reliable choice for on-the-go productions. It doesn't just record the program video, but also captures all eight clean feed inputs in real time using H.264 video streams. This innovative approach to live production makes the ATEM Mini Extreme ISO a standout choice in the market.

Experience the difference with the ATEM Mini Extreme ISO, a tool that combines professional-grade quality with user-friendly design, making live production more accessible and efficient than ever before.

Blackmagic Design ATEM Mini Features

  • Features of ATEM Mini Extreme plus 9 record streams for clean feeds of all inputs
  • Records 9 separate H.264 video streams in real time
  • Allowing capture of all 8 clean feed inputs as well as the program video

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Capture every angle with 8 HDMI inputs on this Blackmagic ATEM Mini Extreme ISO.
  • Record directly to external USB drives for quick content delivery using this switcher.
  • Elevate your live streams with broadcast quality using the ATEM Mini Extreme's interface.
  • Create dynamic content with 4 upstream keyers for green screen and graphic overlays.
  • Enjoy seamless audio mixing with Fairlight audio tools, including EQ and compression.
  • Stream directly via Ethernet for reliable, high-quality live broadcasts using RTMP.

What's in the box:

  • Blackmagic Design ATEM Mini Extreme ISO
  • External 12V Power Supply with International Socket Adapters
  • Blackmagic Design 1 Year Limited Warranty

Articles & Videos

Blackmagic Introduces new Pocket Cinema Camera 6K Pro, ATEM Mini Live Extreme

Blackmagic Introduces new Pocket Cinema Camera 6K Pro, ATEM Mini Live Extreme
