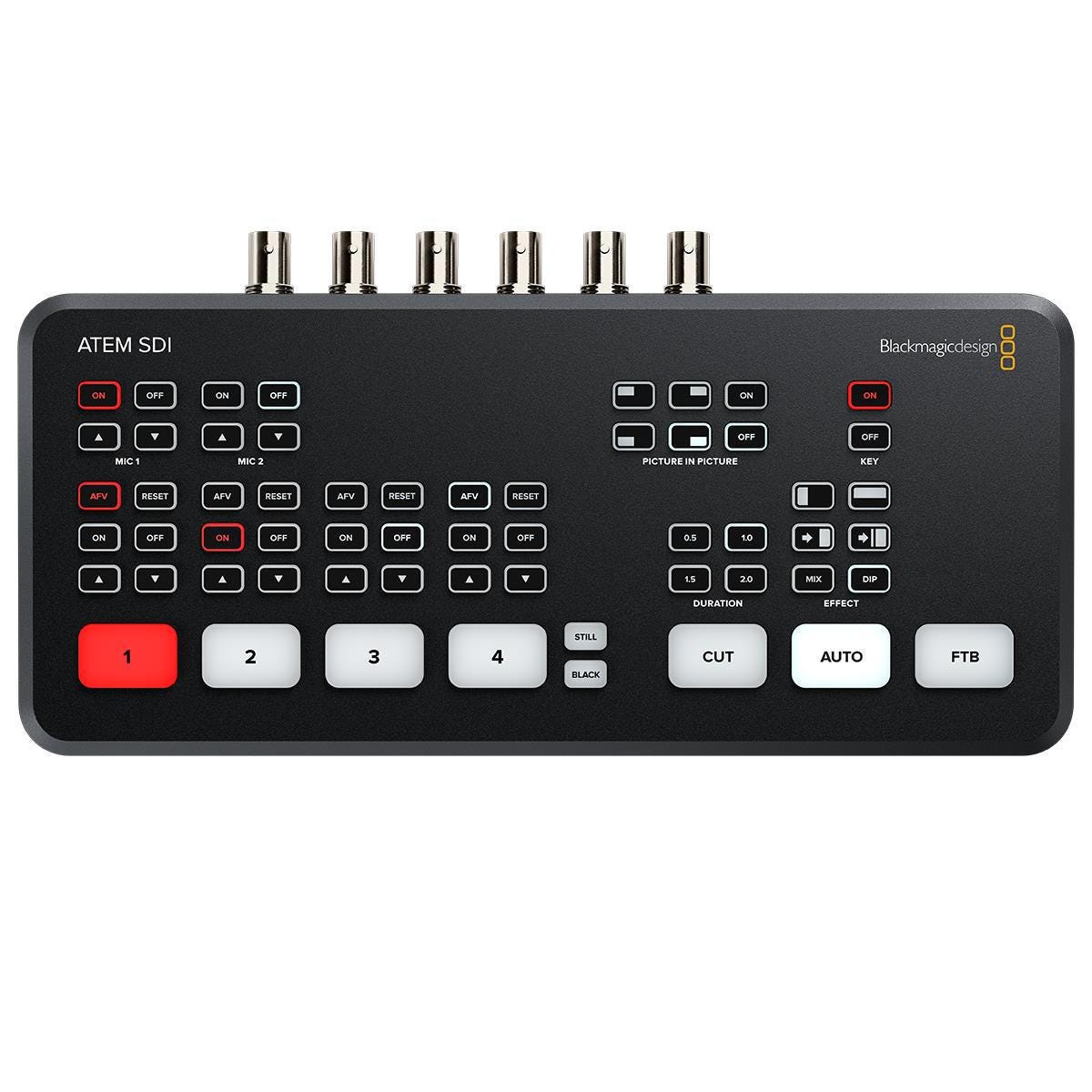

Blackmagic Design ATEM SDI Live Production Switcher

SKU: BMATEMSDI MFR: SWATEMMXEP
Earn VIP Reward Points

Key Features

  • Create engaging live productions with the ATEM SDI Live Production Switcher's 4 SDI inputs.
  • Achieve high video quality with 10-bit HD, perfect for broadcast or streaming content creation.
  • Enjoy versatile compatibility with multiple HD video standards for seamless integration.
  • Easily manage audio with the built-in audio mixer, featuring Fairlight audio enhancements.

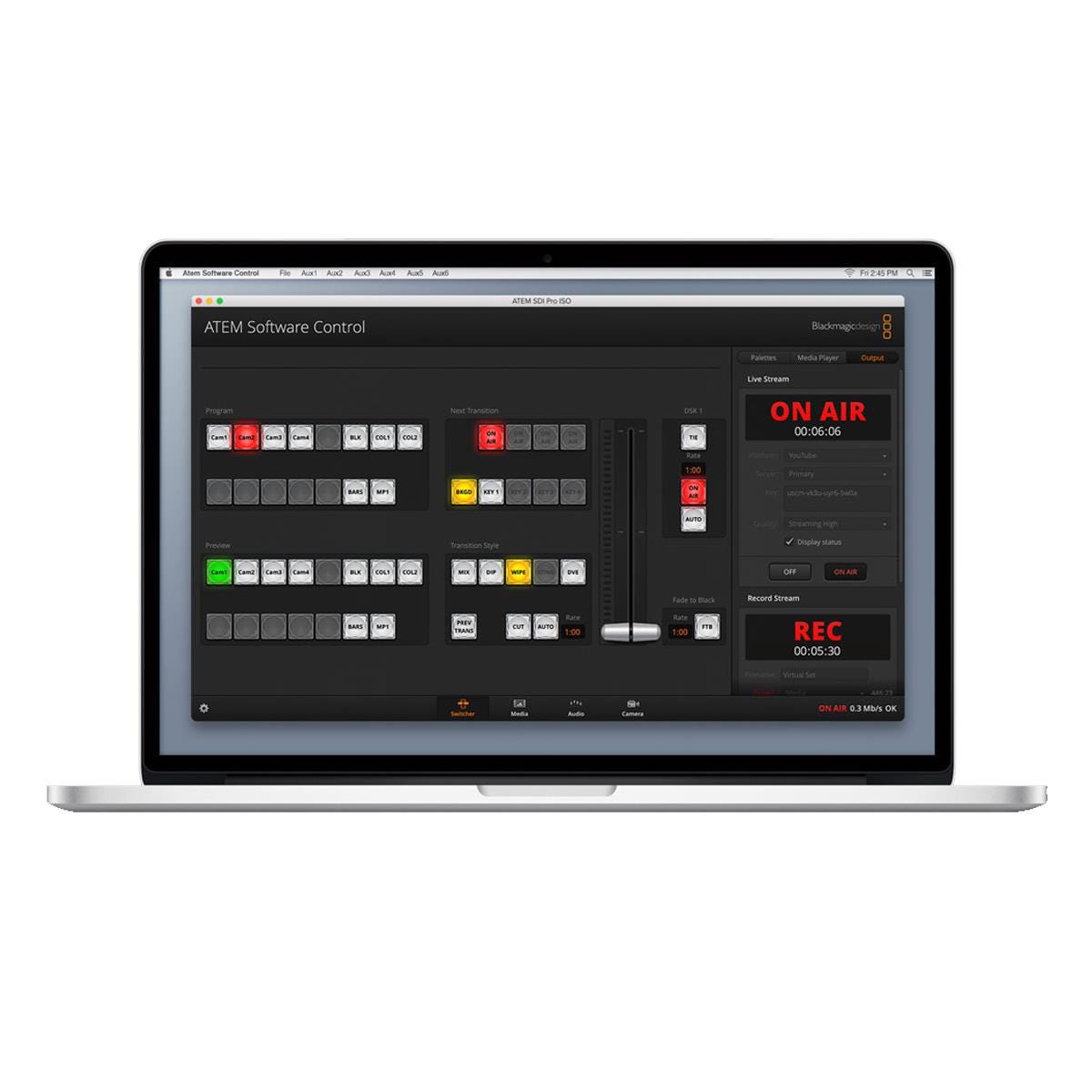

  • Streamline your workflow using the intuitive ATEM Software Control Panel for Mac and Windows.
  • Enhance your production with advanced chroma keyers and DVE effects for professional results.
See More Product Details

Product Options

FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2023-10-19T08:26:53

Rated 5 out of 5

Great!

Wonderful product

ROBERT P.

2022-09-11T08:10:44

Rated 5 out of 5

Another disruptive, segment-defining product from BMD

At this point you know the deal with these ATEM switchers from Blackmagic Design. Now with 4 independent outputs, SDI interconnectivity, and some nice enhancements to the previous Extreme ISO. This thing is well built and delivers on all of the promised functionality, and nothing else on the market can touch the power, flexibility, small form factor, and ease of use.

STEFAN C.

2022-09-07T08:41:47

Rated 5 out of 5

Small and Powerful!

I bought this to replace the HDMI version and both are great! So much power in such a small and affordable package. Well done Blackmagic!

Heidi B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design ATEM SDI Specifications

Connections

Connections

Jump to...
  • Total Video Inputs

    4

  • Total Outputs

    3

  • Total Aux Outputs

    2

  • Total Audio Inputs

    2 x 3.5mm stereo mini jack

  • Total Audio Outputs

    None, embedded audio only

  • Timecode Connection

    None

  • SDI Video Inputs

    4 x 3G-SDI, 10-bit HD switchable.
    2 channel embedded audio

  • Video Input Re-Sync

    On all 4 SDI inputs

  • Frame Rate and Format Converters

    On all 4 SDI inputs

  • SDI Program Outputs

    2

  • Ethernet

    Ethernet supports 10/100 BaseT for software control, software updates and direct or network panel connection

  • Computer Interface

    1 x USB Type-C 2.0 for webcam out, software control, software updates and panel connection

Standards

Jump to...
  • HD Video Input Standards

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080i50, 1080i59.94, 1080i60

  • HD Video Output Standards

    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

  • Video Streaming Standards

    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

  • Ultra HD Video Standards

    None

  • Video Sampling

    4:2:2 YUV

  • Color Precision

    10-bit

  • Color Space

    Rec 709

  • Colorspace Conversion

    Hardware based real time

Product Specifics

Jump to...
  • Upstream Keyers

    1

  • Downstream Keyers

    1

  • Advanced Chroma Keyers

    1

  • Linear/Luma Keyers

    2

  • Transition Keyer

    DVE only

  • Total Number of Layers

    5

  • Pattern Generators

    1

  • Color Generators

    2

  • DVE With Borders and Drop Shadow

    1

  • Interface

    Minimum monitor resolution of 1366 x 768

  • Audio Mixer

    6 input x 2 channel mixer.
    Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
    Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

  • Analog Input

    Unbalanced stereo

  • Analog Input Delay

    Up to 8 frames

  • Input Impedance

    1.8k

  • Max Input Level

    +6dBV

  • Mic Plug In Power

    Available on both 3.5mm mini jack connections

Media Player

Jump to...
  • Media Players

    1

  • Channels

    Fill and key for each Media Player

  • Media Pool Still Image Capacity

    20 with fill and key

  • Media Pool Still Image Format

    PNG, TGA, BMP, GIF, JPEG and TIFF

Control

Jump to...
  • Control Panel

    Built in control panel. Software control panel included. Supports optional hardware panel.

  • Control Panel Connection

    Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection.

  • Control Panel Compatibility

    Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel

  • Control Panel Included

    ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 or 11

Software

Jump to...
  • Software Updates

    Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility

  • Configuration

    Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Operating Systems

Jump to...
  • Mac

    Mac 11.0 Big Sur, Mac 12.0 Monterey or later

  • Windows

    Windows 10 and 11

Power Requirements

Jump to...
  • Power Supply

    1 x External 12V power supply

  • Power Usage

    18W

Environmental Specifications

Jump to...
  • Operating Temperature

    41 Degree - 104 Degree F (5 Degree C to 40 Degree C)

  • Storage Temperature

    14 Degree to 140 Degree F (-10 Degree to 60 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...
  • Dimensions

    9.35 x 1.38 x 4.67" (23.7 x 3.50 x 11.8cm)

  • UPC Code

    9338716007930

Related Articles & Videos

Best Tech Gifts of 2024
Which Blackmagic ATEM SDI Switcher Should You Choose?

Which Blackmagic ATEM SDI Switcher Should You Choose?

Blackmagic ATEM SDI Switchers are now in stock with three new models to choose from. This is great news for content creators that live stream or work with rec...

Read more

24 Accessories for Blackmagic Design ATEM SDI Live Production Switcher

  • All Accessories (24)
  • Power Supply & Accessories (3)
  • Monitor & Recorder (7)
  • Cables & Adapters (8)
  • Signal Converters (5)
  • Bags & Cases (1)

About Blackmagic Design ATEM SDI

FEATURED REVIEWS

Great!

By ROBERT P.

Wonderful product

Another disruptive, segment-defining product from BMD

By STEFAN C.

At this point you know the deal with these ATEM switchers from Blackmagic Design. Now with 4 independent outputs, SDI interconnectivity, and some nice enhancements to the previous Extreme ISO. This thing is well built and delivers on all of the promised functionality, and nothing else on the market can touch the power, flexibility, small form factor, and ease of use.

Blackmagic Design ATEM SDI.

The Blackmagic Design ATEM SDI is a Live Production Switcher that automatically standards, converts and re-syncs all SDI inputs. With customizable 16 way multiview on ATEM SDI Extreme model, featuring a miniaturized control panel based design, the ATEM SDI is built for serious productions without the serious pricetag.

Blackmagic Design ATEM SDI

Flexible Live Stream For All Devices.

Live stream via Ethernet on ATEM SDI Pro and Extreme models with included free ATEM Software Control for Mac and Windows or phone tether for remote streaming via mobile data on ATEM SDI Pro and Extreme models. Records to USB disks in H.264 on ATEM SDI Pro and Extreme models. Supports connecting up to 8 cameras or computers, with up to 6 independent DVEs on ATEM SDI Extreme model.

Flexible Live Stream For All Devices.

Just imagine the power of a professional, high-quality live production switcher that's not only versatile but also user-friendly and easy to set up. The ATEM SDI Live Production Switcher by Blackmagic Design is a game-changer in the broadcasting industry. This durable and reliable switcher is designed for broadcasters who require extreme portability without compromising on advanced broadcast features.

The ATEM SDI switcher comes with 4 standards converted SDI inputs, a USB webcam, 2 SDI outputs, a Fairlight audio mixer with EQ and dynamics, and a DVE for picture-in-picture effects. It also includes transition effects, a green screen chroma key, and a 20 stills media pool for titles.

This switcher is part of the ATEM SDI family, which is renowned for its ultra-portable live production capabilities. The ATEM SDI models are similar to the ATEM Mini, but they feature 3G-SDI video connections and double the number of video outputs. Depending on the model, you can get 4 or 8 SDI inputs, all of which feature standards converters and re-sync.

The ATEM SDI switcher is designed to connect advanced broadcast-quality cameras and recorders, opening up a new world of ultra-portable live production. Its compact design allows you to fit a whole broadcast-quality live production system in a small bag or even a backpack.

The ATEM SDI switcher is not just easy to use, but it's also fast to learn. It features large, easy-to-use buttons for selecting sources, video effects, and transitions. The Pro and Extreme models even have buttons for recording and streaming control, as well as output selection buttons that let you change the video output between program, direct camera feeds, and the multiview.

The ATEM SDI switcher also features a USB that operates as a simple webcam source, ensuring maximum compatibility with any video software in full resolution 1080HD quality. This makes it perfect for presentations with a professional multi-camera broadcast-quality style.

In addition, the ATEM SDI Pro and Extreme models have a built-in hardware streaming engine for live streaming via their Ethernet connections. This means you can live stream to YouTube, Facebook, and Twitch in better quality, without dropped frames and with simpler settings.

The ATEM SDI switcher is not just a live production switcher; it's a complete solution for broadcasters who need a reliable, high-quality, and user-friendly tool for their live productions. It's the perfect choice for interviews, advertorials, theater production, music performances, sports, and more.

Blackmagic Design ATEM SDI Features

  • Features miniaturized control panel based design
  • Supports connecting up to 4 cameras/computers
  • Automatically standards converts and re-syncs all SDI inputs
  • Includes free ATEM Software Control for Mac and Windows
  • All SDI inputs feature standards converters and re-sync
  • Support DVEs for picture in picture effects
  • USB works as a webcam for connecting video to computers

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Create engaging live productions with the ATEM SDI Live Production Switcher's 4 SDI inputs.
  • Achieve high video quality with 10-bit HD, perfect for broadcast or streaming content creation.
  • Enjoy versatile compatibility with multiple HD video standards for seamless integration.
  • Easily manage audio with the built-in audio mixer, featuring Fairlight audio enhancements.
  • Streamline your workflow using the intuitive ATEM Software Control Panel for Mac and Windows.
  • Enhance your production with advanced chroma keyers and DVE effects for professional results.

What's in the box:

  • Blackmagic Design ATEM SDI Live Production Switcher
  • External 12V DC Power Supply with International Socket Adapters
  • Blackmagic Design 1 Year Limited Warranty
