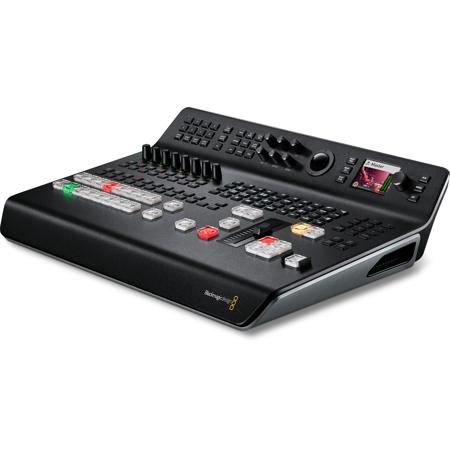

Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher
See all Blackmagic Design items

Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher, 4x HDMI, 4x SDI Inputs

SKU: BMATEMTVSPHD

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

RUSSELL B : Is it possible to record the live switch into an edl or some kind of file version to bring it into Adobe Premiere or Final Cut X?Rick R : Yes, I am using BM HyperDeck Studio Mini and it will record your live presentation into an MP4 file. There are two card slots so if one card fills up the second will automatically start recording. There may be updated releases since I purchased mine (about 4 years ago.) Hope that helps.
don m : WILL THIS CAPTURE VIDEO AND STREM TO FB AND YT SIMULTANECOUSLY?Jesse G : You have two outputs but you will have to have some sort of streaming software and computer to accomplish what you are asking.Vincent S : NoThomas P : It does have 2 program outs so you can send your signal two places simultaneously
johnny s : Apart from 4K Resolution what are the major difference between BMD Atem television Studio Pro 4K & BMD Atem television Studio Pro HD. Which one should I buy as I am budget oriented?JONATHAN J : The Television Studio Pro HD has 4 HDMI inputs where the 4K is all SDI. The TV Studio will save you having to purchase HDMI to SDI converters if you plan to use any source that does not come with SDI outputs such as laptops or consumer cameras.

Reviews about this item

Review Summary

2021-10-21T15:28:43

Rated 5 out of 5

Love it!

High Quality!

MARCOS P.

2021-10-21T15:27:38

Rated 5 out of 5

Good quality!

Great product!

MARCOS P.

2020-10-27T09:08:32

Rated 5 out of 5

Love BM Switcher!

Love this switcher! We have been using it for live broadcasting at our high school and it had worked really well. I especially love the 4 HDMI ports that prevent us from having to purchase more SDI cables.

TAMARA S.

2020-06-16T13:09:33

Rated 4 out of 5

ATEM Television Studio Pro

The Studio Pro HD was just what we needed. It helped us put together a great multi camera solution. One thing to keep in mind though is that the color correction on the included software only works with Black Magic cameras.

JESSE G.

2018-04-16T18:38:41

Rated 4 out of 5

Great unit as long as you have resolutions the same, and bring your own power cord..

This is a great product. Only remember to purchase a upc/ d plug, as a power cord is not included in the package..... (as with most of the black magic switchers). Keep in mind that you have to have same resolution / frequencies on all inputs, or it will not respond.

JOSEPH A.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Blackmagic Design Television Studio Pro HD Specifications

Connections

Connections

Jump to...

  • Total Video Inputs

    8

  • Total Outputs

    8

  • Total Aux Outputs

    1

  • SDI Rates

    270Mb, 1.5G, 3G

  • Total Audio Inputs

    2x XLR

  • Total Audio Outputs

    No, embedded audio only

  • SDI Video Inputs

    4x 10-bit SD/HD switchable. 2 channel embedded audio

  • HDMI Video Inputs

    4x HDMI type A, 10-bit SD/HD switchable. 2 channel embedded audio

  • Reference Inputs

    Tri-Sync or Black Burst

  • Video Input Re-Sync

    On all 8 inputs

  • SDI Program Outputs

    5x 10-bit SD/HD switchable

  • SDI Audio Outputs

    2 Channel embedded into SDI output

  • Multi View Monitoring

    1

  • Multi View Video Standard

    1x HD-SDI and 1x HDMI

Standards

Jump to...

  • SD Video Standards

    525i59.94 NTSC 4:3 or 16:9, 625i50 PAL 4:3 or 16:9

  • HD Video Standards

    720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94, 1080i50, 1080i59.94

  • Ultra HD Video Standards

    No

  • SDI Compliance

    SMPTE 259M, 292M and 424M

  • Video Sampling

    4:2:2 10-bit

  • Color Precision

    4:2:2 10-bit

  • Color Space

    4:2:2 YUV

  • HDMI Input Resolutions for Computers

    720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720p 59.94Hz 50Hz and 1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 1920 x1080i 50 and 59.94Hz 60Hz

  • Colorspace Conversion

    Hardware based real time

  • Processing Delay

    6 Lines

  • Audio Mixer

    10 input x 2 channel mixer
    Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel
    Level and Peak metering
    Master gain control. Headphone output level control with separate mix of Program, Talkback and Sidetone

Specifics

Jump to...

  • Upstream Keyers

    1 with Chroma/Linear/Luma key

  • Downstream Keyers

    2

  • Chroma Keyers

    1

  • Linear/Luma Keyers

    3

  • Talkback Support

    Built in, uses aviation headset

  • Mix Minus Support

    Yes, on 4 camera PGM outputs

  • Transition Keyer (Stinger/DVE)

    DVE only

  • Total Number of Layers

    5

  • Pattern Generators

    2

  • Color Generators

    2

  • DVE with 3D Borders & Drop Shadow

    1

  • Interface

    Minimum monitor resolution of 1366 x 768

  • Number of Windows

    1x 10

  • Routable Windows

    8 routable and 2 fixed for Program and Preview

  • Tally

    Red for program and green for preview indication

  • Tally Output

    Added via Ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)

  • Windows Source Labels

    Yes

Multi View Monitoring

Jump to...

  • Multi View Monitoring

    1x 10 Views

  • Multi View Video Standard

    HD

Media Player

Jump to...

  • Media Players

    2, with non volatile flash memory

  • Media Pool Still Image Capacity

    20 with fill and key

  • Media Pool Still Image Format

    PNG, TGA, BMP, GIF, JPEG and TIFF

  • Channels

    Fill and key for each Media Player

Control

Jump to...

  • Control Panel

    Built in with camera control. Software panel included. Supports optional broadcast panel

  • Control Panel Compatibility

    Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Broadcast Panel and ATEM 2 M/E Broadcast Panel

  • Control Panel Included

    ATEM Software Control Panel included free for Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra or later and Windows 8.1 64-bit or Windows 10 64-bit

Software

Jump to...

  • Software Updates

    Using USB connection directly connected to macOS X or Windows computers. Includes ATEM Switcher Utility

  • Configuration

    Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis

Operating Systems

Jump to...

  • Operating Systems

    macOS 10.12 Sierra, macOS 10.13 or later
    Windows 8.1 or Windows 10

Power Requirements

Jump to...

  • Power Supply

    1x Internal 110 - 240V AC. 4 pin 12V DC

  • Power Usage

    40W

Environmental

Jump to...

  • Operating Temperature

    5 to 40 deg. C (41 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Relative Humidity

    0 to 90% non-condensing

Other

Jump to...

  • UPC Code

    9338716004779

About Blackmagic Design Television Studio Pro HD

FEATURED REVIEWS

Love it!

By MARCOS P.

High Quality!

Good quality!

By MARCOS P.

Great product!

ATEM Television Studio Pro HD is the first production switcher designed for both broadcasters and AV professionals with a fully featured hardware control panel built in. It includes 4 SDI and 4 HDMI inputs with re-sync on all inputs so you can use it with broadcast or consumer cameras. ATEM Television Studio Pro HD is packed with high end features and is perfect for live production, episodic television programming, web shows, AV or even live coverage of gaming competitions! Simply plug in cameras, game consoles or computers and start switching live!

Blackmagic Design Television Studio Pro HD Features

  • Integrated broadcast switcher and professional hardware control panel.
  • 4 x 3G-SDI and 4 x HDMI inputs for a total of 8 inputs, all with auto re-sync.
  • Supports all video formats from SD to 720p, 1080i and 1080p HD up to 60fps.
  • 1 x built in multi view for 8 sources, as well as preview and program.
  • Built in media pool graphics storage for 20 RGBA stills.
  • Built in DVE with borders and drop shadow.
  • Transitions include cut, mix, dip, SMPTE wipes and more.
  • 1 upstream keyer including chroma keyer plus 2 downstream keyers.
  • 1 auxiliary output with aux switching buttons and LCD screen for viewing.
  • Built in audio mixer live mixes embedded audio from all video inputs and independent audio inputs.
  • Balanced XLR stereo analog audio inputs.
  • Internal sources include black, color bars, two color generators and 2 media player outputs.
  • Ethernet connection for computer connection. Mac and Windows control panel software included.
  • Compatible with all ATEM Broadcast Control Panels.
  • Black Burst and HD-Tri-Sync genlock input for integration into large systems.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Blackmagic Design ATEM Television Studio Pro HD Live Production Switcher
  • SD Card with Software and Manual
  • Blackmagic Design 1 Year Limited Warranty
