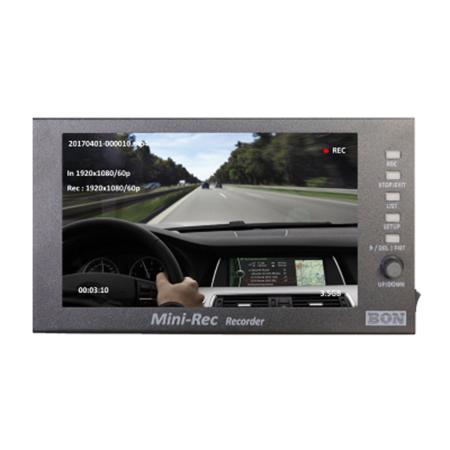

Bon Monitors Mini-Rec 7" Full HD LED Recorder/Monitor
See all Bon Monitors items

Bon Monitors Mini-Rec 7" Full HD LED Recorder/Monitor, 1024x600

SKU: BMBONMR

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Bon Monitors Mini-Rec Specifications

  • Screen Size

    7.0"

  • Resolution

    1024 x 600

  • Pixel Pitch

    0.15 x 0.15mm

  • Luminance

    350cd/m2

  • Back Light

    LED

  • Display Area (HxV)

    153.6 x 90mm

  • Input

    1x HDMI

  • Output

    1x HDMI
    1x Audio - Line Out (Bypass, for Headphone/Speaker Connection)

  • Input Signal Format

    HDMI: Maximum 1080/60p

  • Video Bit Rate

    1Mbps - 15Mbps

  • Storage

    USB Memory (Not Included)

  • USB Type

    USB 2.0, USB 3.0

  • Input Formats (Recordable)

    1920x1080 60p/59.94p/50p, 1920x1080 60i, 59.94i, 50i, 1920x1080 29.97p, 25p, 24p, 23.98p, 1280x720 60p/59.94p/50p, NTSC, PAL

  • Recording Formats

    1920x1080 60p/60i, 1280x720 60p/50p

  • File Format

    MP4

  • Recording Capacity (Approx.)

    1.5GB/hour (at Medium-High Quality), 4GB/hour (at High Quality)

  • PC File Manager

    PC Software Included

  • Preview Mode

    Thumbnail Still Images / Play

  • Power Requirement

    DC (7V - 24V)

  • Power Consumption

    19.5W

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Operating Humidity

    20% - 80% RH

  • Dimensions (WxHxD)

    203.5 x 115 x 28.3mm (8.01 x 4.53 x 1.11")

  • Weight

    750g (26.46 oz)

  • UPC Code

    889716000524

About Bon Monitors Mini-Rec

Mini-Rec is a H.264 recorder with 7" LCD that can help camera/PC recording. After recording, user can playback the recorded file by selecting from the list of files on the screen. User can also cut and edit the recorded file before moving it to the PC for editing and publising. Any kind of USB memory (High Writing Speed is recommended) can be used for Mini-Rec recording.

• On-Camera Monitoring/Recording
• Thumbnails Preview
• Editing of Recorded Files
• Clip Compatibility with Adobe Premiere, Sony Vegas
• USB 2.0/3.0 Memory Support
• DC/Battery Power (Sony FP Battery)
• Max 1080/60p Recording (Full HD)
• Max 6 hours Recording

Various Input Formats
It accepts various formats and can record them and stop by timer.

Quick Review and File Management
User can see the list of recordings in the USB storage, review the thumbnails and delete some unwanted recordings without connecting to a PC.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Bon Monitors Mini-Rec 7" Full HD LED Recorder/Monitor
  • PC Software
  • Bon Monitors Warranty
