Bon Monitors BSM-153H 15" Ultra Bright LED Field Monitor, 1024x768
See all Bon Monitors items

Bon Monitors BSM-153H 15" Ultra Bright LED Field Monitor, 1024x768

SKU: BMBSM153H

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Bon Monitors BSM-153H 15" Ultra Bright LED Field Monitor, 1024x768 Specifications

  • Screen Size

    15"

  • Resolution

    1024 x 768

  • Pixel Pitch

    0.297mm

  • Color

    8-bit

  • Viewing Angle( deg. )

    160(H), 160(V)

  • Luminance of White

    1500 cd/m2

  • Contrast

    700:1

  • Back Light

    LED

  • Display Area (H x V)

    304.128 x 228.096mm

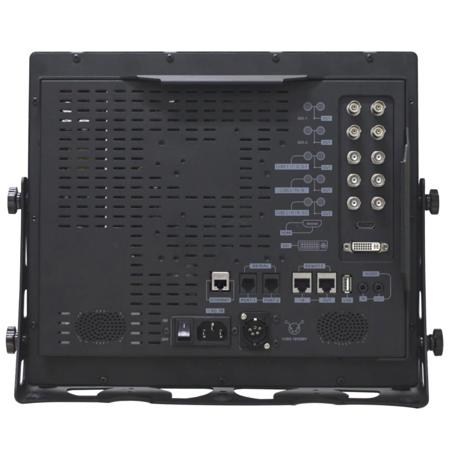

  • Input

    2x BNC: HD/SD-SDI, 3G/1.485G/270M
    3x BNC: Analog(YPbPr/CVBS/S-Video/RGB)
    1x HDMI: HDMI (with HDCP v.1.1), 19pin Female
    1x DVI: DVI-I, 24pin, Female
    1x VGA: DVI-I to VGA Jack (with gender)

  • Output

    2x BNC: SDI-1/2 Active Loop Output
    3x BNC: Analog(YPbPr/CVBS/S-Video/RGB)

  • Composite Analog Input Level

    1.0Vp-p(with sync), NTSC/PAL

  • YC(S-Video) Analog Input Level

    Y: 1.0Vp-p
    C: 0.286Vp-p

  • Component (Y/Pb/Pr) Analog Input Level

    Y: 1.0Vp-p
    Pb: 0.7Vp-p
    Pr: 0.7Vp-p

  • Component (R/G/B) Analog Input Level

    G:1.0Vp-p(with Sync)
    B: 0.7Vp-p
    R: 0.7Vp-p

  • PC-RGB, Sync Analog Input Level

    R, G, B: 0.7Vp-p
    H/V Sync: 4V +/- 1Vp-p

  • Input Signal Format: SMPTE 425M AB

    1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
    1080i (60/59.94/50)

  • Input Signal Format: 2K, SMPTE 428M

    2048 x 1080, 24p/psf, 23.98p/psf

  • Input Signal Format: SMPTE 274M/292M

    1920 x 1080i (60, 59.94, 50)
    1920 x 1080p (30, 29.97, 25, 24, 24sF, 23.98, 23.98sF)

  • Input Signal Format: SMPTE 296M

    1280 x 720p/60, 59.94, 50

  • Input Signal Format: SMPTE 260M

    1920 x 1035i/60, 59.94

  • Input Signal Format: SMPTE 125M/259M

    720 x 480i/60, 59.94, 720 x 576i/50

  • Input Signal Format: ITU R-BT.656

    576i(50)

  • Input Signal Format: Composite

    720 x 480i(NTSC)/ 576i(PAL)

  • Input Signal Format: Component, VGA

    480i/p to 1920 x 1080i/p

  • Input Signal Format: DVI Signal

    480i/p to 1920 x 1080i/p

  • Input Signal Format: HDMI Digital

    1920 x 1200i/p (de-embedded Audio 2ch)

  • Audio Input/output

    1x Phone Jack In: Line In(Stereo)
    2x Phone Jack Out: Line Out(Stereo), Headphone Out(Front, Stereo)
    2x Speaker Out: 2+2W, Stereo

  • Ports

    1x Ethernet: Control/Update, GPI-7 Port, RJ-45P Jack
    2x GPIO: GPI-7 Port, RJ-45P Jack
    2x Serial: RS-422, RJ-11P Jack
    1x USB: For firmware update

  • Power Requirements

    AC(100-230V, 50/60Hz)

  • Power Consumption

    44Watts

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    20 to 80% RH

  • Dimensions (W x H x D)

    Main Body: 332.5 x 285.0 x 55.0mm / 13.05 x 11.22 x 2.16"
    With Stand: 367.5 x 297.5 x 125mm / 14.5 x 11.7 x 4.9"

  • Weight

    5.0kg / 11.0lbs

  • UPC Code

    889716000203

About Bon Monitors BSM-153H 15" Ultra Bright LED Field Monitor, 1024x768

BSM-153H is a 15" super bright monitor supporting 3G SDI. It can be easily installed/uninstalled on a rack or a jib plate.

• Waveform/Vectorscope
• Focus Assistance
• Closed Caption (CEA-608/708)
• 8 to 16ch Audio Level Meter
• UMD/IMD Mode (supports TSL 4.0)
• Various Markers (Preset, Custom)
• H/V Delay
• Zero/Under/Over Scan
• R/G/B/W Internal Patterns
• Monitor Controllable via Ethernet
• Rack & VESA Mount (Option)
• Firmware Update with USB Memory
• False Color
• Time Code Display
• Exposure Range Check
• AFD & V-CHIP(SDI Only)
• R,G,B or Gray Only Display
• Pixel-to-Pixel View
• Freeze Frame
• Tally Display (UMD)
• Firmware Update via Ethernet

Super Bright Screen
1500cd/m2 super bright screen allows users to watch the screen in strong sunlight without hood.

On-Screen/UMD Information Display
Large audio level meters, time code can be displayed at the top/bottom of screen, viewable in 1-2 meters(5 feet). Tally information is displayed under picture as an image.

Easy Mounting on Jimmy Jibs
Due to its lightweight & slim bezel, it can be easily mounted on jimmy jibs providing clear sight in jib operation.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Bon Monitors BSM-153H 15" Ultra Bright LED Field Monitor
  • Manual(CD)
  • Cleaner
  • Power Cable
  • DVI-to-VGA Adapter
  • Bon Monitors Warranty
