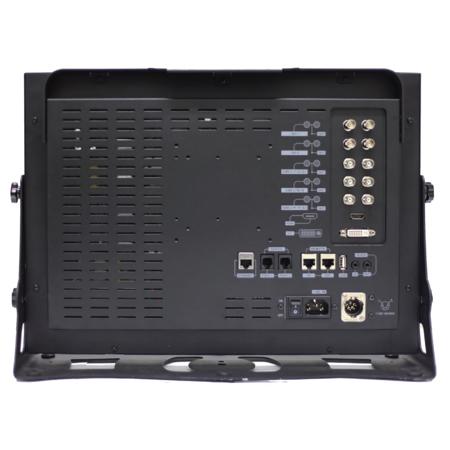

Bon Monitors BSM-183H 18.5" Ultra Bright LED Field Monitor, 1366x768
See all Bon Monitors items

Bon Monitors BSM-183H 18.5" Ultra Bright LED Field Monitor, 1366x768

SKU: BMBSM183H

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Bon Monitors BSM-183H 18.5" Ultra Bright LED Field Monitor, 1366x768 Specifications

  • Screen Size

    18.5"

  • Resolution

    1366 x 768

  • Pixel Pitch

    0.297mm

  • Color

    8-bit

  • Viewing Angle( deg. )

    170(H), 160(V)

  • Luminance of White

    1200 cd/m2

  • Contrast

    1000:1

  • Back Light

    LED

  • Display Area (H x V)

    409.4 x 230.4mm

  • Input

    2x BNC: HD/SD-SDI, 3G/1.485G/270M
    3x BNC: Analog(YPbPr/CVBS/S-Video/RGB)
    1x HDMI: HDMI (with HDCP v.1.1), 19pin Female
    1x DVI: DVI-I, 24pin, Female
    1x VGA: DVI-I to VGA Jack (with gender)

  • Output

    2x BNC: SDI-1/2 Active Loop Output
    3x BNC: Analog(YPbPr/CVBS/S-Video/RGB)

  • Composite Analog Input Level

    1.0Vp-p(with sync), NTSC/PAL

  • YC(S-Video) Analog Input Level

    Y: 1.0Vp-p
    C: 0.286Vp-p

  • Component (Y/Pb/Pr) Analog Input Level

    Y: 1.0Vp-p
    Pb: 0.7Vp-p
    Pr: 0.7Vp-p

  • Component (R/G/B) Analog Input Level

    G:1.0Vp-p(with Sync)
    B: 0.7Vp-p
    R: 0.7Vp-p

  • PC-RGB, Sync Analog Input Level

    R, G, B: 0.7Vp-p
    H/V Sync: 4V +/- 1Vp-p

  • Input Signal Format: SMPTE 425M AB

    1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
    1080i (60/59.94/50)

  • Input Signal Format: 2K, SMPTE 428M

    2048 x 1080, 24p/psf, 23.98p/psf

  • Input Signal Format: SMPTE 274M/292M

    1920 x 1080i (60, 59.94, 50)
    1920 x 1080p (30, 29.97, 25, 24, 24sF, 23.98, 23.98sF)

  • Input Signal Format: SMPTE 296M

    1280 x 720p/60, 59.94, 50

  • Input Signal Format: SMPTE 260M

    1920 x 1035i/60, 59.94

  • Input Signal Format: SMPTE 125M/259M

    720 x 480i/60, 59.94, 720 x 576i/50

  • Input Signal Format: ITU R-BT.656

    576i(50)

  • Input Signal Format: Composite

    720 x 480i(NTSC)/ 576i(PAL)

  • Input Signal Format: Component, VGA

    480i/p to 1920 x 1080i/p

  • Input Signal Format: DVI Signal

    480i/p to 1920 x 1080i/p

  • Input Signal Format: HDMI Digital

    1920 x 1200i/p (de-embedded Audio 2ch)

  • Audio Input/output

    1x Phone Jack In: Line In(Stereo)
    2x Phone Jack Out: Line Out(Stereo), Headphone Out(Front, Stereo)
    2x Speaker Out: 2+2W, Stereo

  • Ports

    1x Ethernet: Control/Update, GPI-7 Port, RJ-45P Jack
    2x GPIO: GPI-7 Port, RJ-45P Jack
    2x Serial: RS-422, RJ-11P Jack
    1x USB: For firmware update

  • Power Requirements

    AC(100-230V, 50/60Hz)

  • Power Consumption

    56Watts

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    20 to 80% RH

  • Dimensions (W x H x D)

    Main Body: 438.4 x 310.8 x 65.9mm / 17.2 x 12.2 x 2.5"
    With Stand: 473.4 x 326.3 x 140mm / 18.6 x 12.8 x 5.5"

  • Weight

    6.0kg / 12.2lbs

  • UPC Code

    889716000265

About Bon Monitors BSM-183H 18.5" Ultra Bright LED Field Monitor, 1366x768

BSM-183H is a 18.5" super bright monitor for outdoor shooting. It has lighter weight and smaller volume than general 17" broadcast monitor.

• Waveform/Vectorscope
• Focus Assistance
• Closed Caption (CEA-608/708)
• 8 to 16ch Audio Level Meter
• UMD/IMD Mode (supports TSL 4.0)
• Various Markers (Preset, Custom)
• H/V Delay
• Zero/Under/Over Scan
• R/G/B/W Internal Patterns
• Monitor Controllable via Ethernet
• Rack & VESA Mount (Option)
• Firmware Update with USB Memory
• False Color
• Time Code Display
• Exposure Range Check
• AFD & V-CHIP(SDI Only)
• R,G,B or Gray Only Display
• Pixel-to-Pixel View
• Freeze Frame
• Tally Display (UMD)
• Firmware Update via Ethernet

Super Bright Screen
1200cd/m2 super bright screen allows users to watch the screen in strong sunlight without hood.

Markers & Safety Areas

Various preset markers for frame line generation to guide the user shooting area. The safety area is displayed and can be adjusted by the user to check the safe viewable area.

Wide Viewing Angle
It has wide viewing angle so that the staffs can watch the screen at deep angle.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Bon Monitors BSM-183H 18.5" Ultra Bright LED Field Monitor
  • Manual(CD)
  • Cleaner
  • Power Cable
  • DVI-to-VGA Adapter
  • Bon Monitors Warranty
