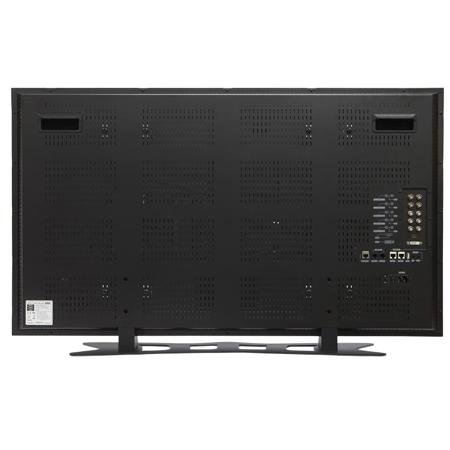

Bon Monitors BSM-463N3G 46" Full HD Broadcast LED Monitor, 1920x1080

BSM-463N3G is a 46" broadcast monitor that can accept 3G SDI signal.

• 2ch HD/SD-SDI Input & Output
• Monitor Control/Update via Ethernet/RS-422
• Waveform(SDI/HDMI/DVI/YPbPr,supporting parade mode)
• Focus Assistance
• Freeze Frame
• PIP, PAP(Between analog and digital input
• UMD/IMD Mode Display
• Zero/Under/Over Scan
• Closed Caption (CEA-608/708, SDI Only) Display
• De-embedded 8-16ch Audio Level Meter
• R,G,B and White Internal Patterns Display for Color Test
• 10-bit Signal Processor
• Copying the preset data to another monitor by USB
• Vector scope(SDI/HDMI/DVI/YPbPr)
• Exposure Range Check
• False Color
• AFD & V-CHIP display (SDI Only)
• Various Markers (EBU, 4:3, 16:9, 1.85:1, 2.35:1, etc.)
• H/V Delay, Blue/Mono, Pixel to Pixel
• Time Code Display (ATC_HD-SDI,DVITC_SD-SDI)
• Remote Control via GPI(RJ-45) Port
• 3 Color TALLY Lamp

3G SDI
Has two SDI input ports with 3G SDI support. Color temperatures and gamma correction are applied.

Control via Network / Menu Setting Copy
Users can update firmware or control monitor via RS-422 or ethernet port. Menu setting can be copied to other monitors with USB stick.

Waveform/Vectorscope
Luminance range and color range are monitorable with Waveform/Vectorscope. Users can monitor exact levels of Y/Cb/Cr/R/G/B.
