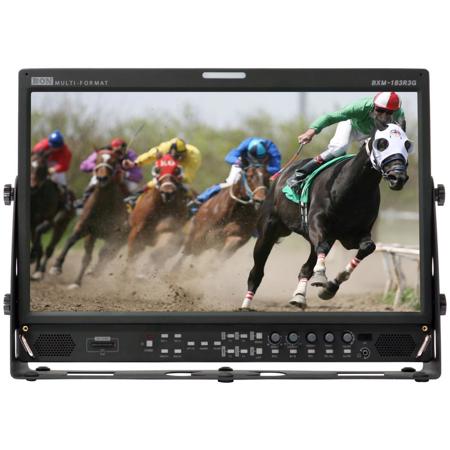

Bon Monitors BXM-183R3G 18.5" 12-Bit High-End Broadcast LED Monitor, 1366x768
See all Bon Monitors items

Bon Monitors BXM-183R3G 18.5" 12-Bit High-End Broadcast LED Monitor, 1366x768

SKU: BMBXM183R3G

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Bon Monitors BXM-183R3G 18.5" 12-Bit High-End Broadcast LED Monitor, 1366x768 Specifications

  • Screen Size

    18.5"

  • Resolution

    1366 x 768

  • Pixel Pitch

    0.1 x 0.3mm

  • Color

    8bit

  • Signal Processor

    12bit

  • Viewing Angle

    178(H), 178(V)

  • Luminance of White

    250cd/m2

  • Contrast

    1000:1

  • Back Light

    LED

  • Display Area (H x V)

    409.8 x 230.4mm / 16.1 x 9.0"

  • Input

    2x BNC: HD/SD-SDI, 3G/1.485G/270M
    3x BNC: Analog(YPbPr/CVBS/S-Video/RGB)
    1x HDMI: HDMI (with HDCP v.1.1), 19pin Female
    1x DVI: DVI-I, 24pin, Female
    1x BNC: External Sync, Black Burst & Tri-sync, 1.0Vp-p

  • Output

    2x BNC: SDI-1/2 Active Loop Output
    3x BNC: Analog(YPbPr/CVBS/S-Video/RGB)
    1x BNC: HDMI-to-SDI Conversion Out
    1x BNC: For External Synchronization

  • Composite

    1.0Vp-p(with sync), NTSC/PAL

  • YC(S-Video)

    Y: 1.0Vp-p, C: 0.286Vp-p

  • Component(Y/Pb/Pr)

    Y: 1.0Vp-p, Pb: 0.7Vp-p, Pr: 0.7Vp-p

  • Component(R/G/B)

    G: 1.0Vp-p(with Sync), B: 0.7Vp-p, R: 0.7Vp-p

  • PC-RGB, Sync Analog Input Level

    R, G, B: 0.7Vp-p, H/V Sync: 4V +/- 1Vp-p

  • Input Signal Format: SMPTE 425M AB

    Level A MS1, MS2, MS3, MS4
    Level B MS1, MS2, MS3, MS4

  • Input Signal Format: SMPTE 372M

    Dual HD-SDI YCbCr (4:2:2), 1080p
    Dual HD-SDI YCbCr/RGB (4:4:4), 1080i, 1080p, 720p

  • Input Signal Format: SMPTE 274M/292M

    1080i (60, 59.94, 50)
    1080p (30, 29.97, 25, 24, 24sF, 23.98, 23.98sF)

  • Input Signal Format: SMPTE 296M

    720p/60,59.94,50

  • Input Signal Format: SMPTE 260M

    1035i/60,59.94

  • Input Signal Format: SMPTE 125M/259M

    480i/60,59.94, 576i/50

  • Input Signal Format: 2K, SMPTE 428M

    2048 x 1080p(24/24sF/23.98/23.98sF)

  • Input Signal Format: ITU R-BT.656

    576i(50)

  • Input Signal Format: HDMI

    1080p(60)

  • Input Signal Format: DVI

    1080p(60)

  • Audio Input/output

    1x Phone Jack In: Line In(Stereo)
    2x Phone Jack Out: Line Out(Stereo), H/P Out(Front, Stereo)
    2x Speaker Out: 2+2W, Stereo

  • Recordable Input

    SDI, HDMI, CVBS

  • Codec

    H.264 (Video), AAC(Audio)

  • Video Bit Rate

    4Mbps

  • Internal Memory

    4GB

  • External Memory

    Maximum 32GB (Class 4 or higher SDHC Card)

  • Maximum Record Size

    2GB per file (About One Hour)

  • Recording Format

    1280 x 720p (30, 25)

  • File Format

    Mov

  • Play Mode

    Play, Reverse Play, 2x/4x/8x FF/REW, 1/2x/1/4x/1/8x Slow, 1x/2x/4x/8x Frame_FF/REW

  • Ports

    1x Ethernet: Control/Update, GPI-7 Port, RJ-45P Jack
    2x GPIO: GPI-7 Port, RJ-45P Jack
    2x Serial: RS-422, RJ-11P Jack
    1x USB: For firmware update

  • Power Requirements

    DC 12/24V, AC(100-230V, 50/60Hz)

  • Power Consumption

    40Watts

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Operating Humidity

    20 to 80% RH

  • Dimensions (W x H x D)

    Main Body: 438.4 x 309.6 x 66.4mm / 17.2 x 12.2 x 2.6"
    With Stand: 473.4 x 326.3 x 140mm / 18.6 x 12.8 x 5.5"

  • Weight

    6.5kg / 14.3lbs

  • UPC Code

    889716000272

About Bon Monitors BXM-183R3G 18.5" 12-Bit High-End Broadcast LED Monitor, 1366x768

BXM-183R3G is a high-end broadcast monitor with 12bit video processor and multiple advanced features including 3G SDI input and HD recording.

• 12bit Signal Processor
• Focus Assistance
• Waveform
• Closed Caption (CEA-608/708)
• Time Code
• Exposure Range Check
• AFD & V-CHIP(SDI Only)
• H/V Delay
• Zero/Under/Over Scan
• Freeze Frame
• R/G/B/W Internal Patterns
• Rack & VESA Mount (Option)
• Thumbnail File List
• False Color
• Vector scope Display
• Gen-lock(video synchronization)
• 8 to 16ch Audio Level Meter
• UMD/IMD Mode (supports TSL 4.0)
• Various Markers
• Pixel-to-Pixel View
• Fast Motion Mode
• Blending, PaP, PiP
• Color Calibration Software(Optional, Training Required)

Reference Image Overlay
Users can save still frames to mix with live video using a transparency slider. The overlay image enables directors to check if the current on-set position and angle of camera is as same as the stored position and angle.

HDMI-to-SDI Converter
BON's embedded HDMI-to-SDI converter preserves the HDMI's original resolution in its SDI output stream. Shooters can watch their video on an external monitor without blur.

Auto Recording(GPIO,TimeCode)
Recording starts automatically when time code is being generated through SDI camera.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Bon Monitors BXM-183R3G 18.5 " 12-Bit High-End Broadcast LED Monitor
  • Manual(CD)
  • Cleaner
  • Power Cable
  • DVI-to-VGA Adapter
  • AC Adaptor
  • Bon Monitors Warranty
