Blackmagic Design Audio and KeyKode Reader for Cintel Scanner

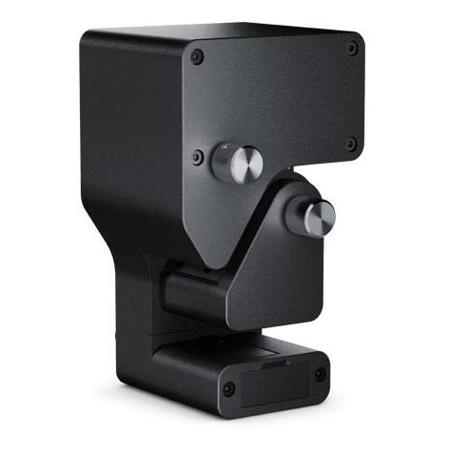

Audio and KeyKode Reader lets you capture high quality audio along with KeyKode information from the film. The reader features a magnetic audio head or deep red LED illumination with advanced optics, electro formed slits, and precision mechanical adjustments for azimuth, zenith and yaw to give you the best possible audio capture with incredible high frequency response. The reader also features a precision capstan and encoder that allows for automatic correction of wow and flutter, allowing you to accurately capture audio, even when the scanner speed changes!

The KeyKode Reader provides you with unique identification numbers for each film frame so they can be easily correlated with the corresponding video timecode. Installation is easy and all you need to do is bolt the reader onto the front of the chassis and it will automatically be detected.

Features

Equalisation
Optical audio SMPTE, Magnetic audio IEC.

Supported KeyKode Scan Speeds
All scanner speeds.

LED Type
Optical audio and KeyKode Deep RED.

Supported Audio Scan Speeds
6fps-125% chosen film rate i.e. 24fps film frame rate has a 30fps maximum scan speed.

Supported Optical Audio Types
Variable Area.
Variable Density.

Optical Audio 35mm
Bandwidth: 40Hz-16kHz +-2dB
SnR Signal to Noise Ratio: Transparent film base -65dB
Wow and Flutter: < 0.15%

Optical Audio 16mm
Bandwidth: 40Hz-7kHz +-2dB
SnR Signal to Noise Ratio: Transparent film base -65dB
Wow and Flutter: < 0.3%

Magnetic Audio
Engagement Pressure: 15 grams
Bandwidth: 32Hz-14kHz +-2dB
SnR Signal to Noise Ratio: -55dB
Wow and Flutter: < 0.3%

Full Modulation Level
-18dBFS

Headphones Level
-18dBu at 50Ohm load
