Blackmagic Design URSA Mini Single-Slot 2.5" SSD Recorder
See all Blackmagic Design items

Blackmagic Design URSA Mini Single-Slot 2.5" SSD Recorder

SKU: BMCINURSASSD

This item is no longer available.

See all Used options (2) from $194

Recommended Alternatives

Blackmagic Design URSA Mini Pro Recorder: Picture 1 regular
Blackmagic Design URSA Mini Pro 12K Recorder
$469.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Normand S : fast delivery

Reviews about this item

Review Summary

2019-01-01T17:17:42

Rated 3 out of 5

great if you need a ton of media

I can get 900+ minutes of 4.6k 60p BRAW 12:1 on my Ursa Mini Pro with a 2TB Samsung Evo 860 SSD for the price of a 128gb Cfas card. In hindsight, I'm a little scared to have that much data on one drive (yes you can get smaller drives, but I trust the Samsung Evo 860s, and the only ones on the approved list currently are 2TB and 4TB). And the SSD recorder does add some bulk to the rig, but the biggest problem is that it takes up the main SDI output. If you're using the EVF and the SSD recorder, you have no outputs for a client monitor or a second on-camera monitor. I'm hoping this will be fixed by a simple BNC t-connector to split the side SDI signal, but I haven't received my connector to test yet. (can't split the main-out on the back when the SSD recorder is plugged in because it turns into a data feed instead of SDI). You can easily disconnect the two cables for the SSD recorder, however, and record to CFast cards while using the SDI output on the back when necessary.

Tristan C.

2018-06-20T11:35:55

Rated 5 out of 5

Great product but must give out your SDI plugs

Great product, it does make the camera a bit more bulky and it will take you SDI connectors that’s the only inconvenience for me, other than that it works great.

DEL S.

2018-02-06T09:42:38

Rated 5 out of 5

What a great addition to my three Blackmagic URSA 4K

I really didn't want to purchase these SSD drives but it is differently an insurance policy to capture all the footage I need during a shoot. What a great addition to my three Blackmagic URSA 4K

Jerry T.

Blackmagic Design SSD Recorder Specifications

Connections

Connections

Jump to...

  • SDI Inputs

    1x BNC for Data Link with URSA Mini Pro

  • SDI Outputs

    1x BNC for Data Link with URSA Mini Pro

  • Computer Interface

    USB Type-C for software updates

Media

Jump to...

  • Media

    1 x 2.5" SSD for HD, Ultra HD and 4.6K

Supported Codecs

Jump to...

  • Supported Codecs

    CinemaDNG RAW; CinemaDNG RAW 3:1; CinemaDNG RAW 4:1; ProRes 444 XQ; ProRes 444; ProRes 422 HQ; ProRes 422; ProRes 422 LT
    ProRes 422 Proxy

Operating Systems

Jump to...

  • Operating Systems

    Mac OS X 10.11 El Capitan,
    macOS 10.12 Sierra or later
    Windows 8.1 or Windows 10

Power Requirements

Jump to...

  • Power Connection

    12-pin molex connector with pass-through to battery plate

EMC Certifications

Jump to...

  • EMC Certifications

    FCC, CE and KCC

Environmental

Jump to...

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 45 deg. C (-4 to 113 deg. F)

  • Relative Humidity

    0% to 90% non-condensing

General

Jump to...

  • Dimensions

    102.3 x 47 x 143.11mm (4.03 x 1.85 x 5.63")

  • Weight

    575g (20.28 oz)

Other

Jump to...

  • UPC Code

    9338716005066

About Blackmagic Design SSD Recorder

FEATURED REVIEWS

Great product but must give out your SDI plugs

By DEL S.

Great product, it does make the camera a bit more bulky and it will take you SDI connectors that’s the only inconvenience for me, other than that it works great.

What a great addition to my three Blackmagic URSA 4K

By Jerry T.

I really didn't want to purchase these SSD drives but it is differently an insurance policy to capture all the footage I need during a shoot. What a great addition to my three Blackmagic URSA 4K

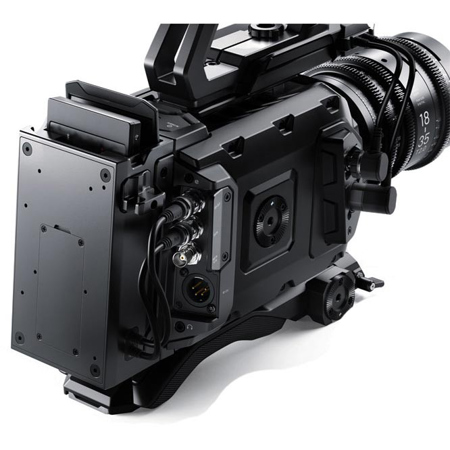

Blackmagic URSA Mini SSD Recorder lets you record Cinema DNG or ProRes files onto standard 2.5" SSD Media with your URSA Mini Pro camera! That means you can use commonly available and inexpensive high capacity solid state media! The SSD media can record full resolution 4K and 4.6K 12-bit RAW files. Plus, SSD media comes in much larger sizes so you can record longer without having to change cards!

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Blackmagic Design URSA Mini Single-Slot 2.5 " SSD Recorder
  • Blackmagic Design 1 Year Limited Warranty
