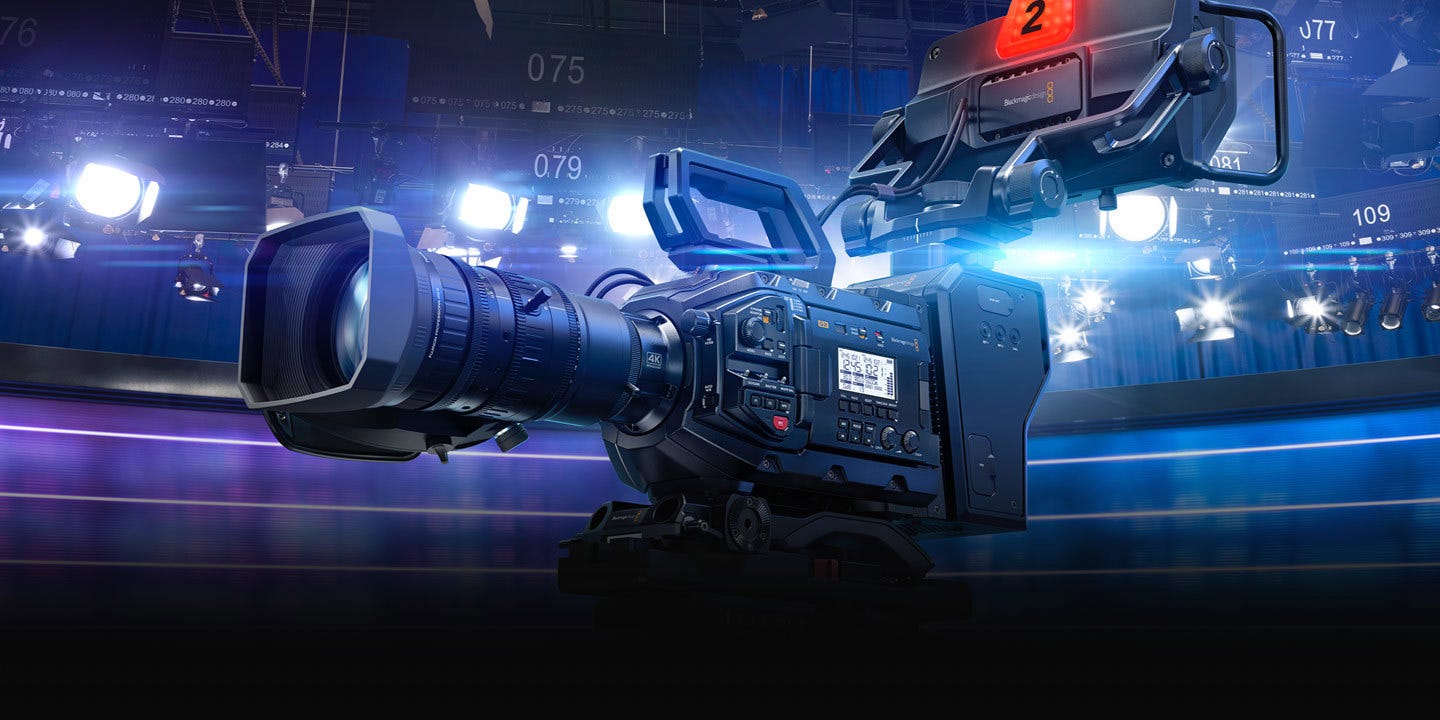

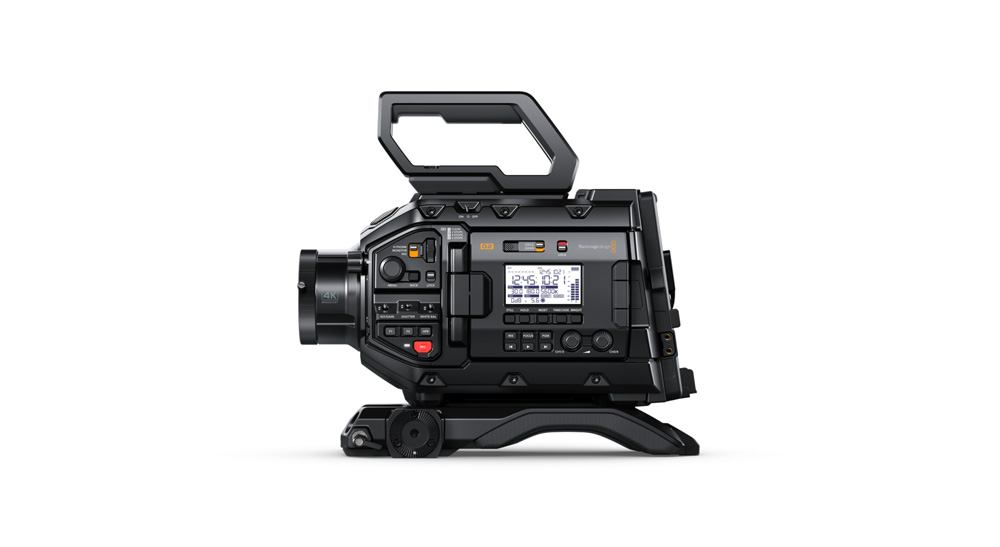

Blackmagic Design URSA Broadcast G2 Camera

SKU: BMCNURSAC4G2 MFR: CINEURSAMWC6KG2
Earn VIP Reward Points

Key Features

  • Capture stunning 6K footage with the URSA Broadcast G2's high-resolution digital cinema sensor.
  • Enjoy exceptional low light performance with Dual Native ISO for cleaner broadcast video.
  • Use the included active EF mount or the installed B4 lens mount for ultimate lens flexibility.
  • Record to CFast 2.0, SD cards, or external SSDs via USB-C for seamless media management.
  • Create dynamic content with frame rates up to 60 fps in Ultra HD and 150 fps in HD.
  • Get pristine audio with 2 XLR inputs featuring phantom power, ideal for professional sound.
See More Product Details

Product Options

FREE 2-Day Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$159.99

3 Year

$215.99

4 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

BYRON S : Waht are people using for a shotgun mount for this camera?
MICHAEL C : The pics seem to show optional accessories, can you tell me exactly what comes in the box?
Shopper : Why Did You Choose This?BRETT S : Needed a new broadcast camera at church and the fact that it can double as a 6k cinema camera made this a no brainerMike H : I think it may be better than the G2 for mu useDORIAN W : It has now combine 3 cameras into 1 system. And for $4000 it is amazing! Now this camera is great in low light as well.STEVEN B : need an updated broadcast camera for live recording

Reviews about this item

Review Summary

2023-08-29T06:20:48

Rated 5 out of 5

Great camera for sports!

Amazing Cameras. However, the viewfinder on one of them quit working after 6 months of use.

ACCOUNTS P.

2021-12-22T07:29:12

Rated 5 out of 5

Like it

It?s great performance.

PANHARITH H.

2021-12-19T16:04:57

Rated 5 out of 5

great broadcast camera with future options

it's pretty much everything i expected a broadcast camera to be just with the added feature of being able to shoot in a higher resolution. having the ef mount was nice because i could at least get it up and running with my current lenses while i save up money for the fujinon b4 lens

STEVEN B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design URSA Broadcast G2 Specifications

Included Items

Included Items

Jump to...
  • Additional Included Items

    2x Short 1/4" Top Handle Screws
    8x EF Mount Screws
    4x V-Lock Plate Spare Screws
    DaVinci Resolve Studio Wallet
    DaVinci Resolve Studio Activation Key

Camera Features

Jump to...
  • Effective Sensor Size

    2/3 inch sensor size when using 4K B4 mount (Actual sensor size 23.10mm x 12.99mm)

  • Lens Mount

    B4 2/3 inch installed
    Active EF mount also included

  • Lens Control

    Electronic control via 12-pin broadcast connector. Control via EF mount pins when using URSA Mini Pro EF Mount with compatible EF lenses.

  • Lens Correction

    In-camera correction of color fringing when using compatible broadcast lenses.

  • Dynamic Range

    13 Stops

  • Dual Native ISO

    0dB and 18dB gain.

  • Sensitivity at 0dB Gain

    f11 with 2160p59.94.
    f12 with 2160p50.
    At 2,000 lux with 89.9% reflectance.
    Additional 1.1 stop light loss using 4K B4 mount.

  • Signal to Noise Ratio

    64.62dB for 2160p
    Ultra HD scaled from 5.3K

  • Built in ND Filters

    Four position ND filter wheel with clear, 2 stop, 4 stop and 6 stop ND filters.

  • Focus

    Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus.

  • Iris Control

    Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video and extended video mode.

  • Screen Dimensions

    4" (10.16cm)

  • Screen Type

    LCD capacitive touchscreen.

  • Controls

    Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys and 2 assignable shortcut keys (VTR and RET) on compatible broadcast lenses.

  • ProRes Shooting Resolution & Frame Rates

    3840 x 2160 (Ultra HD) up to 60 fps from Ultra HD window or scaled from 5.3K windowed sensor
    3840 x 2160 (Ultra HD) up to 50 fps scaled from full sensor
    1920 x 1080 (HD) up to 120 fps scaled from 2.7K windowed sensor
    1920 x 1080 (HD) up to 60 fps scaled from Ultra HD or 5.3K windowed sensor
    1920 x 1080 (HD) up to 50 fps scaled from full sensor

  • H.265 Shooting Resolution & Frame Rates

    3840 x 2160 (Ultra HD) up to 60 fps from Ultra HD window or scaled from 5.3K windowed sensor
    3840 x 2160 (Ultra HD) up to 50 fps scaled from full sensor

  • H.264 Shooting Resolution & Frame Rates

    1920 x 1080 (HD) up to 60 fps scaled from Ultra HD or 5.3K windowed sensor
    1920 x 1080 (HD) up to 50 fps scaled from full sensor

  • Blackmagic RAW

    6144 x 3456 (6K) up to 50 fps
    6144 x 2560 (6K 2.4:1) up to 60 fps
    5376 x 3024 (5.3K 16:9) up to 60 fps
    3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps
    3840 x 2160 (Ultra HD) up to 60 fps
    1920 x 1080 (HD) up to 150 fps (Shooting Resolution & Frame Rates)

  • Project Frame Rates

    23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps.
    Off-speed frame rates up to 60p in Ultra HD and up to 150p in HD.

  • Metadata Support

    Automatically populated lens data from electronic B4 lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

  • Timecode Clock

    Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Connections

Jump to...
  • SDI Video Inputs

    1

  • SDI Video Outputs

    1

  • SDI Monitor Outputs

    1

  • SDI Rates

    1.5G, 3G, 6G, 12G.

  • Analog Audio Inputs

    2x XLR switchable between mic, line and AES digital audio. Phantom power support.

  • Analog Audio Outputs

    1x 3.5mm headphone jack, supports iPhone style headset for talkback.

  • Reference Inputs

    Tri-Sync/Black Burst/Timecode.

  • Lens Control

    1x 12-pin Hirose Broadcast Lens Connector

  • Remote Control

    1x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.

  • Computer Interface

    1x USB Type-C 3.1 Gen 2 with power delivery for external drive recording and connecting Blackmagic Focus and Zoom Demand. 1x USB Type-C for software updates.

  • Microphone

    Integrated stereo microphone.

  • Built in Speaker

    1x mono speaker.

Standards

Jump to...
  • SD Video Standards

    None

  • HD Video Standards

    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60

  • Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

  • SDI Compliance

    SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10

  • SDI Audio Sampling

    48 kHz and 24 bit

  • Media

    2x CFast 2.0 card slots, 2x SD UHS-II card slots, 1x USB-C 3.1 Gen 2 expansion port with power delivery for recording to external media.

  • Media Format

    Can format media to ExFAT for Windows and Mac or HFS+ for Mac (file systems).

Supported Codecs

Jump to...
  • Codecs

    Apple ProRes 422 HQ, Apple ProRes 422, H.265 SDI (10-bit 4:2:2), H.265 High (10-bit 4:2:0), H.265 Medium (10-bit 4:2:0), H.265 Low (10-bit 4:2:0), H.264 SDI (10-bit 4:2:2), H.264 High (8-bit 4:2:0), H.264 Medium (8-bit 4:2:0), H.264 Low (8-bit 4:2:0), Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1

  • Codecs (Contd.)

    Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5

Control

Jump to...
  • External Control

    Lens control of compatible lenses using Blackmagic Zoom Demand and Blackmagic Focus Demand, Blackmagic SDI Control Protocol, iPad control via Bluetooth, 1 x 2.5mm LANC for lens and record control.

Color Corrector

Jump to...
  • Color Corrector

    DaVinci YRGB.

Talkback and Tally

Jump to...
  • Talkback

    SDI Channels 15/16 and iPhone headset.

  • Live Tally Indicator

    Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder.

Storage Features

Jump to...
  • Storage Type

    2 x CFast 2.0
    2 x SD UHS-II cards
    1 x high speed USB-C expansion port for external media.
    2.5 inch SSD using optional URSA Mini Recorder

  • Storage Rates

    Storage rates based on 30 frames per second.

    6144 x 3456 (6K):
    Blackmagic RAW 3:1 - 323 MB/s
    Blackmagic RAW 5:1 - 194 MB/s
    Blackmagic RAW 8:1 - 121 MB/s
    Blackmagic RAW 12:1 - 81 MB/s
    Blackmagic RAW Q0 - 242 to 483 MB/s
    Blackmagic RAW Q1 - 162 to 387 MB/s
    Blackmagic RAW Q3 - 108 to 277 MB/s
    Blackmagic RAW Q5 - 65 to 162 MB/s

  • Storage Rates (Contd.)

    6144 x 2560 (6K 2.4:1):
    Blackmagic RAW 3:1 - 240 MB/s
    Blackmagic RAW 5:1 - 144 MB/s
    Blackmagic RAW 8:1 - 90 MB/s
    Blackmagic RAW 12:1 - 60 MB/s
    Blackmagic RAW Q0 - 180 to 359 MB/s
    Blackmagic RAW Q1 - 120 to 287 MB/s
    Blackmagic RAW Q3 - 80 to 205 MB/s
    Blackmagic RAW Q5 - 49 to 120 MB/s

    5376 x 3024 (5.3K 16:9):
    Blackmagic RAW 3:1 - 248 MB/s
    Blackmagic RAW 5:1 - 149 MB/s
    Blackmagic RAW 8:1 - 94 MB/s

  • Storage Rates (Contd..)

    Blackmagic RAW 12:1 - 63 MB/s
    Blackmagic RAW Q0 - 186 to 371 MB/s
    Blackmagic RAW Q1 - 125 to 297 MB/s
    Blackmagic RAW Q3 - 84 to 213 MB/s
    Blackmagic RAW Q5 - 51 to 125 MB/s

    3728 x 3104 (3.7K 6:5 anamorphic):
    Blackmagic RAW 3:1 - 177 MB/s
    Blackmagic RAW 5:1 - 106 MB/s
    Blackmagic RAW 8:1 - 67 MB/s
    Blackmagic RAW 12:1 - 45 MB/s
    Blackmagic RAW Q0 - 133 to 265 MB/s
    Blackmagic RAW Q1 - 89 to 212 MB/s

  • Storage Rates (Contd...)

    Blackmagic RAW Q3 - 60 to 152 MB/s
    Blackmagic RAW Q5 - 36 to 89 MB/s

    3840 x 2160 (Ultra HD):
    Apple ProRes 422 HQ - 110 MB/s
    Apple ProRes 422 - 73.6 MB/s
    H.265 SDI - 12.3 MB/s
    H.265 High - 10.8 MB/s
    H.265 Medium - 7.8 MB/s
    H.265 Low - 3.2 MB/s
    Blackmagic RAW 3:1 - 127 MB/s
    Blackmagic RAW 5:1 - 77 MB/s
    Blackmagic RAW 8:1 - 48 MB/s
    Blackmagic RAW 12:1 - 32 MB/s
    Blackmagic RAW Q0 - 96 to 190 MB/s

  • Storage Rates (Contd....)

    Blackmagic RAW Q1 - 64 to 153 MB/s
    Blackmagic RAW Q3 - 43 to 109 MB/s
    Blackmagic RAW Q5 - 26 to 64 MB/s

    1920 x 1080:
    Apple ProRes 422 HQ - 27.5 MB/s
    Apple ProRes 422 - 18.4 MB/s
    H.264 SDI - 7.0 MB/s
    H.264 High - 5.6 MB/s
    H.264 Medium - 3.2 MB/s
    H.264 Low - 1.8 MB/s
    Blackmagic RAW 3:1 - 19 MB/s
    Blackmagic RAW 5:1 - 12 MB/s
    Blackmagic RAW 8:1 - 7.8 MB/s
    Blackmagic RAW 12:1 - 5.2 MB/s

  • Storage Rates (Contd.....)

    Blackmagic RAW Q0 - 23 to 47 MB/s
    Blackmagic RAW Q1 - 16 to 37 MB/s
    Blackmagic RAW Q3 - 10 to 27 MB/s
    Blackmagic RAW Q5 - 6 to 16 MB/s

  • Recording Formats

    Apple ProRes 3840 x 2160 and 1920 x 1080 with film, video or extended video dynamic range or custom 3D LUT.
    H.265 3840 x 2160 with film, video or extended video dynamic range or custom 3D LUT.
    H.264 1920 x 1080 with film, video or extended video dynamic range or custom 3D LUT.

  • Recording Formats (Contd.)

    Blackmagic RAW Q0, Q1, Q3, Q5, 3:1, 5:1, 8:1 and 12:1 at 6144 x 3456, 6144 x 2560, 5376 x 3024, 3728 x 3104, 3840 x 2160, 1920 x 1080 recorded in non-linear 12 bit with film dynamic range and extended video, video or custom 3D LUT embedded in metadata.

Software

Jump to...
  • Software Included

    Blackmagic OS
    DaVinci Resolve Studio for Mac and Windows including activation key
    Blackmagic Camera Setup
    Blackmagic RAW Player
    Blackmagic RAW QuickLook Plugin
    Blackmagic RAW SDK
    Blackmagic RAW Speed Test

Operating Systems

Jump to...
  • Operating Systems

    Mac 10.15 Catalina, Mac 11.1 Big Sur or later.
    Windows 10, 64-bit.

Power Requirements

Jump to...
  • Power Supply

    1 x External 12V DC 100W power supply with 100 - 240V AC 50/60Hz IEC C14 input.

  • External Power Input

    1 x 4-pin XLR port for external mains power supply or battery use.
    1 x 12-pin Molex connector under rear battery plate.

  • Power Output

    +12V 4-pin XLR regulated output on side of camera
    +12V D-Tap regulated output on VLock battery plate

  • Power

    Rear camera mount compatible with industry standard V-mount or gold mount battery plates.

Environmental

Jump to...
  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 113 Degree F (-20 Degree to 45 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...
  • Dimensions

    5.9 x 10.95 x 9.93" (14.9 x 27.8 x 25.2cm)

  • Weight

    7.83 lbs (3.55kg)

  • UPC Code

    9338716007435

Related Articles & Videos

New Blackmagic URSA Broadcast G2 Camera Features 6K Digital Film Sensor

New Blackmagic URSA Broadcast G2 Camera Features 6K Digital Film Sensor

Blackmagic Design is the market leader in technology for feature films, post-production, television broadcasts, and live events. Thanks to the founders' decades of experience, the media industry has been forever changed. Featuring wide dynamic range images alongside e...
Read more

98 Accessories for Blackmagic Design URSA Broadcast G2 Camera

  • All Accessories (98)
  • Lenses (2)
  • Viewfinders (1)
  • Memory & Storage (5)
  • Batteries & Power Supply (11)
  • Adapters & Mounts (2)
  • Monitor & Recorder (2)
  • Remote & Remote Accessories (1)
  • Microphones (3)
  • Microphones & Audio (4)
  • Headphones (1)
  • Bags & Cases (2)
  • Tripod Kits (3)
  • Rain Covers (3)
  • Flash & Lighting (56)
  • Converters (2)

About Blackmagic Design URSA Broadcast G2

FEATURED REVIEWS

Great camera for sports!

By ACCOUNTS P.

Amazing Cameras. However, the viewfinder on one of them quit working after 6 months of use.

Like it

By PANHARITH H.

It?s great performance.

Blackmagic Design URSA Broadcast G2

Blackmagic Design URSA Broadcast G2.

The Blackmagic URSA Broadcast Camera is the world’s most flexible camera for broadcast performance. It’s intended to be built to house three cameras in one sleek design — acting as a 4K production camera, 4K studio camera, or 6K digital film camera. Its ENG camera controls positioned around the camera, updated color science and YRGB color corrector, and advanced 6K digital film sensor are just some of the reasons why broadcasters will find this camera to be essential.

Broadcast Production Camera.

Offering Extreme Versatility.

Aside from the changeable lens mount, the Blackmagic URSA Broadcast G2 camera offers an array of features to personalize this camera for your specific project — whether it be broadcast production, live studio, or digital cinema. You can record to common SD cards, UHS-II cards, CFast 2.0 cards, or external USB disks, using common file formats such as H.265, ProRes, and Blackmagic RAW. Basically, it's compatible with all video software and broadcast media management systems. You can also have full remote control of all cameras with its optional focus and zoom demands for lens control, and the URSA Broadcast G2 works with all ATEM switchers using the single SDI cable.

Native 6K Sensor Brings Film Quality Content.

Native 6K Sensor Brings Film Quality Content.

The Blackmagic URSA Broadcast G2 camera can handle anything from on-location newsworthy broadcasts to multi-camera sporting events. This is partly thanks to its 6K sensors with a resolution of 6144 x 3456 and changeable lens mount. You can get a 4K window of the sensor for Ultra HD broadcast use when using B4 lenses. If you change to a PL or EF lens mount, you’ll now have full 6K resolution to utilize. This is revolutionary image quality in the broadcast space.

Exceptional Low Light Quality.

Exceptional ISO Range, Optimal In Low Light.

You will have no problem shooting day to night with the Blackmagic URSA Broadcast. Its exceptional low light performance can gain from -12dB (100 ISO) up to +36dB (25,600 ISO). Its been designed to reduce grain and noise in your images — no matter the location or light — while maintaining the full dynamic range of the sensor. This can be set via a camera switch, the LCD menu, or remotely using the SDI remote camera control protocol. You’ll never capture grainy footage again.

Built In LCD Controls.

Built In LCD Controls.

With a built in LCD that folds out, you can both monitor and control the camera. While URSA Broadcast G2 features lots of physical buttons and knobs, using the LCD, you also get on screen status and touch screen controls. The built in touchscreen also includes a heads up display with the most important shooting information, as well as menus for all camera settings, LUTs and custom presets. Plus behind the LCD there are extra buttons, as well as knobs for audio levels. There's even programmable function buttons that can have functions assigned to them, such as zebra, false color, focus peaking, LUTs and more! Plus you can change the function assigned to each button in the on screen menus.

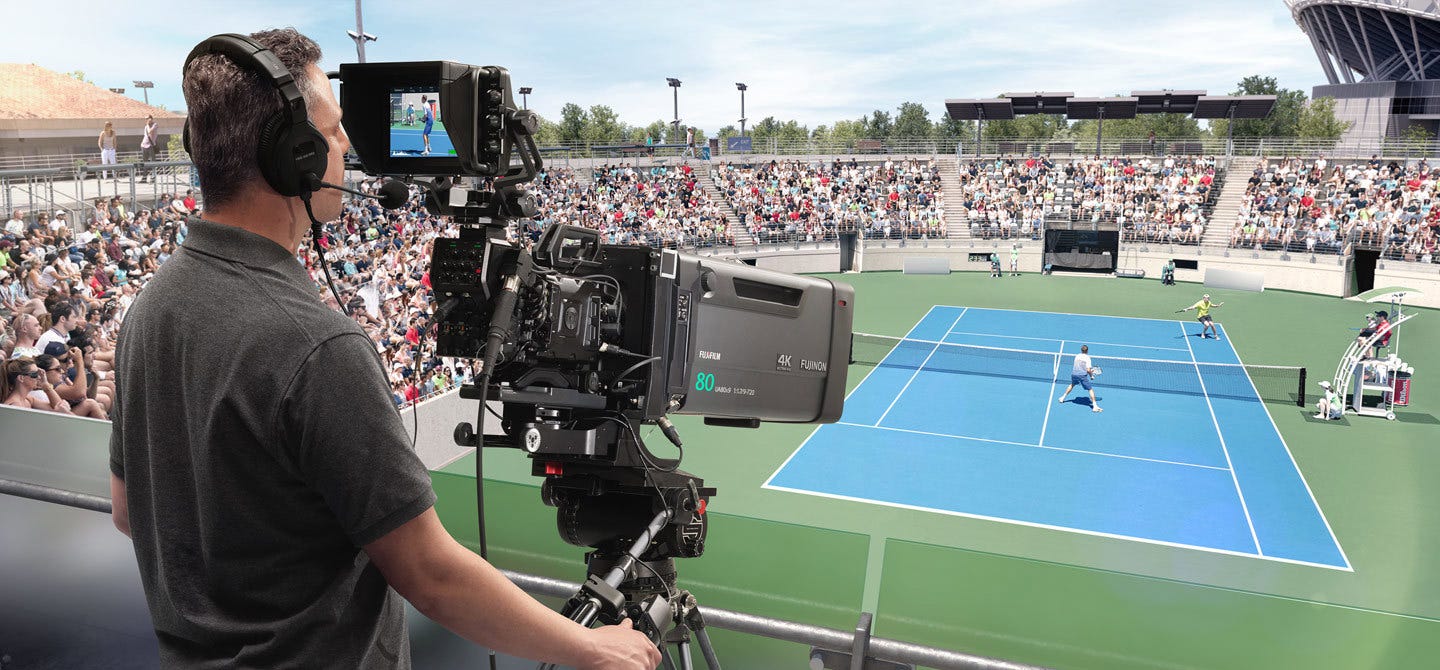

Program Video Monitoring.

Program Video Monitoring.

If you're doing live production, sometimes you need to monitor program video back from the switcher. Simply press the camera’s PGM button and the viewfinder will switch from the camera display to the program return feed from the switcher. A built in speaker also lets you monitor the switcher audio as well. Program return is a fantastic feature as sometimes on large live shows, camera operators can be left waiting a long time for their camera to be used, so program return lets them watch the show while they wait. This means that even if the camera operator is a large distance away from the switcher, they can still keep up with what is happening and remain alert.

Featuring Blackmagic Generation 5 Color Science.

The URSA Broadcast G2 camera comes packed with Blackmagic’s Generation 5 Color Science for an optimal display of any scene. The camera also features high quality optical neutral density (ND) filters that let you swiftly alter the light entering the camera. The ¼, 1/16th and 1/64th stop filters have also been designed to match this new science to improve colorimetry. This means you can use different combinations of aperture and shutter angle to fit your specific needs.

Featuring Blackmagic Generation 5 Color Science.

Features.

  • 3 Cameras In One: Broadcast Production Camera / Live Studio Camera / Digital Cinema Camera a
  • Exceptional Low Light Performance
  • Compatible with B4 Broadcast Lenses
  • Built In Optical ND Filters
  • Use Common Media and File Formats!
  • Dual Media Slots for NonfStop Recording

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Capture stunning 6K footage with the URSA Broadcast G2's high-resolution digital cinema sensor.
  • Enjoy exceptional low light performance with Dual Native ISO for cleaner broadcast video.
  • Use the included active EF mount or the installed B4 lens mount for ultimate lens flexibility.
  • Record to CFast 2.0, SD cards, or external SSDs via USB-C for seamless media management.
  • Create dynamic content with frame rates up to 60 fps in Ultra HD and 150 fps in HD.
  • Get pristine audio with 2 XLR inputs featuring phantom power, ideal for professional sound.

What's in the box:

  • Blackmagic Design URSA Broadcast G2 4K UHD Digital Cinema Camera
  • 4K B4 Lens Mount Installed
  • B4 Turret Dust Cap
  • EF Mount with Dust Cap
  • V-Lock Battery Plate Installed
  • URSA 12V 100W Power Supply
  • URSA Mini Shoulder Pad
  • URSA Mini Top Handle & Rubber Stopper
  • Viewfinder Mounting Plate
  • 2x 1/4" Baseplate Screws
  • 2x Long 1/4" Top Handle Screws
  • (See specification section for additional included items)
  • Blackmagic Design 1 Year Limited Warranty
