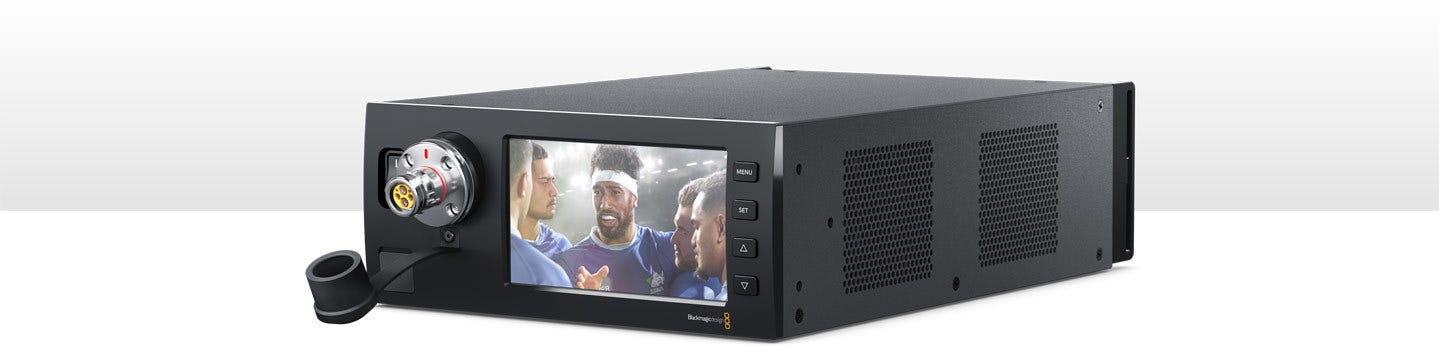

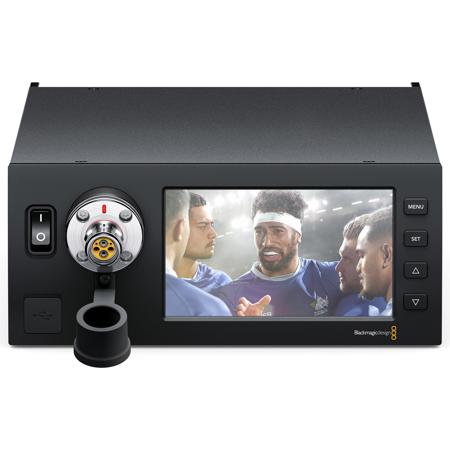

Blackmagic Design Studio Fiber Converter

If you’re working in a studio or out at a large sporting venue, you often need to place cameras far apart. While SDI connections are common, the limited range of SDI makes it hard to use it over long distances. Traditionally, you would need to run multiple cables and expensive extenders for power, talkback, tally, video and audio. This makes set up incredibly complex and increases the chances of a technical problem. Now you can solve this problem by converting all essential connections and power into a single convenient SMPTE fiber cable that can run incredibly long distances. That means cameras can be placed anywhere and connected back to broadcast trucks parked outside of a venue or back to a central control room in a studio. Best of all, SMPTE fiber is a global broadcast industry standard so you can use cables and connection points that are commonly available. Blackmagic fiber converters are also affordable, so traditional broadcasters, new web broadcasters, AV producers, houses of worship and educators can all use the same high end broadcast technology!

The Blackmagic Camera Fiber Converter attaches to the back of your URSA Mini or URSA Broadcast camera. In addition to converting all of the audio, video, camera control and talkback into fiber, it also adds professional studio camera controls to the back of your camera. You get control for return feeds, dual intercom controls with the ability to mix in program audio, record, focus and iris controls, headset connectors, audio and more. The camera converter also includes a VLock mount plate on the top for attaching accessories such as a professional Blackmagic Studio Viewfinder. The Blackmagic Camera Fiber Converter has connections for your Ultra HD camera feed, 3 HD return feeds, full remote camera control, PTZ, multiple channels of talkback, tally and more!

The Blackmagic Camera Fiber Converter and Blackmagic Studio Fiber Converter provide 2 dual channel digital talkback connections that are compatible with professional 5 pin XLR talkback headsets. The camera converter even has convenient controls for mixing in program return audio with your talkback headset so you can adjust the volume as needed while talking to the rest of the crew. The talkback intercoms can be used for both production and engineering. In addition, there is a backup channel available for troubleshooting in case the fiber link is down. This backup talkback channel automatically switches over and uses the data pair in the SMPTE cable if the fiber is not working. The Blackmagic Camera Fiber Converter also includes a standard 10 pin connection for tracker talkback, which is perfect when both headset connections are in use and you need to feed an additional talkback connection through to your crane operator.
