Blackmagic Design Teranex Mini - SDI Distribution 12G Converter
See all Blackmagic Design items

Blackmagic Design Teranex Mini - SDI Distribution 12G Converter

SKU: BMCONEADA
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Blackmagic Design Teranex Mini IP Video 12G Converter
$605.00
undefined undefined: Picture 1 regular

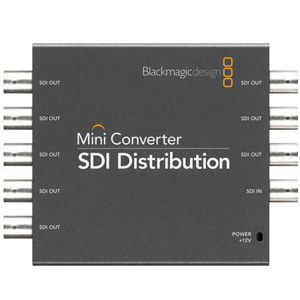

Blackmagic Design SDI Distribution Mini Converter
$185.00
undefined undefined: Picture 1 regular

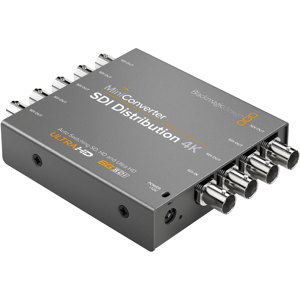

Blackmagic Design Mini Converter SDI Distribution 4K
$349.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Blackmagic Design Teranex Mini Specifications

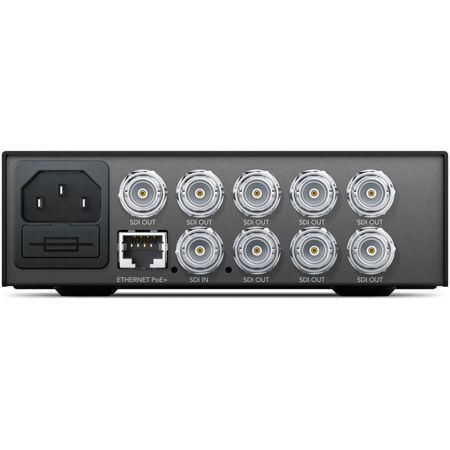

  • Connections

    SDI Video Input: 1x 12G-SDI SD/HD/2K/4K auto switching
    SDI Video Output: 8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input
    Multi Rate Support: Automatic switching between SD/HD/2K and 4K
    Updates and Configuration: USB or Ethernet
    Re-Clocking: Yes

  • Standards: SD Format Support

    525/29.97 NTSC, 625/25 PAL

  • Standards: HD Format Support

    720p50, 59.94, 60
    1080i50, 59.94, 60
    1080PsF23.98, 24
    1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60

  • Standards: 2K Format Support

    1080PsF23.98, 24, 125
    1080p23.98, 24, 25

  • Standards: Ultra HD Format Support

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60

  • Standards: 4K Format Support

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

  • Standards: SDI Compliance

    SMPTE 259M, 292M, 296M, 372M, 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ST 2081 & ST 2082

  • Standards: SDI Video Rates

    SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI

  • Standards: SDI Video Sampling

    4:2:2 and 4:4:4

  • Standards: SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24-bit

  • Standards: SDI Color Space

    YUV & RGB

  • Software

    Software Control: Mac OS X and Windows software upgrade via USB and Ethernet
    Internal Software Upgrade: Via included updater application

  • Settings Control

    Basic Settings Control: Mini Switches, USB and Ethernet via free software utility
    Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons

  • Power Supply

    1x built-in international AC power supply with IEC C14 inlet
    IEC Power cable required
    90 - 240V AC Input

  • Power Over Ethernet

    Can be powered via 48V DC using PoE+ (power over Ethernet)

  • Power Consumption

    18W

  • Operational Voltage Range

    90 - 240V AC

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -20 to 60 deg. C / -4 to 140 deg. F

  • Relative Humidity

    0 to 90% non-condensing

  • Dimensions

    170 x 140 x 44mm / 6.69 x 5.51 x 1.73"

  • Weight

    580g / 20.46oz

About Blackmagic Design Teranex Mini

Distribute a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60. Perfect for distributing a single SDI signal to multiple devices such as monitors, switchers and encoders.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Blackmagic Design Teranex Mini SDI Distribution 12G Converter
  • Internal Power Supply
  • Software and Manual SD Card
  • Blackmagic Design 3 Year Limited Warranty
