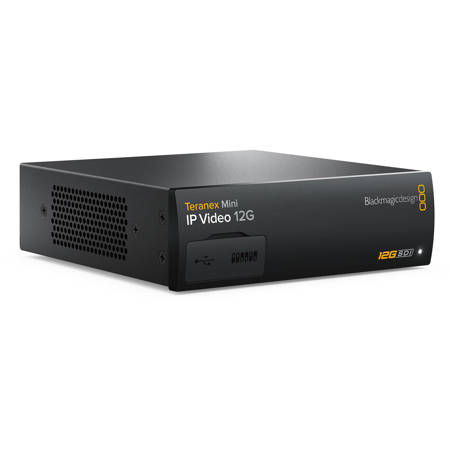

Blackmagic Design Teranex Mini IP Video 12G Converter
Blackmagic Design Teranex Mini: Picture 1 thumbnail
Blackmagic Design Teranex Mini: Picture 2 thumbnail
Blackmagic Design Teranex Mini: Picture 3 thumbnail
See all Blackmagic Design items

Blackmagic Design Teranex Mini IP Video 12G Converter

SKU: BMCONIPV MFR: CONVNTRM/OB/IPV
Be the first to review this itemAsk a Question
$605.00
OR
$101/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Convert IP video signals to 12G-SDI for high resolution broadcasting and post-production workflows.
  • Enjoy low latency video conversion with TICO encoding/decoding for seamless live streaming events.
  • Supports multi-platform integration with Mac and Windows for flexible video distribution setups.
  • Ensure a reliable connection with auto-switching between HD-SDI, 6G-SDI, and 12G-SDI formats.
  • Simplify setup with the included software for easy configuration and internal software upgrades.
  • Remotely control via Ethernet or use the optional Teranex Mini Smart Panel for quick adjustments.
See More Product Details
Special Order?Estimated to Ship: 09/10/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$31.99

2 Year

$69.99

3 Year

$94.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?JAMES G : BlackMagic Design makes good products and we need it to stream video from church.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Blackmagic Design Teranex Mini Specifications

Connections

Connections

Jump to...

  • SDI Video Inputs

    1x 10-bit HD-SDI, 6G-SDI and 12G-SDI

  • SDI Video Outputs

    2x 10-bit HD-SDI, 6G-SDI and 12G-SDI

  • Ethernet

    Gigabit ethernet supports 3G-SDI up to 1080p60 using TICO encoding/decoding. Optional 10G optical data ethernet supporting Ultra HD up to 2160p60 using TICO encoding/decoding.

  • Multi Rate Support

    Auto detection of HD-SDI, 6G-SDI or 12G-SDI.

  • Updates

    USB 2.0 high speed (480Mb/s) interface or via Ethernet.

  • Configuration

    Ethernet or USB 2.0 for firmware updates and IP address setting.

  • Reclocking

    On all SDI outputs, auto switching between high definition, 6G-SDI or 12G-SDI video.

Standards

Jump to...

  • HD Video Standards

    720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60 Automatic detection of Level A or Level B SDI on 1080p50, 1080p59.94 and 1080p60

  • 2K Video Standards

    2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

  • Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

  • 4K Video Standards

    4K DCI 25p
    4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.

  • SDI Video Rates

    SDI video input is switchable between high definition, ultra high definition and 4K. SDI switches between 1.5 Gb/s HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI.

  • SDI Video Sampling

    4:2:2 plus 4:4:4 up to 4K DCI 30p

  • SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24-Bit.

  • SDI Color Precision

    10-Bit 4:2:2 and 4:4:4

  • SDI Color Space

    YUV or RGB for inputs, YUV for SDI outputs.

  • SDI Auto Switching

    Automatically selects between HD-SDI, 6G-SDI and 12G-SDI.

  • SDI Metadata Support

    Video payload identification ancillary data as per SMPTE 352M.

Display

Jump to...

  • Display

    Optional Teranex Mini Smart Panel with 2.2 inch LCD for menu settings.

Software

Jump to...

  • Software Control

    Blackmagic IP Video Setup and Videohub Router Control Software included on SD card for Windows and Mac.

  • Internal Software Upgrade

    Via included updater application.

Operating Systems

Jump to...

  • Operating Systems

    Mac 10.14 Mojave, Mac 10.15 Catalina or later
    Windows 8.1 and 10.

Control

Jump to...

  • Control

    Built in switches, setup software utility, or optional front mounted Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons.

Power Requirements

Jump to...

  • Power Supply

    IEC power cable required. 90 - 240V AC input.

  • Power Fail Protection

    Settings preserved and restored instantly at power on.

  • Power over Ethernet

    Can be powered via 48V DC using PoE+ (power over Ethernet).

  • Power Consumption

    16 Watts

Environmental

Jump to...

  • Temperature

    Operating: 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
    Storage: -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...

  • Dimensions

    6.69 x 5.51 x 1.75" (16.99 x 14 x 4.45cm)

  • Weight

    20.48 oz (581g)

Other

Jump to...

  • UPC Code

    9338716003901

About Blackmagic Design Teranex Mini

Because the Teranex Mini IP Video 12G Converter is an innovative and high-quality product from the reputable brand, Blackmagic Design, it offers a seamless solution for converting video to IP and routing it over your existing Ethernet network. This reliable and durable device also enables the conversion of IP video back to SDI, providing a versatile tool for your video transmission needs.

The Teranex Mini IP Video 12G Converter utilizes standard Blackmagic Videohub software and hardware control panels, making it user-friendly and easy to configure. This allows for the efficient switching of IP video over Ethernet, as effortlessly as SDI signals.

Equipped with 12G-SDI and the low latency broadcast quality TICO codec, this converter ensures high-quality video transmission suitable for professional use. It allows for the routing of HD over the built-in Gigabit Ethernet connection, or Ultra HD over 10G Ethernet with an optional 10G SFP.

Moreover, this converter is capable of converting video signals from SDI to 12G-SDI or SDI to HDMI, and between different video formats such as HD-SDI, SD-SDI, and analog video. This makes the Teranex Mini IP Video 12G Converter an essential tool for those seeking to optimize their video conversion and transmission processes.

Blackmagic Design Teranex Mini Features

  • Auto detection of HD-SDI, 6G-SDI or 12G-SDI
  • Reclocking on all SDI outputs, auto switching between high definition, 6G-SDI or 12G-SDI video
  • Control via built in switches, setup software utility, or optional front mounted Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons

Warranty Information

This product has a limited warranty of 36 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Convert IP video signals to 12G-SDI for high resolution broadcasting and post-production workflows.
  • Enjoy low latency video conversion with TICO encoding/decoding for seamless live streaming events.
  • Supports multi-platform integration with Mac and Windows for flexible video distribution setups.
  • Ensure a reliable connection with auto-switching between HD-SDI, 6G-SDI, and 12G-SDI formats.
  • Simplify setup with the included software for easy configuration and internal software upgrades.
  • Remotely control via Ethernet or use the optional Teranex Mini Smart Panel for quick adjustments.

What's in the box:

  • Teranex Mini IP Video 12G Converter
  • SD Card with Software
  • Manual
  • Blackmagic Design 3 Year Limited Warranty
