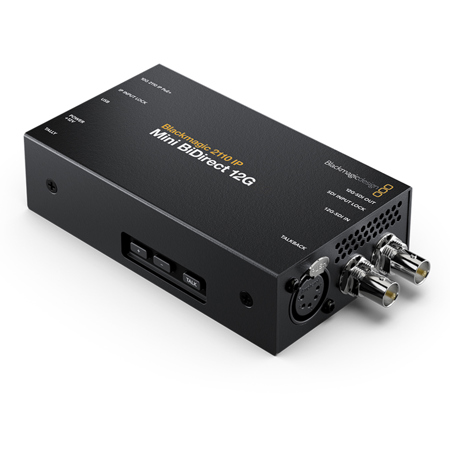

Blackmagic Design 2110 IP Mini BiDirect 12G Converter

Be at the forefront of broadcast technology with the Blackmagic 2110 IP Mini BiDirect 12G Converter. This compact, bi-directional 12G-SDI converter is engineered to seamlessly connect your broadcast cameras to SMPTE-2110 IP systems. It efficiently handles both the SDI camera feed and the SDI program return within a single converter, making it a versatile tool for your broadcasting needs.

The compact size of the Blackmagic 2110 IP Mini BiDirect 12G Converter allows for handheld, in-line use, while its 5-pin XLR talkback headset connection, talkback volume control, and press-to-talk button ensure easy communication. It supports SD, HD, and Ultra HD standards up to 2160p60, providing high-quality video output.

Powering the converter is a breeze, thanks to its ability to draw power from the RJ-45 10G Ethernet or the included DC power supply. This feature makes it an ideal choice for building 2110 IP Video Systems for Broadcast, Live Production, and AV.

The Blackmagic 2110 IP Mini BiDirect 12G Converter is part of Blackmagic Design's extensive range of SMPTE-2110 IP video products, which include converters, video monitors, audio monitors, and cameras. These products support Ultra HD using cost-effective 10G Ethernet, making them a smart choice for professionals seeking high-quality, affordable solutions.

The Blackmagic 2110 IP Mini BiDirect 12G Converter conforms to the SMPTE ST-2110 standard for IP video, including PTP clocks and NMOS support. This allows you to make connections using a video router panel, simplifying your setup process.

The Blackmagic 2110 IP Mini BiDirect 12G Converter is designed to integrate SDI equipment into 2110 IP broadcast systems. It's compatible with Blackmagic Studio Cameras, Blackmagic Audio Monitor 12G G3, and the SmartView 4K G3, allowing you to build most of your SMPTE-2110 system without additional converters.

The Blackmagic 2110 IP Mini BiDirect 12G Converter supports the NMOS interface specifications, enabling all 2110 IP video devices to operate together as a large virtual router. It also supports IS-04 for discovery and registration of IP video devices and IS-05 for connection management between IP video devices.

The Blackmagic 2110 IP Mini BiDirect 12G Converter delivers true 10-bit broadcast video quality, ensuring all images are a perfect pixel-for-pixel transmission of the original SDI source. It also includes SDI re-clocking, so all devices in your studio receive a regenerated signal with very low SDI jitter.

The Blackmagic 2110 IP Mini BiDirect 12G Converter supports all SD, HD, and Ultra HD standards up to 2160p60, making it a versatile tool for your broadcasting needs. It also supports remote administration for settings and updates, providing you with the flexibility to manage your equipment from a distance.

With its ability to be powered from the Ethernet connection, the Blackmagic 2110 IP Mini BiDirect 12G Converter offers a flexible and redundant power source, ensuring your broadcast operations continue smoothly even in the event of a power outage.

In conclusion, the Blackmagic 2110 IP Mini BiDirect 12G Converter is a robust, versatile, and cost-effective solution for professionals seeking to integrate their SDI equipment into 2110 IP broadcast systems.
