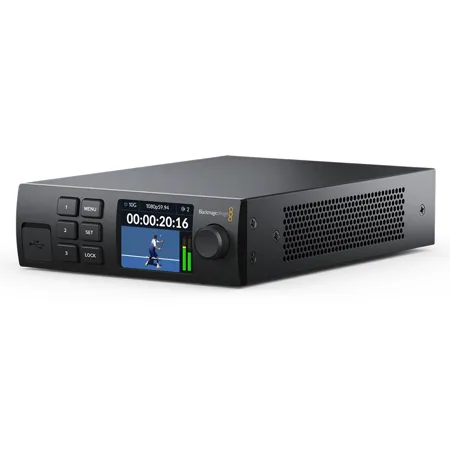

Blackmagic Design 2110 IP 3x3G Converter

From professional broadcasting to live production and AV, the Blackmagic 2110 IP Converter 3x3G is your go-to solution for seamless video conversion. This 3-channel rack mount HD SMPTE-2110 converter is designed to integrate SDI equipment into 2110 IP broadcast systems, offering a low-cost way to transform your video equipment to SMPTE-2110.

The Blackmagic 2110 IP Converter features three separate 3G-SDI input channels and three separate 3G-SDI output channels, allowing you to connect up to three 3G-SDI video devices to SMPTE-2110 in a single converter. All three channels can be sent via a simple RS-45 style 10G Ethernet connection, enabling you to use common low-cost CAT-6 Ethernet cables.

This model also includes a reference video output that's timed to the PTP clock, and a front panel LCD for easy monitoring. It conforms to the SMPTE ST-2110 standard for IP video, including PTP clocks and NMOS support, so you can make connections using a video router panel.

The Blackmagic 2110 IP Converter supports all SD, HD, and Ultra HD standards up to 2160p60, making it a versatile choice for any video production needs. It also supports the NMOS protocol for building a virtual router, allowing all 2110 IP video devices to operate together as a large virtual router.

With its simple 10G Ethernet for low cost, the Blackmagic 2110 IP Converter is available in models with RJ-45 connectors for simple Cat6 copper cables or SFP sockets for optical fiber modules and cables. This makes it incredibly easy to install, even in complex broadcast systems.

The Blackmagic 2110 IP Converter delivers true 10-bit broadcast video quality, ensuring all images are a perfect pixel for pixel transmission of the original SDI source. It also includes SDI re-clocking so all devices in your studio receive a regenerated signal with very low SDI jitter.

Whether you're connecting live production switchers, disk recorders, streaming processors, cameras, TVs, or more, the Blackmagic 2110 IP Converter is a reliable and cost-effective solution for your video conversion needs.
