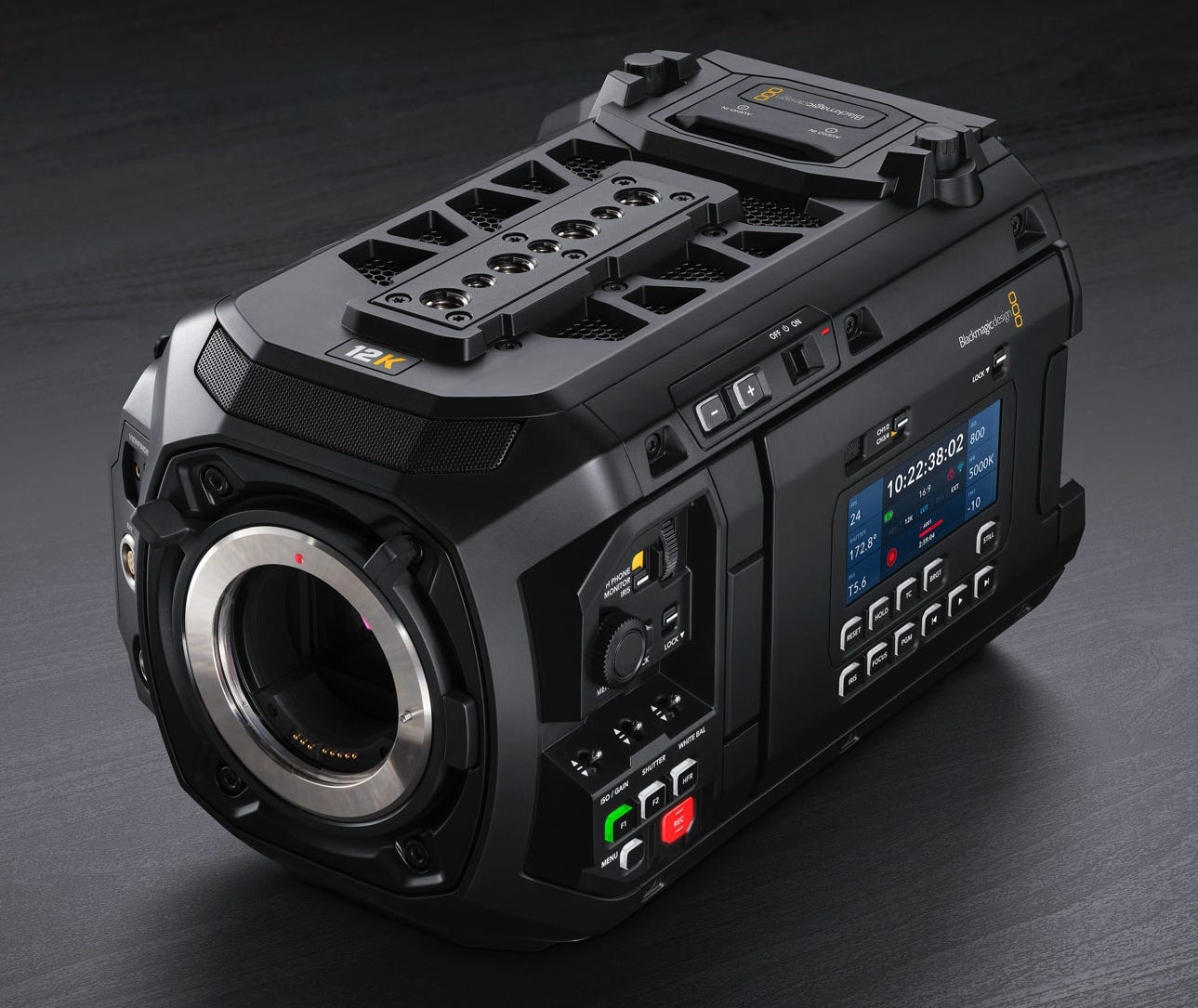

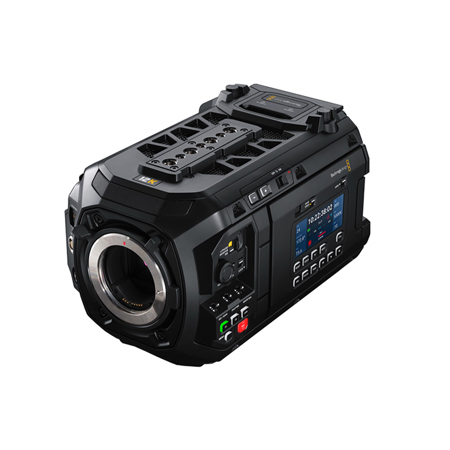

Blackmagic Design URSA Cine 12K LF Cinema Camera Body, EF Mount

SKU: BMDCINEURSAA MFR: CINEURSAA12KLFBODY
Earn VIP Reward Points

Key Features

  • Capture stunning visuals with the URSA Cine 12K's large format sensor for unparalleled image quality.
  • Achieve cinematic brilliance with 16 stops of dynamic range, perfect for HDR video production.
  • Record in multiple formats up to 12K, ensuring flexibility for any professional video workflow.
  • Enjoy seamless integration with EF lenses, offering precise lens control and metadata support.
  • Experience superior low light performance, ideal for capturing detail in challenging conditions.
  • Utilize built-in ND filters for perfect exposure in any lighting, enhancing your video capture.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design URSA CINE Specifications

Camera Features

Camera Features

Jump to...
  • Effective Sensor Size

    35.64mm x 23.32mm (Large Format)

  • Pixel Pitch

    2.9 microns

  • Lens Mount

    URSA Cine lockable EF mount. Interchangeable with optional URSA Cine PL mount

  • Lens Control

    Lens control of compatible EF lenses. Lens data from compatible PL lenses and control of some PL lenses

  • Dynamic Range

    16 Stops

  • Shooting Formats

    12,288 x 8040 (12K 3:2 open gate)
    12,288 x 6480 (12K 16:9)
    12,288 x 6912 (12K 17:9)
    12,288 x 5112 (12K 2.4:1)
    9648 x 8040 (12K 6:5)

    9408 x 6264 (9K 3:2)
    8688 x 4896 (9K 16:9)
    9312 x 4896 (9K 17:9)
    9312 x 3864 (9K 2.4:1)
    7680 x 6408 (9K 6:5)

    8192 x 5360 (8K 3:2 open gate)
    8192 x 4608 (8K 16:9)
    8192 x 4320 (8K 17:9)
    8192 x 3408 (8K 2.4:1)

  • Shooting Formats (Contd.)

    6432 x 5360 (8K 6:5)

    4096 x 2680 (4K 3:2 open gate)
    4096 x 2304 (4K 16:9)
    4096 x 2160 (4K 17:9)
    4096 x 1704 (4K 2.4:1)
    3216 x 2680 (4K 6:5)

  • Frame Rates

    Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected

  • High Speed Frame Rates

    12K 3:2 open gate up to 80 fps
    12K 17:9 up to 100 fps
    12K 2.4:1 up to 120 fps
    9K 3:2 Super 35 up to 100 fps
    8K / 4K 3:2 open gate up to 144 fps
    8K / 4K 2.4:1 up to 224 fps

  • Built in ND Filters

    Button activated ND filters with clear, 2-stop, 4-stop and 6-stop IR ND filters

  • Focus

    Focus button turns on peaking, auto focus available using compatible lenses

  • Iris Control

    Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode

  • Screens

    2x Monitoring Screens
    1x Camera Status Screen

  • Monitoring Screen Dimensions

    5" (12.7cm)

  • Monitoring Screen Resolution

    1920px x 1080px

  • Monitoring Screen Brightness

    1500 nits

  • Monitoring Screen Type

    LCD capacitive touchscreen

  • Metadata Support

    Automatically populated lens data from compatible EF lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes

  • Controls

    Touchscreen menus on 5 inch screen. Push buttons for other controls. 7 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF

  • Timecode Clock

    Highly accurate timecode clock. Less than 1 frame drift every 8 hours

Connections

Jump to...
  • Total Video Outputs

    2

  • SDI Rates

    1.5G, 3G, 6G, 12G

  • Analog Audio Inputs

    2x XLR analog switchable between mic, line and AES audio. Phantom power support

  • Analog Audio Outputs

    1x 3.5mm headphone jack

  • Reference Inputs

    Tri-Sync/Black Burst and Timecode

  • Viewfinder

    1x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor

  • USB-C Monitor Outputs

    2x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors

  • Accessories

    1x 7-pin Lemo 'EXT' for power out, serial communication, and run/stop
    1x 3-pin Fischer 'RS' for power out and run/stop

  • Computer Interface

    2x USB-C side expansion ports for camera accessories
    Software updates using side USB-C closer to rear

  • Ethernet

    1x 10Gb/s RJ-45 connector supporting 10/100/1000/10G BASE-T for SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming

  • Microphone

    Integrated stereo microphone

  • Built in Speaker

    1x mono speaker

Standards

Jump to...
  • SD Video Standards

    None

  • HD Video Standards

    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60

  • Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

  • SDI Compliance

    SMPTE 292M, SMPTE 424 Level B, SMPTE 2081-1, SMPTE 2082-1

  • SDI Audio Sampling

    48 kHz and 24 bit

  • Media

    Blackmagic Media Module CF includes 2 x slots for CFexpress Type B media. Also compatible with optional Blackmagic Media Module 8TB or 16TB

  • Media Format

    Blackmagic

Supported Codecs

Jump to...
  • Codecs

    Blackmagic RAW Constant Bitrate 3:1, 5:1, 8:1, 12:1, 18:1, Q0, Q1, Q3, Q5
    H.264 Proxy in 1920 x 1080, 8-bit 4:2:0

Control

Jump to...
  • External Control

    Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, Wi-Fi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector

  • External Control (Contd.)

    Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses

Streaming

Jump to...
  • Direct Streaming

    Supports Secure Reliable Transport (SRT) and Real Time Messaging Protocol (RTMP) local live streaming using Ethernet or Wi-Fi, or global live streaming using an internet connection via Ethernet, Wi-Fi or USB-C cellular data

  • Network Management

    NTP: Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice.
    FTP: Download files from any drive attached to your camera using FTP
    Web Media Manager: Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera.
    SMB: File sharing using SMB

Storage Features

Jump to...
  • Storage Type

    2x CFexpress Type B

  • Storage Rates

    Based on 24 frames per second:
    12K - 12,288 x 8040:
    Blackmagic RAW 3:1 - 1,194 MB/s, Storage rates based on 24 frames per second.

    12K - 12,288 x 8040

    Blackmagic RAW 3:1 - 1,194 MB/s
    Blackmagic RAW 8:1 - 448 MB/s
    Blackmagic RAW 12:1 - 298 MB/s
    Blackmagic RAW 18:1 - 199 MB/s
    Blackmagic RAW Q0 - 298 to 1,432 MB/s
    Blackmagic RAW Q1 - 179 to 716 MB/s
    Q3 - 119 to 298 MB/s
    Q5 - 90 to 224 MB/s

  • Storage Rates (Contd.)

    9K - 9408 x 6264

    Blackmagic RAW 3:1 - 713 MB/s
    Blackmagic RAW 8:1 - 268 MB/s
    Blackmagic RAW 12:1 - 178 MB/s
    Blackmagic RAW 18:1 - 119 MB/s
    Blackmagic RAW Q0 - 178 to 856 MB/s
    Blackmagic RAW Q1 - 107 to 428 MB/s
    Blackmagic RAW Q3 - 71 to 178 MB/s
    Blackmagic RAW Q5 - 54 to 134 MB/s

  • Storage Rates (Contd..)

    8K - 8192 x 5360

    Blackmagic RAW 3:1 - 533 MB/s
    Blackmagic RAW 5:1 - 320 MB/s
    Blackmagic RAW 8:1 - 200 MB/s
    Blackmagic RAW 12:1 - 133 MB/s
    Blackmagic RAW Q0 - 133 to 319 MB/s
    Blackmagic RAW Q1 - 80 to 200 MB/s
    Blackmagic RAW Q3 - 53 to 133 MB/s
    Blackmagic RAW Q5 - 40 to 100 MB/s

  • Storage Rates (Contd...)

    4K - 4096 x 2680

    Blackmagic RAW 3:1 - 135 MB/s
    Blackmagic RAW 4:1 - 101 MB/s
    Blackmagic RAW 5:1 - 81 MB/s
    Blackmagic RAW 6:1 - 68 MB/s
    Blackmagic RAW Q0 - 34 to 81 MB/s
    Blackmagic RAW Q1 - 20 to 50 MB/s
    Blackmagic RAW Q3 - 13 to 34 MB/s
    Blackmagic RAW Q5 - 10 to 25 MB/s9K - 9408 x 6264 Blackmagic RAW 3:1 - 713 MB/s, 8K - 8192 x 5360 Blackmagic RAW 3:1 - 533 MB/s, 4K - 4096 x 2680 Blackmagic RAW 3:1 - 135 MB/s

  • Recording Formats

    Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions:
    (12,288 x 8,040), (12,288 x 6,912), (12,288 x 6,480), (12,288 x 5,112) and (9,648 x 8,040) with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies

  • Recording Formats (Contd.)

    Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at Super 35 windowed sensor resolutions:
    (9,408 x 6,264), (8,688 x 4,896), (9,312 x 4,896), (9,312 x 3,864) and (7,680 x 6,408) with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies

  • Recording Formats (Contd..)

    Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to:
    (8,192 x 5,360), (8,192 x 4,608), (8,192 x 4,320), (8,192 x 3,408) and (6,432 x 5,360) with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies

  • Recording Formats (Contd...)

    Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to:
    (4,096 x 2,680), (4,096 x 2,304), (4,096 x 2,160), (4,096 x 1,704) and (3,216 x 2,680) with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies

Software

Jump to...
  • Software

    URSA Cine Blackmagic OS
    DaVinci Resolve Studio for Mac and Windows including activation key
    Blackmagic Camera Setup
    Blackmagic RAW Player
    Blackmagic RAW QuickLook Plugin
    Blackmagic RAW SDK

  • Operating Systems

    Mac: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later
    Windows: Windows 10 and 11

Power Requirements

Jump to...
  • Power Input

    1x 8 pin Lemo compatible socket for +12V to 33V DC external power supply or battery

  • Power Output

    1x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply
    1x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply
    B-Mount battery plate including 2-pin connector with +12V regulated output from camera

Environmental

Jump to...
  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 113 Degree F (-20 Degree to 45 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions

    6 x 9.87 x 6" (15.24 x 25.09 x 15.24cm)

  • Weight

    Body Only: 8.2 lbs (3.71kg)

  • UPC Code

    9338716009774

Related Articles & Videos

Blackmagic Design Launches the URSA Cine 12K LF as Camera Body Only

Blackmagic Design Launches the URSA Cine 12K LF as Camera Body Only

The cinema world is abuzz about the Blackmagic URSA Cine 12K LF Body, a more affordable version of its flagship model without the hefty price tag.
Read more

65 Accessories for Blackmagic Design URSA Cine 12K LF Cinema Camera Body, EF Mount

  • All Accessories (65)
  • Memory & Data Storage (1)
  • Accessory Kits (1)
  • Monitor & Recorder (3)
  • Media Read/Write Devices (1)
  • Viewfinders (1)
  • Batteries & Power Supply (11)
  • Lens Adapters & Converters (5)
  • Tripods & Monopods (1)
  • Lenses (24)
  • Microphones & Audio (4)
  • Memory & Storage (2)
  • Bags & Cases (2)
  • Video Switching & Distribution (1)
  • Grips & Handles (1)
  • Rosette Plate (1)
  • Flash & Lighting (6)

About Blackmagic Design URSA CINE

Blackmagic URSA Cine 12K LF is a revolution in digital film with a new large format RGBW 36 x 24mm sensor with larger photo-sites for 16 stops of dynamic range, a CFexpress media module, high speed 10G Ethernet and WiFi for fast media upload and syncing to Blackmagic Cloud.

The URSA Cine 12K LF Body model is ideal when you have existing cinema accessories that you want to use to create your own camera rig.

It excludes top handle, baseplate, power supply, battery plate and PL lens mount (in contrast with the Blackmagic Design URSA Cine 12K Digital Cinema Camera displayed in the video).

URSA Cine 12K LF Body come with an interchangeable EF lens mount, a dedicated assist station with a second 5″ HDR LCD touchscreen, built in ND filters and industry standard Lemo and Fischer connections.

Stunning 12K full-frame sensor

Get an ultra-detailed image that’s rich in color and contrast. With an amazing 16 stops of dynamic range, your footage will capture every shadow, highlight, and detail with cinematic precision.

Stunning 12K full-frame sensor

No limits on quality

The URSA Cine 12K LF Body comes with the same top-tier features found in the complete kits. You’re getting the same stunning color science developed through years of collaboration with DaVinci Resolve workflows.

Built for flexibility & performance

Packed with a magnesium alloy chassis and a carbon fiber polycarbonate composite skin, this camera is built tough yet lightweight, ideal for quick set-ups and fast-paced environments.

High frame rates

Shoot in 12K at up to 80 fps and in 8K at a jaw-dropping 144 fps. You can also capture lightning-fast 240 fps in 4K for crystal-clear slow motion.

High frame rates

Dual 5” HDR touchscreen monitors

With the large 5” HDR touchscreen monitor on one side and an external color status LCD on the other, you can view your shots and tweak settings on the fly.

Live streaming capabilities

The Blackmagic URSA Cine 12K LF Body is ready to live stream directly to platforms with its built-in RTMP and SRT streaming engine. Connect via Ethernet, Wi-Fi, or even mobile data, and start streaming in real-time.

Live streaming capabilities

Top-tier connectors

Its industry-standard 7-pin Lemo and 3-pin Fischer connectors let you connect all your accessories with ease, and the camera also offers 12G-SDI outputs, 10G Ethernet, USB-C, and XLR audio.

Seamless integration with DaVinci Resolve

The body is made to work easily with DaVinci Resolve for real-time editing in 12K, 9K, 8K, and 4K. The included DaVinci Resolve Studio license ensures you can start editing right away.

Versatile lens mounting options

This body comes with a locking EF lens mount. But what if you want more? Well, you can easily upgrade with additional lens mounts like PL and LPL.

Versatile lens mounting options

Blackmagic Design URSA Cine 12K LF Digital Cinema Camera Body Features

  • Blackmagic RAW for real time 12K, 9K, 8K and 4K editing.
  • Generation 5 Color Science with new film curve.
  • High performance OLPF for reduced moire and aliasing.
  • Built in ND filters for shooting in varying conditions.
  • Shoot up to 80 fps in 12K, 144 fps at 8K and 240 fps at 4K.
  • Includes CFexpress media module. 8TB module can be purchased separately.
  • Recording media modules are compatible with the Blackmagic Media Dock.
  • High speed wifi, 10G Ethernet or mobile data for network connections.
  • Built-in RTMP and SRT live streaming.
  • Optional Blackmagic URSA Cine EVF can be purchased separately.
  • Accessories and EVF that match the URSA Cine design can be purchased separately.
  • Includes full DaVinci Resolve Studio license for post production.

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture stunning visuals with the URSA Cine 12K's large format sensor for unparalleled image quality.
  • Achieve cinematic brilliance with 16 stops of dynamic range, perfect for HDR video production.
  • Record in multiple formats up to 12K, ensuring flexibility for any professional video workflow.
  • Enjoy seamless integration with EF lenses, offering precise lens control and metadata support.
  • Experience superior low light performance, ideal for capturing detail in challenging conditions.
  • Utilize built-in ND filters for perfect exposure in any lighting, enhancing your video capture.

What's in the box:

  • Blackmagic Design URSA Cine 12K LF Cinema Camera with EF Lens Mount
  • Media Module CF
  • URSA Cine Rubber Caps for Connectors
  • URSA Cine Wi-Fi Antennas
  • EF Body Cap
  • DaVinci Resolve Studio with Activation Key
  • Welcome Wallet with QR Code for Software Download
  • (Battery Not Included)
  • Blackmagic Design 1 Year Limited Warranty
