Review Summary
Print, Negative, Interpositive, Internegative.
Mono and Color
16mm, Super 16mm
8mm, Super 8mm
4096 x 3072
2966 x 1781 - Super 16
2464 x 1798 - Standard 16
1390 x 994 - Super 8
1172 x 884 - Standard 8
3840 x 2160 Ultra HD
1920 x 1080 HD (auto selected to match monitor resolution)
Normal Scans: 12 stops
HDR Scans: up to 3.5 additional stops
Extraction from scanned image
Rubber Capstan
Diffuse light source. Cleaning rollers
Desk Mount. Wall Mount
Run speed: 1 - 30 fps
Shuttle: 1 - 150 fps (16mm)
1 - 200 fps (8mm)
10 - 60 fps/s
Up to 2% guaranteed, more may be possible if user care is taken
2000' (609.6m)
1x HDMI 1.4 10-bit 4:2:2 for preview purposes only
Thunderbolt 3 for capture of image and audio, software updates and supports USB-C charging with 15W at 5V.
PCI Express 4 lane generation 2
XLR3 Bi-phase: 4.5 Volt DC coupled.
Timecode: 1.5 Volt DC coupled with support for 24, 25 and 30 fps
2 Channels of professional balanced analog audio with sample rate converter via XLR connectors with 10dBV levels
1 Channel with sample rate converter on XLR connector
XLR6
Cintel requires Desktop Video installed on the host computer to operate. Scanning can be controlled though DaVinci Resolve or through third party software using the Cintel SDK.
Mac: Mac 13.0 Ventura, Mac 14.0 Sequoia ,or later.
Windows: Windows 10, 64-bit. Windows 11.
Linux
100 - 240V AC
200W
64.4 Degree to 82.4 Degree F (18 to 28 Degree C)
Maximum 65% non-condensing
79.13 x 34.64 x 14.17" (200.99 x 87.99 x 35.99cm)
132 lbs (59.9kg)
9338716010060

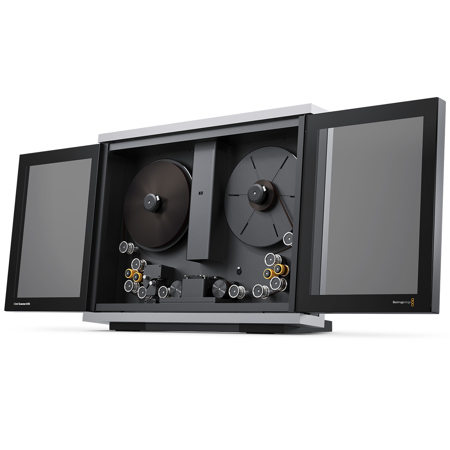

Cintel Scanner G3 HDR+ 8/16 is an advanced 8mm HD and 16mm Ultra HD film scanner with optics specifically designed for higher resolution capture of smaller format film. Includes capstan based transport for delicate archive film, new light source for higher speed realtime HDR, powerful film restoration tools with DaVinci Resolve and scanning via Thunderbolt to Mac and Windows computers.
Cintel Scanner - The creativity of film combined with a revolution in design!
For decades, Cintel has been the leader in film scanning technology. Cintel Scanner G3 HDR+ 8/16 advances the art of film scanning even further with a completely redesigned light source that allows real time 4K HDR film scanning. The latest Cintel Scanner G3 HDR+ 8/16 design incorporates upgraded digital servos, capstan drives and new advanced color science. The scanners also feature an architectural design that can even be wall mounted! Cintel Scanners are available in two models depending on the film types you need to scan. There's a model for 35mm and 16mm film and a model for 16mm and 8mm film. With Cintel, you can unlock massive film archives for upload to streaming platforms and online distribution!
Convert Existing Film to Ultra HD
With larger televisions now common in consumers homes, the demand for Ultra HD content has never been greater. Studios have generated millions of hours of film over the last 100 years, stored in film vaults around the world. Most of that archive is 35mm film that's naturally in 4K resolution. Converting these libraries is an inexpensive way to deliver Ultra HD content to consumers! Cintel Scanner will scan negative and positive film into amazing quality Ultra HD, unlocking the extra resolution from film that no one has been able to see until now! There is no easier way to generate Ultra HD feature films and television programming!
Advanced Light Source
Cintel Scanner G3 HDR+ 8/16 features a world leading high intensity light source and advanced color science for incredibly sharp, high quality images from scanned film even when running at real time speed. The RGB LED grid array illumination source is designed to work with an extremely sensitive imaging sensor and ensures your priceless film is never exposed to unnecessary thermal stress and color fading effects of traditional scanner lamps. Plus, the new light source also provides an additional 3.5 stops of HDR! There's even a new film inspection mode that allows you to see how the original film actually looks compared to the stunningly beautiful scans the new light source produces.
Create Stunning HDR Images
35mm film has extremely high dynamic range and native resolution of 4K. The Cintel Scanner G3 HDR+ 8/16 model features 8mm and 16mm gates, with optional 35mm gate sold separately. The G3 HDR+ 8/16 model supports 8mm and 16mm film and includes both a 16mm and 8mm gate. Now you can create high dynamic range digital masters with better color, texture and detail than ever! Cintel Scanner is designed to work with DaVinci Resolve Studio, which is included. With Revival tools for automatic dirt removal, dust busting, deflickering, spot patch repair with smart fill technology, and advanced temporal and spatial noise reduction, you have everything you need to scan, color correct, restore and master!
Innovative Design
Designed to hang beautifully on your wall, the Cintel Scanner is constructed using aircraft design techniques for a stiff and vibration free main deck so you get smooth film handling. The core chassis is a super rigid structural space frame, which results in a dramatically lighter and more durable body than older simplistic heavy plate designs. This means the Cintel Scanner is light enough to be wall mounted in your facility, making it part of the environment of your color correction suite. Being super thin and wall mounted, it's out of the way until you need to use it, and then it springs to life and performs! Whether you mount it on a wall or use it on the desktop, its innovative design includes sliding doors, built in cleaning rollers and new digital servos that gently handle your valuable negatives and keep your film clean.
Thunderbolt Latest Technology
The Cintel Scanner is an innovation in technology. Film traditionally has been a mechanical technology and film products have suffered from poor quality electronics that required experienced engineers to keep them working. The Cintel Scanner has been designed with the latest Blackmagic Design image processing technology and features a PCIe connection as well as Thunderbolt 3. This means you can connect it to your Mac, Windows or Linux computer and scan the film directly into your color correction system. That makes setup and use extremely fast plus eliminates slow file copying after scanning. You get easy to install software updates that can add new features in the future. It also means you can upgrade your computer whenever you need!
Realtime Scanning
The Cintel Scanner is the world's first real time 4K film scanner to use Thunderbolt 3, making it super easy to set up and install. The diffuse high intensity light source means the Cintel Scanner runs at a smooth real time speed keeping film handling gentle and transfers super fast. The Thunderbolt 3 connection features a massive 40 Gb/s speed so you can transfer all this data direct into your computer without quality limitations. You can even change computers simply by unplugging the single Thunderbolt cable. In addition, there's also an external PCIe interface for connecting to Windows and Linux based computers that don't have Thunderbolt 3. With the Cintel Scanner, you get the high resolution of a film scanner with the real time use of a traditional telecine!
Audio and KeyKode Reader
The optional Audio and KeyKode Reader lets you capture high quality audio along with KeyKode information from the film. The reader features a magnetic audio head or deep red LED illumination with advanced optics, electro formed slits, and precision mechanical adjustments for azimuth, zenith and yaw to give you the best possible audio capture with incredible high frequency response. The reader also features a precision capstan and encoder that allows for automatic correction of wow and flutter, allowing you to accurately capture audio, even when the scanner speed changes! The KeyKode Reader provides you with unique identification numbers for each film frame so they can be easily correlated with the corresponding video timecode. Installation is easy and all you need to do is bolt the reader onto the front of the chassis and it will automatically be detected.
Maintenance Free Connections
The Cintel Scanner is easy to set up and configure thanks to its Thunderbolt 3 and PCIe interfaces. Simply connect the scanner to your Mac or Windows workstation, install DaVinci Resolve Studio, and start scanning! That means you don't need a dedicated engineer to operate and support the scanner. The Cintel Scanner has been designed to give you the freedom to move it between machines or even plug into laptop computers so you can scan your film directly into the computer you're going to use the content on. The HDMI output supports Ultra HD televisions for perfectly accurate focusing and film alignment using a local monitor. The Cintel Scanner also features a bi-phase and timecode output connection to connect to external equipment such as audio followers and more! The HDMI output can even be converted into SDI video using Blackmagic Mini Converter HDMI to SDI 4K, perfect for connecting into your system for client monitoring!
Fast Easy Control
Using the Cintel Scanner is easy and intuitive. You get scanner control software that includes everything you need to transfer and capture films to Ultra HD or HD files. Scanned files can be opened with DaVinci Resolve for further color, restoration and mastering work. You can learn more about how to set up your Cintel Scanner by downloading the user guide here.
Includes DaVinci Resolve Studio
In the past when film was the main way to get high quality images for post production, Cintel telecine and DaVinci color correction was the standard combination used worldwide! These two wonderful brands are sold together because the Cintel Scanner includes a full copy of DaVinci Resolve Studio software! Now you get full color correction features included so you can take advantage of the Cintel Scanner's amazing image quality. DaVinci Resolve Studio also includes OpenFX specifically designed for restoration work, including dust buster, automatic dirt removal and patch replacer. You will never be limited creatively by your equipment because you'll have incredible film looks combined with the same powerful color correction toolset used by the world's leading cinematographers!
Cintel Pedigree - Founded by John Logie Baird in 1927
Cintel has been providing high resolution film scanning tools to the film and television industries longer than any other company. Cintel is recognized as one of the world's most trusted researchers, designers and manufacturers of motion picture film scanners. With over 85 years of experience, Cintel has developed and patented key technologies for the highest quality digital imaging of film for broadcast, post production, and digital intermediate workflows. Now combined with Blackmagic Design's experience in cameras, image processing and DaVinci color correction, the Cintel Scanner is a perfect blend of film tradition, advanced reliable technology combined with elegant industrial design.
