Blackmagic Design Cloud Store, 320TB

SKU: BMDCLD320 MFR: DWCLDI/CLD320
Earn VIP Reward Points

Key Features

  • Experience lightning-fast performance with this 320TB Cloud Store's M.2 NVMe SSD storage.
  • Safeguard your data using RAID 5 redundancy, ensuring data security and reliability.
  • Access and share files remotely with ease, thanks to seamless cloud synchronization.
  • Connect multiple devices via 10G Ethernet ports for high-speed file sharing.
  • Simplify your workflow with easy setup and integration with Dropbox & Google Drive.
  • Monitor storage capacity, network data rates, and more via HDMI monitor output.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Blackmagic Design Cloud Store Specifications

Connections

Connections

Jump to...
  • 10G Ethernet Ports

    4x 100/1000/10G BASE-T

  • 1G Ethernet Ports

    2x 100/1000 BASE-T

  • Ingest USB-C Port

    1x USB 3.0 (up to 5Gb/s). Automatically transfers files from USB drive to Cloud Store.

  • Backup USB-C Port

    1x USB 3.0 (up to 5Gb/s). Automatically backs up files from Cloud Store to USB drive.

  • HDMI Monitor Outputs

    1

  • Computer Interface

    Ethernet for shared file access, configuration and software updates. USB-C for configuration and softwareupdates.

File Sharing Protocol

Jump to...
  • Protocol

    SMB

  • Computer Connections

    50 max.

Cloud Synchronization

Jump to...
  • Compatible Services

    Dropbox
    Google Drive

Storage

Jump to...
  • Storage Type

    M.2 NVMe SSD

  • Total Capacity

    320TB

  • Redundancy

    RAID 5 distributed parity

  • External Storage

    USB Disks

  • External Storage Format

    ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Displays

Jump to...
  • HDMI Monitor Out Standards

    1080p50, 1080p59.94, 1080p60.

  • Monitor Out Displays

    Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graphs.

  • Status Indicator

    Underside white glow indicating normal operation or red glow indicating disk or power supply fault.

Device Control

Jump to...
  • External Control

    USB-C or Ethernet for configuration and software updates.

Software

Jump to...
  • Software Included

    Blackmagic Cloud Setup Utility
    Blackmagic Proxy Generator Lite
    Internal software upgrade via Blackmagic Cloud Setup using USB-C port.

Operating Systems

Jump to...
  • Operating Systems

    Mac 11.1 Big Sur, Mac 12.0 Monterey or later.
    Windows 10 and 11.

Power Requirements

Jump to...
  • Power Supply

    2x internal 100 - 240V AC 50/60Hz.

  • Power Inputs

    1x IEC C14 mains input.

  • Power Usage

    400W max.

Environmental

Jump to...
  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...
  • Dimensions

    7 x 7 x 11.6" (17.78 x 17.78 x 29.46cm)

  • Weight

    13.2 lbs (5.98kg)

  • UPC Code

    9338716007787

Related Articles & Videos

Blackmagic Launches ATEM Constellation HD Switchers & More

Blackmagic Launches ATEM Constellation HD Switchers & More

Blackmagic Design manufactures broadcast and cinema hardware — most notably high-end digital movie cameras. The company also develops video editing and color correction software, such...

Read more

About Blackmagic Design Cloud Store

Overcome geographical barriers and collaborate seamlessly with the Blackmagic Cloud Store, a 320TB storage solution designed specifically for media professionals. This high-capacity storage device allows you to share your media files globally, making it an ideal tool for editors, colorists, audio engineers, and VFX artists working on film and television projects.

The Blackmagic Cloud Store is not just a storage device; it's a powerful tool that integrates with Dropbox and Google Drive, allowing for efficient synchronization and sharing of media files. Its advanced technology understands proxy workflows, enabling entire timelines and their associated media to be shared in mere minutes.

The device's internal memory core is engineered for speed, capable of saturating the four 10G Ethernet ports to their theoretical maximum speed, even when multiple users are connected. This results in low latency file access and rapid responsiveness, making it an excellent choice for sharing media between multiple users.

The Blackmagic Cloud Store is also designed to handle massive 12K Blackmagic RAW digital cinema files, providing zero latency for each user without the need for local storage. This makes it an ideal solution for DaVinci Resolve, where large media files need to be shared between multiple users for editing, color correction, audio post, and VFX work.

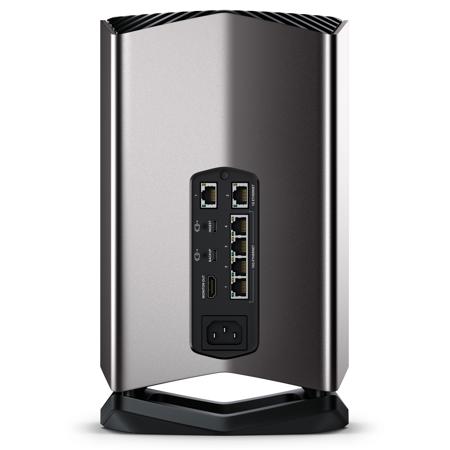

The device's design is both portable and quiet, unlike traditional IT industry storage products. Its vertical design houses an array of flash memory cards working in parallel for speed and data protection, and it even includes two redundant power supplies. The four 10G Ethernet ports operate as a switch, allowing connection to four separate computers, and an HDMI monitoring output lets you watch a live graphic view of the storage operating on a TV or monitor.

The Blackmagic Cloud Store also features a USB-C ingest port that automatically loads from any disk plugged in, and a USB-C backup port that automatically backs up cloud store files to any USB disk plugged in. This provides a cost-effective way to protect your critical files.

With the Blackmagic Cloud Store, you can monitor the status of your cloud store in real time via the HDMI monitor output. This feature allows you to view a storage map, speed graphs, sync, active users, and power status. The device also includes two 1G Ethernet connections for slower connections, and four 10G Ethernet ports for faster connections.

The Blackmagic Cloud Store uses M.2 flash memory cards for extreme reliability, high access speeds, and zero seek times. These cards are arranged in parallel RAID 5 groups for faster operation and fault tolerance. If a faulty M.2 card is detected, the cloud store will automatically enter read-only mode, allowing you to still access your files.

With its high performance and support for digital film files, the Blackmagic Cloud Store is an excellent choice for media professionals. Its ability to sync to Dropbox and Google Drive allows you to set up a local cache of your files, making them instantly available without needing to load from the internet. This feature also allows you to save space on your computer by moving cached Dropbox and Google Drive files to the Blackmagic Cloud Store, making them accessible to everyone on your local network.

The Blackmagic Cloud Store is not just a storage device; it's a powerful tool for global collaboration. With its support for Dropbox and Google Drive sync, you can use multiple Blackmagic Cloud Store units to share files globally, eliminating delays in accessing them. This is particularly useful when working with large datasets or massive digital film and video files.

The device also features real-time monitoring via the HDMI output, allowing you to see the live status of the Blackmagic Cloud Store. This includes a graphic representation of the memory core and where read and write access is happening for the connected users. You can also view data transfers on the four main 10G Ethernet connections, the capacity of the memory core, and how much is currently used. You can even add a custom name to the store!

In conclusion, the Blackmagic Cloud Store is a powerful, high-capacity storage solution designed specifically for media professionals. Its advanced features and integration with Dropbox and Google Drive make it an excellent choice for global collaboration and efficient media sharing.

Blackmagic Design Cloud Store Features

  • Extremely high performance 320TB network storage with built in Ethernet switch
  • Dropbox sync for distributing files globally and redundant RAID 5 design
  • High Performance Network Storage with Global Sync
  • Designed for Film and Television
  • Portable and Quiet Design
  • Two 1G Ethernet connections are provided for slower connections such as the internet or slower computers
  • 10G Ethernet ports allow 4 separate computers to be connected
  • Flash Memory Allows Multiple Simultaneous Users
  • Connect via USB-C for Quick File Access
  • Supports Local Backup and Ingest via USB-C Disks
  • Free Software for Mac and Windows

Warranty Information

This product has a limited warranty of 12 months.

Product Documents

User Manual

Key Features

  • Experience lightning-fast performance with this 320TB Cloud Store's M.2 NVMe SSD storage.
  • Safeguard your data using RAID 5 redundancy, ensuring data security and reliability.
  • Access and share files remotely with ease, thanks to seamless cloud synchronization.
  • Connect multiple devices via 10G Ethernet ports for high-speed file sharing.
  • Simplify your workflow with easy setup and integration with Dropbox & Google Drive.
  • Monitor storage capacity, network data rates, and more via HDMI monitor output.

What's in the box:

  • Blackmagic Design Cloud Store (320TB)
  • Cloud Setup Utility (Download)
  • Proxy Generator Lite (Download)
  • Welcome Wallet with QR Code
  • Blackmagic Design 1 Year Limited Warranty
