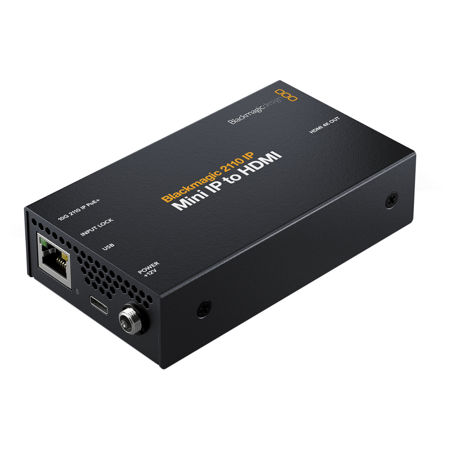

Blackmagic Design 2110 IP Mini IP to HDMI Converter

This model is designed for connecting a large screen television or computer monitor into SMPTE-2110 IP systems. It's tiny design means you can mount it behind the display! It works in all SD, HD and Ultra HD video standards up to 2160p60. So it's future proof! It has a standard 10G RJ-45 Ethernet connection, so you can use regular CAT-6 Ethernet cables. The converter can be powered via Ethernet (PoE), so you don't even need to connect the power! Although a DC power supply is included!

Build 2110 IP Video Systems for Broadcast, Live Production and AV!
The Blackmagic 2110 IP Converters supports Ultra HD using low cost 10G Ethernet! It conforms to the SMPTE ST-2110 standard for IP video, including PTP clocks and even NMOS support so you can make connections using a video router panel.

Build Professional SMPTE-2110 Broadcast Systems
The Blackmagic 2110 IP Converters have been designed to integrate SDI equipment into 2110 IP broadcast systems. However with Blackmagic Studio Cameras, Blackmagic Audio Monitor 12G G3 and the SmartView 4K G3, you can build most of your SMPTE-2110 system without converters! Plus most Blackmagic SMPTE-2110 IP video products can be remote powered! But adding converters means you get a low cost way to transform all your video equipment to SMPTE-2110. Simply add a Blackmagic 2110 IP Converter to live production switchers, disk recorders, streaming processors, cameras, TVs and more.

Conforms to the SMPTE-2110 IP Video Standard
Blackmagic 2110 IP products conform to the SMPTE ST-2110 standard for IP video, which specifies the transport, synchronization and description of 10 bit video, audio and ancillary data over managed IP networks for broadcast. It can also re-sync SDI inputs to a common PTP clock or external gear can lock to the reference output that's also generated from the PTP clock.

Blackmagic 2110 IP products support SMPTE-2110-20 uncompressed video, SMPTE-2110-21 traffic shaping/timing, SMPTE-2110-30 audio and SMPTE-2110-40 for ancillary data. Plus Blackmagic 2110 IP products support multicast, which is an efficient way of distributing video, audio and data from a single source to multiple destinations.

Uses Simple 10G Ethernet for Low Cost
Blackmagic 2110 IP Converters is available with RJ-45 connectors for simple Cat6 copper cables. sing simple Cat6 copper cables means you can build SMPTE-2110 systems at a dramatically lower cost. The cables are simple and Ethernet switches for 10G Ethernet are very common. In most cases, modern buildings already have 10G Ethernet cable installed, so you can use the cables you already have! Plus copper cables can remote power devices such as converters and cameras.

Incredibly Easy to Install
One of the biggest problems with SMPTE-2110 is needing an IT tech on standby to keep video systems running. Blackmagic 2110 IP converters solve this problem because they can connect point to point, so you don't need to use a complex Ethernet switch if you don't want to. That means you get the advantage of SMPTE-2110 IP video with simple Ethernet cables, remote power and bidirectional video. It's just like an SDI workflow.

Simple Point to Point
You can connect the converters point to point with a simple Ethernet cable between the converters. An example is between a rack and a monitor converter or camera. The point to point connection auto configures so you don't need to enter any settings. It's a simple cable that you just plug in! With point to point connections, you get the perfect solution for live events as the Ethernet cable can make connecting to cameras extremely simple with all control, power and video down a single cable.

Connect via Ethernet Switch
When working in larger SMPTE-2110 systems, such as broadcast, you can connect all your video gear to an Ethernet switch. In this case, you just plug everything into the Ethernet switch and then make the connections between devices by configuring the Ethernet switch. It works just like a large video router as all connections are made between the SMPTE-2110 devices. Plus all Blackmagic 2110 IP products support the NMOS protocol. It's more complex to configure, but is totally flexible!

Mini Converter
The 2110 IP Mini models are small so they can be hidden behind equipment. It supports PoE Ethernet power!

Includes NMOS Protocol for Building a Virtual Router
All Blackmagic 2110 IP Converters support the NMOS interface specifications so all 2110 IP video devices can operate together as a large virtual router. Plus Videohub Master Control Pro and Smart Control Pro can route sources to destinations on 2110 IP networks because it can act as an NMOS controller.

The NMOS interface specification describes how SMPTE-2110 devices are discovered and controlled on IP networks. Blackmagic 2110 IP Converters support IS-04 for discovery and registration of IP video devices and IS-05 for connection management between IP video devices. This means you can make connections between sources and destinations just like a traditional SDI router!

Get True 10-Bit Broadcast Video Quality
Blackmagic 2110 IP Converters are designed to support the highest quality video. 10-bit is the most commonly used television standard as colors can be represented with 4 times the precision of 8-bit video. Only working with 10-bit video will ensure all images are a perfect pixel for pixel transmission of the original SDI source, so you're always working at the absolute highest quality possible.

This means you don't lose quality, even at high frame rate Ultra HD, so you get the sharpest green screen keying plus crisp titles and color correction! Plus Blackmagic 2110 IP Converters include SDI re-clocking so all devices in your studio receive a regenerated signal with very low SDI jitter.

Get Low Cost High Frame Rate Ultra HD
By using 10G Ethernet, Blackmagic SMPTE-2110 IP video products can be smaller, lower power and more affordable. Plus 10G Ethernet can allow products to be remote powered. However, when using Ultra HD above 30fps, there is not enough bandwidth for uncompressed 10-bit video. Although all HD standards and Ultra HD at 30fps or less can be sent uncompressed in 10-bit.

However, high frame rate Ultra HD needs a codec for data rate reduction. The Blackmagic IP10 codec solves this problem! It has a low latency of 8 samples, is open standard and has no license fees. Plus it's an extremely small codec that uses very few FPGA resources, so it ensures SMPTE-2110 IP video products remain affordable!

Supports All SD, HD and Ultra HD Standards to 2160p60!
Blackmagic 2110 IP Converters have connections that support SD, HD and Ultra HD video standards. This means it can connect your existing SDI broadcast equipment to new IP based infrastructure. In standard definition, Blackmagic 2110 IP Converter supports both 525i59.94 and 625i50 standards.

In high definition, Blackmagic 2110 IP Converter supports all 720p video standards up to 720p60, all 1080 interlaced standards up to 1080i60 and all 1080p standards up to 1080p60. In Ultra HD you get support for all standards up to 2160p60. The converters will auto switch to a new video standard when the input changes. Plus the multi channel models can run a different video standard on each channel.

Supports Remote Administration for Settings and Updates
When you have a lot of equipment installed throughout complex broadcast systems, remote administration of the equipment is vital for diagnosing problems, changing settings and upgrading software. The Blackmagic Converter Utility can be downloaded free of charge so you can update the converter software and change settings. Plus it's available on both Mac and Windows.

The software can be connected directly to the USB port or on the rack mount models you can connect via the Ethernet connection to your IP network. Admin via Ethernet means you can change settings on multiple converters from a single computer. That's great when the converters are located in hard to reach locations!

Flexible and Redundant Power
Blackmagic 2110 IP Converters support both AC and PoE+ power connections, so the converters can be powered from the Ethernet connection. That's great when there is limited power where the converter is going to be installed. But PoE+ is also great for backup power as the converter will still work even if the external power cable is not plugged in! With PoE+ support, you always have a fantastic redundant power source!
