Blackmagic Design Videohub 12G Router, 120 Inputs and 120 Outputs

SKU: BMDHUB120 MFR: VHUBSMAS12G120120
Earn VIP Reward Points

Key Features

  • Manage complex workflows with 120x120 12G-SDI video inputs and outputs for ultimate flexibility.
  • Ensure reliable connection with auto switching between SD, HD, and Ultra HD video standards.
  • Enjoy low latency switching for live productions, broadcast environments, and seamless presentations.
  • Easily control your Videohub 12G Router via the built-in LCD, software, or external control panels.
  • Achieve high resolution video quality with support for up to 2160p60 Ultra HD video standards.
  • Benefit from wide compatibility, supporting various SMPTE standards for professional video workflows.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design Videohub 12G Specifications

Connections

Connections

Jump to...
  • SDI Video Inputs

    120

  • SDI Video Outputs

    120

  • SDI Rates

    DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G

  • Video Input Re-Sync

    None

  • SDI Reclocking

    On all SDI outputs

  • Reference Inputs

    Tri-Sync or Black Burst

  • Reference Outputs

    Reference terminating loop output

  • Ethernet

    Supports 10/100/1000 BASE-T

  • Computer Interface

    USB-C

Standards

Jump to...
  • SD Video Standards

    525i59.94 NTSC, 625i50 PAL

  • HD Video Standards

    720p50, 720p59.94, 720p60
    1080i50, 1080i59.94, 1080i60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
    1080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

  • 2K Video Standards

    2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
    2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

  • Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60

  • 4K Video Standards

    4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B
    SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601

  • SDI Audio Sampling

    Television standard sample rate of 48kHz and 24-bit

  • SDI Video Sampling

    YUV 4:2:2 and RGB 4:4:4

  • SDI Color Precision

    10, 12-bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes

  • SDI Color Space

    REC 601, REC 709, REC 2020

  • SDI Auto Switching

    Automatically selects between 270Mb SD-SDI, 1.5G HD-SDI, 3G level A and level B HD-SDI, 6G HD-SDI, 12G-SDI and DVB-ASI on each input so that each input can be running a different television standard

  • SDI Metadata Support

    Video payload identification ancillary data as per SMPTE 352M

Control

Jump to...
  • Built in Control Panel

    24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 5 inch color display

  • External Control Panel

    Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol

  • Control Panel Connection

    Ethernet

Software

Jump to...
  • Software Control

    Router control included free for Windows and Mac

  • Internal Software Upgrade

    Via included updater application

Operating Systems

Jump to...
  • Operating Systems

    Mac: Mac 13.0 Ventura
    Mac 14.0 Sonoma or later

    Windows: Windows 10, 64-bit
    Windows 11

Display

Jump to...
  • Displays

    Built in 5 inch LCD for video and menu settings

Power Requirements

Jump to...
  • Power Supply

    2x Internal 100 - 240V AC 50/60Hz
    IEC power cables required

  • Power Fail Protection

    Crosspoint connections preserved and restored instantly at power on

  • Power Usage

    140 W max

Environmental

Jump to...
  • Operating Temperature

    32 Degree to 104 Degree F (0 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...
  • Physical Installation

    6 rack units height

  • Dimensions

    19 x 10.47 x 9.52" (48.26 x 26.59 x 24.18cm)

  • Weight

    33 lbs (14.96kg)

  • UPC Code

    9338716008739

About Blackmagic Design Videohub 12G

What sets the Blackmagic Videohub 12G Router apart is its advanced, zero-latency video routing capabilities, supporting a seamless blend of SD, HD, and Ultra HD formats simultaneously. This 120-input, 120-output router is equipped with 12G-SDI inputs, each featuring LED indicators on the BNC connectors to signal an active SDI signal.

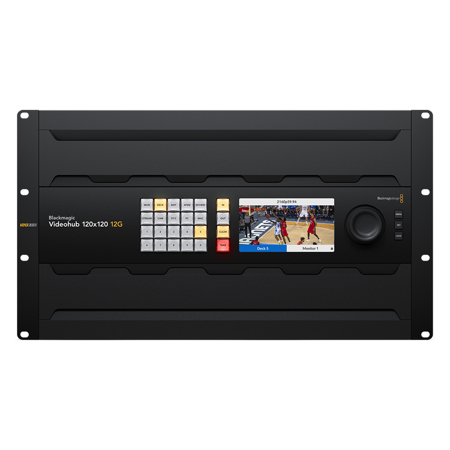

The Videohub 12G Router's design is both functional and elegant, with a large HD LCD screen that allows you to preview video before routing. It clearly displays routing labels and video standards, ensuring you always have the information you need at your fingertips. The router's control is intuitive, with direct button selection and a large spin knob control equipped with an electronic clutch for smooth operation.

The router's standout features include SDI re-clocking, external Ethernet control, and support for all SDI video standards up to 2160p60. The Blackmagic Videohub 12G Router simplifies your setup by allowing you to connect all your equipment without creating a complex cable mess. Its zero latency makes it ideal for live production and broadcast.

The front panel of the router is designed with user convenience in mind. It features shortcut buttons and a machined metal spin knob with a soft rubber coating for comfortable use. The panel also includes an Ethernet port for remote control of the router using external hardware or software control panels.

The Blackmagic Videohub 12G Router eliminates the need for complex system diagrams. You can connect any video input to any video output, or even a single video input to multiple video outputs. This flexibility is perfect for live production environments that require constant changes or emergency adaptations.

The router's built-in control panel and external control via Ethernet make it a versatile addition to any setup. The front control panel allows you to route video directly, making it an ideal solution for live production racks with limited space for extra hardware panels.

The router's LCD screen not only displays labels but also shows live video, allowing you to view your inputs in real-time. The router also features a numerical keypad for easy input selection, and a clear button that lets you undo a new routing selection, ensuring you always maintain control over your routing.

The Blackmagic Videohub 12G Router supports advanced 12G-SDI connections, which are multi-rate and compatible with any SD, HD, and Ultra HD video format up to 2160p60. This compatibility extends to SD, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI equipment, making the router a future-proof addition to your setup.

The router includes built-in SDI re-clocking on every 12G-SDI input, regenerating the video signal for maximum video quality. This feature is crucial for maintaining signal integrity over longer cable lengths.

The Blackmagic Videohub 12G Router can be remotely controlled, making it an ideal choice for large broadcast studios. It supports external router control via Mac, Windows, and even iPad, providing a versatile range of control options. The router also comes with a free software development kit for developers and system integrators, making it easy to integrate into broadcast automation systems.

The Blackmagic Videohub 12G Router supports multiple languages, including English, Chinese, Japanese, Korean, Spanish, German, French, Russian, Italian, Portuguese, Turkish, Polish, and Ukrainian. This multi-language support makes it a truly global solution for video routing needs.

Blackmagic Design Videohub 12G Features

  • Massive mixed format 120x120 12G-SDI video router
  • Zero latency 12G-SDI supports SD, HD and Ultra HD up to 2160p60
  • Built in control panel with direct entry buttons and spin knob control
  • LCD monitor with live video and labels for visual routing
  • SDI re-clocking on all 12G-SDI inputs
  • Works with Videohub Master Control Pro and Videohub Smart Control Pro control panels
  • Supports Videohub Software Control for Mac, Windows and iPad
  • Includes free SDK for integration into broadcast automation systems
  • 2x 100 - 240V AC power connections for redundancy
  • Ethernet for remote control from external hardware or software control panels
  • Localized for 13 popular languages

Warranty Information

This product has a limited warranty of 36 months.

Product Documents

User Manual

Key Features

  • Manage complex workflows with 120x120 12G-SDI video inputs and outputs for ultimate flexibility.
  • Ensure reliable connection with auto switching between SD, HD, and Ultra HD video standards.
  • Enjoy low latency switching for live productions, broadcast environments, and seamless presentations.
  • Easily control your Videohub 12G Router via the built-in LCD, software, or external control panels.
  • Achieve high resolution video quality with support for up to 2160p60 Ultra HD video standards.
  • Benefit from wide compatibility, supporting various SMPTE standards for professional video workflows.

What's in the box:

  • Blackmagic Design Videohub 12G Router
  • Welcome Wallet with QR Code for Software Download
  • Blackmagic Design 3 Year Limited Warranty
