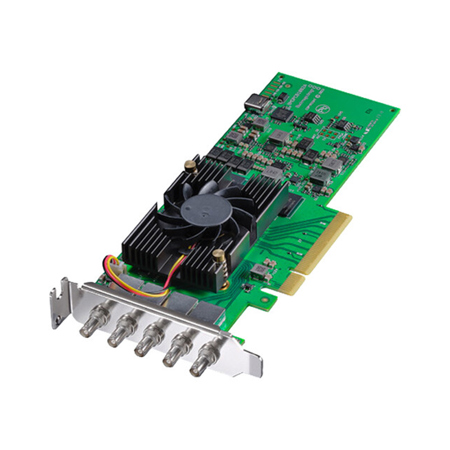

Blackmagic Design DeckLink 8K Pro Mini 12G-SDI Capture Card
SKU: BMDLKHCP8KGM MFR: BDLKHCPRO8K12GMINI
Earn VIP Reward PointsKey Features
- Capture pristine 8K video with the DeckLink 8K Pro Mini's quad-link 12G-SDI inputs.
- Enjoy low latency capture for seamless live streaming and video production workflows.
- This video capture card supports a wide range of codecs, including ProRes and DNxHR.
- Easily integrate into your existing setup with its PCI Express 8-lane interface.
- Achieve high resolution video output with hardware-based real-time color space conversion.
- Ensure a stable connection for all your professional video capture needs, guaranteed!
Ships from Manufacturer?
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
2 Year
$79.99
3 Year
$99.99
4 Year
$129.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Blackmagic Design DeckLink 8K Pro Mini
Why Choose the DeckLink 8K Pro Mini 12G-SDI Capture Card?
The DeckLink 8K Pro Mini 12G-SDI Capture Card is the pinnacle of digital cinema technology, offering unparalleled performance for professionals in the film, television, and commercial production industries. This low-profile capture and playback card is equipped with four independent 12G-SDI Micro BNC connections, allowing it to seamlessly handle a wide range of video standards, including SD, HD, Ultra HD, 4K DCI, 8K, and 8K DCI. Its support for high frame rate, 12-bit RGB 4:4:4 video, and full Rec. 2020 color gamut makes it an ideal choice for next-generation high-resolution and high dynamic range workflows.
Designed for versatility, the DeckLink 8K Pro Mini is compatible with Mac, Windows, and Linux platforms, providing ultimate flexibility for any workstation or server setup. This capture card is a staple in Hollywood feature films, episodic television, music videos, and commercials, thanks to its cutting-edge 12G-SDI technology and 8K support. It ensures the highest quality video output and integrates seamlessly with a wide array of professional applications and platforms.
Perfect for post-production environments, the DeckLink 8K Pro Mini supports all file formats up to 8K DCI, enabling you to work with any video format and resolution required. Capture from cameras, decks, and live feeds directly into editing, effects, and design software like DaVinci Resolve. With 12-bit RGB support and 4:4:4 image quality, you can achieve deep color and high dynamic range work, along with high frame rate support up to 60 frames per second and stereoscopic 3D capabilities.
The DeckLink 8K Pro Mini features high-quality connections, including four independent mini BNC 12G-SDI ports, ensuring pristine video and audio quality. Some models also offer professional analog component, S-video, and composite connections, along with AES/EBU and balanced analog audio channels. All models include Black Burst/Tri-sync reference and serial deck control, with multi-rate connections that automatically adjust for SD, HD, and Ultra HD formats.
Experience unrivaled video quality with the DeckLink 8K Pro Mini, which supports both compressed formats like ProRes and DNxHD and 10-bit uncompressed YUV and 12-bit RGB video. This ensures that all images are a perfect pixel-for-pixel clone of the source, providing superior keying, composition, and color correction.
The DeckLink 8K Pro Mini is compatible with a wide range of software applications. On Mac, it supports DaVinci Resolve, Avid Media Composer, Final Cut Pro X, Premiere Pro, and more. For visual effects, it works with Fusion, Nuke, After Effects, and Photoshop. Audio compatibility includes Fairlight, ProTools, Nuendo, and Cubase, while streaming is supported with OBS, Wirecast, and Livestream Producer.
On Windows, the DeckLink 8K Pro Mini supports WDM, DirectShow, and QuickTime, making it compatible with DaVinci Resolve, Avid Media Composer, Premiere Pro, and Sony Vegas Pro. It also supports visual effects software like Fusion and After Effects, as well as audio software like Nuendo and Cubase. Streaming compatibility includes OBS, Xsplit Broadcaster, and Wirecast.
For Linux users, the DeckLink 8K Pro Mini is an open-standard capture card, perfect for developing Linux-based video applications. It works seamlessly with DaVinci Resolve for editing and color correction, and Blackmagic's Design Media Express is available for capture and playback. A free, well-documented SDK is also available for developing custom solutions.
Choose the DeckLink 8K Pro Mini 12G-SDI Capture Card for its advanced technology, superior video quality, and broad software compatibility, making it the ultimate tool for professional video production.
Blackmagic Design DeckLink 8K Pro Mini Features
- Supports 8K digital cinema standards
- Equipped with 4 x 12G-SDI Micro BNC inputs/outputs
- Compatible with SD, HD, Ultra HD, 4K DCI, and 8K DCI
- 12-bit RGB 4:4:4: Delivers high-quality color depth and detail
- Compatible with Mac, Windows, and Linux
Warranty Information
This product has a limited warranty of 36 months.
