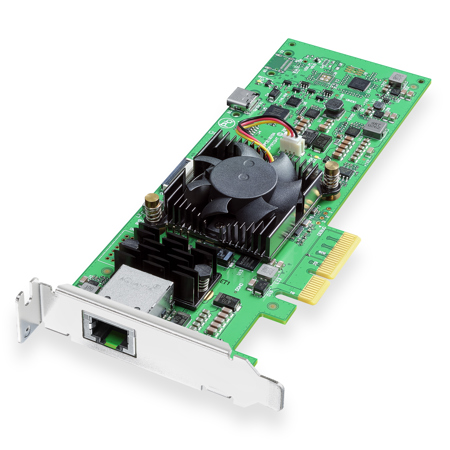

Blackmagic Design DeckLink IP HD Card

SKU: BMDLKIPBIPHD MFR: BDLKIPBIP/HD
Earn VIP Reward Points

Key Features

  • Capture pristine HD video with low latency using the DeckLink IP HD card.
  • Enjoy reliable streaming with SMPTE 2110 compliance for seamless IP video workflows.
  • Experience easy setup with this video capture card's plug-and-play PCI Express interface.
  • Ensure good compatibility; supports Mac, Windows, and Linux operating systems.
  • Use the 10G Ethernet port for high-resolution video input and output up to 1080p60.
  • Affordable price point for a professional-grade video capture and streaming solution.
See More Product Details
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design DeckLink IP Specifications

Connections

Connections

Jump to...
  • 10G Ethernet Port

    1x 10G BASE-T
    10G ethernet supports 3 input channels and 3 output channels, each up to 1080p60 with 16 audio channels

  • Computer Interface

    PCI Express 4 lane generation 2, compatible with 4, 8 and 16 lane PCI Express slots

Supported Codecs

Jump to...
  • Supported Codecs

    AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4

Software

Jump to...
  • Software Included

    Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux

  • Internal Software Upgrade

    Firmware built into software driver. Loaded at system start or via updater software

  • Physical Installation

    PCI Express 4 lane generation 2, compatible with 4 and 8 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements

  • Software Applications

    DaVinci Resolve
    Fusion
    Final Cut Pro
    Adobe Premiere Pro
    Avid Media Composer
    Adobe After Effects
    Avid Pro Tools
    Steinberg Cubase
    Steinberg Nuendo
    Adobe Photoshop

    Other supported applications:
    The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron Movie Recorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer

  • Software Applications (Contd.)

    Other supported applications:
    Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live

  • Software Applications (Contd..)

    Other supported applications:
    Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video WebClip2Go & [REC]Marker, Autodesk Flame, Zoom

Video Standards

Jump to...
  • SD Video Standards

    525i59.94 NTSC, 625i50 PAL

  • HD Video Standards

    720p50, 720p59.94, 720p60
    1080i50, 1080i59.94, 1080i60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59, 1080p59.94, 1080p60

  • Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit

  • Color Precision

    8, 10, 12-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes

  • Color Space

    REC 601, REC 709, REC 2020

IP Video Compliance

Jump to...
  • SMPTE 2110-20 (Uncompressed Video)

    IGMP v2

  • SMPTE 2110-21 (Traffic Shaping)

    Sender: Narrow
    Receiver: Narrow, Wide Synchronous, Asynchronous

  • SMPTE 2110-30 (PCM)

    Audio Conformance level: Level C

  • SMPTE 2110-40 (Ancillary Data)

    Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata

  • Precision Time Protocol

    IEEE 1588-2008 (PTP v2)
    ST 2059-1
    ST 2059-2

  • NMOS IS-04 Discovery and Registration

    v1.3.2
    Peer-to-peer via mDNS/DNS-SD

  • NMOS IS-05 Connection Management

    v1.1.2

  • NMOS BCP-002-01

    Natural Grouping

  • NMOS BCP-004-01

    Receiver capabilities

Processing

Jump to...
  • Colorspace Conversion

    Hardware based real time

  • Real Time Effects

    DaVinci Resolve, Final Cut Pro internal effects. Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects

Physical Installation

Jump to...
  • Physical Installation

    PCI Express low profile

Operating Systems

Jump to...
  • Operating Systems

    Mac 12.0 Monterey, Mac 13.0 Ventura or later
    Windows 10, 64-bit, Windows 11
    Linux

Power Requirements

Jump to...
  • Power Consumption

    10 Watts

Environmental

Jump to...
  • Operating Temperature

    32 Degree to 104 Degree F (5 Degree to 40 Degree C)

  • Storage Temperature

    -4 Degree to 113 Degree F (-20 Degree to 45 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...
  • Size

    7.2" (18.28cm)

  • Weight

    3.7 oz (104.8g)

  • UPC Code

    9338716008289

About Blackmagic Design DeckLink IP

How do you elevate your video production and broadcasting to professional standards The DeckLink IP HD Card is the answer for industry professionals seeking high-quality, reliable video capture and playback directly integrated into 2110 IP broadcast systems. This innovative PCIe capture card is engineered to work seamlessly with the most demanding video formats, including Apple ProRes, DNxHD, and 10-bit uncompressed, ensuring that you're never confined to a single file format.

The DeckLink IP HD Card boasts three channels of video capture and three channels of video playback through a single RJ45 Ethernet connection, offering versatility and efficiency in a compact form. Its multi-rate connections support a wide range of video standards from 525i and 625i to 1080p60, allowing for instant switching between formats without any complex procedures.

Designed to work in harmony with Blackmagic Design's DaVinci Resolve software, this card is the perfect companion for professional video editing, color correction, and audio post-production. The DeckLink IP HD Card's high-speed 4-lane PCIe interface ensures low latency and precise time synchronization, making it ideal for multi-channel HD video handling and simultaneous capture and playback on each channel.

Conforming to the SMPTE ST2110 standard, the DeckLink IP HD Card ensures synchronized transport of video, audio, and ancillary data over IP networks, while supporting multicast for efficient distribution. Its built-in video firewall guarantees total network security, isolating the Ethernet port from any non-video data and protecting against unauthorized access.

The true 10-bit broadcast video quality of the DeckLink IP HD Card ensures the sharpest keying, seamless visual effects, and superior color correction, maintaining the integrity of your original source material. With support for the NMOS protocol, this card allows for the creation of a large virtual router, streamlining the management of IP video devices on your network.

Compatible with a wide array of popular video software, the DeckLink IP HD Card extends its versatility beyond DaVinci Resolve to include Final Cut Pro, Media Composer, Premiere Pro, and more. It also integrates with powerful broadcast graphics tools like Fusion, After Effects, and Photoshop, enabling the creation of high-end graphics and titles.

Whether you're building custom broadcast automation servers or streaming servers for global broadcasting, the DeckLink IP HD Card is a durable and reliable choice that integrates with a variety of automation and streaming software. It comes with Blackmagic Media Express software for additional capture and playback options, and includes Blackmagic Disk Speed Test to ensure optimal performance of your storage media.

In summary, the DeckLink IP HD Card is a professional, high-quality, and innovative solution for capturing and playing back video in high-end production and post-production environments. Its compatibility with industry-standard software and adherence to SMPTE standards make it an indispensable tool for professionals aiming to produce content at the highest level of excellence.

Blackmagic Design DeckLink IP Features

  • The Perfect Capture and Playback for 2110 IP Broadcast Systems
  • 10G Ethernet for Multiple SMPTE 2110 IP Channels
  • Built in Video Firewall for Total IP Network Security
  • High Speed 4 Lane PCIe Connection
  • Supports HD Formats up to 1080p60
  • Get True 10-Bit Broadcast Video Quality
  • Includes NMOS Protocol for Building a Virtual Router
  • Works With All Popular Video Software
  • Compatible with DaVinci Resolve
  • Use Powerful Broadcast Graphics Tools
  • Build Custom Broadcast Automation Servers
  • Build Streaming Servers for Global Broadcasting
  • Includes Media Express Software

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Capture pristine HD video with low latency using the DeckLink IP HD card.
  • Enjoy reliable streaming with SMPTE 2110 compliance for seamless IP video workflows.
  • Experience easy setup with this video capture card's plug-and-play PCI Express interface.
  • Ensure good compatibility; supports Mac, Windows, and Linux operating systems.
  • Use the 10G Ethernet port for high-resolution video input and output up to 1080p60.
  • Affordable price point for a professional-grade video capture and streaming solution.

What's in the box:

  • Blackmagic Design DeckLink IP HD Card
  • Low Profile Slot Bracket
  • Welcome Wallet with QR Code for Software Download
  • Blackmagic Design 3 Year Limited Warranty
