Blackmagic Design DeckLink Mini Monitor - PCIe Playback Card f/3G-SDI and HDMI
See all Blackmagic Design items

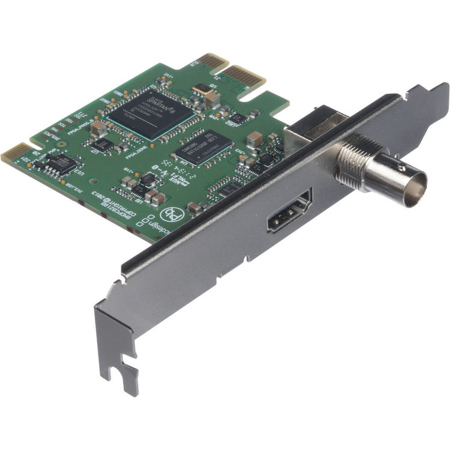

Blackmagic Design DeckLink Mini Monitor - PCIe Playback Card for 3G-SDI and HDMI

SKU: BMDLMM

This item is no longer available.

Recommended Alternatives

Blackmagic Design DeckLink Quad 2: Picture 1 regular

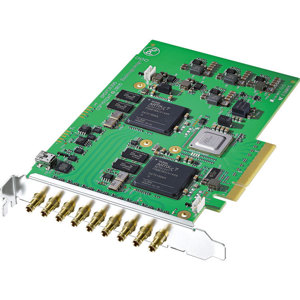

Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture and Playback Card
$1,095.00
Blackmagic Design Intensity Pro 4K: Picture 1 regular
Blackmagic Design Intensity Pro 4K Capture & Playback Input/Output Card
$285.00
Blackmagic Design UltraStudio HD Mini: Picture 1 regular
Blackmagic Design UltraStudio HD Mini
$649.00
Blackmagic Design DeckLink 8K Pro G2: Picture 1 regular
Blackmagic Design DeckLink 8K Pro G2 12G-SDI/HDMI Capture Card
$825.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : why no product description?
Shopper : Why Did You Choose This?ALBERT E : Davinci Resolve requires a DeckLink to perform realtime HDR color grading with an external display (i.e. the Native OS display on the system will not be used).HUDSON V : to use on a desktopVICTOR J : Needed an HDMI and SDI Capture device to fit a PCIe x 1 slot! Plays nice with my other Blackmagic devices as well!CARLOS C : I need itDENNA B : Need for church video system

Reviews about this item

Review Summary

2020-10-23T08:40:16

Rated 4 out of 5

Great hardware, crummy software bundle from Blackmagic Design

Works well out of the box. Does what it's supposed to do, which is connect to a monitor that works with Davinci Resolve. However, the Desktop Video software that comes with the driver includes a bundled settings app, which is useful, a Disk Speed Test, which is useful for a minute and cannot be uninstalled, and a Media Express app that's totally unnecessary, unwanted, and cannot be uninstalled. I'd say 4 stars is generous on this product review.

Jim S.

2019-07-27T06:23:21

Rated 5 out of 5

Easy to Use

Installed this into my computer, ran the Blackmagic software that comes in the box, and had a calibrated monitor up in no time. Makes color correction a dream.

Amanda M.

2019-07-05T08:15:02

Rated 3 out of 5

Dedicated preview monitor with big speed tradeoff

I purchased this so I could use the false color on my Atomos monitor for matching a complicated multicam shoot. Pros: It does what it says it does, which allows video output to a dedicated monitor. Cons: Premiere's performance immediately dropped through the floor with delays, hesitations, and latency. An hour of research online couldn't get it all ironed out. I finished the grading project and pulled it out of my PC. Might keep it in the closet in case I need to do similar color matching in the future. This is the cheapest item in this line from BM and the issue may simply be that it isn't a performance card. I'd bet that the more expensive cards wouldn't have the issues I encountered.

Andrew S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Blackmagic Design DeckLink Mini Monitor Specifications

  • SDI Video Input

    1x 10 bit SD/HD switchable

  • HDMI Video Input

    1x HDMI type A connector

  • SDI Audio Input

    8 channels embedded in SD and HD

  • HDMI Audio Input

    8 Channels embedded in SD and HD

  • Computer Interface

    PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCIe slots

  • Codec Support

    AVC-Intra
    AVCHD
    Canon XF MPEG2
    Digital SLR
    DV-NTSC
    DV-PAL
    DVCPRO50
    DVCPROHD
    DPX
    HDV
    XDCAM EX
    XDCAM HD
    XDCAM HD422
    Apple ProRes 4444
    Apple ProRes 422 (HQ)
    Apple ProRes 422
    Apple ProRes (LT)
    Apple ProRes 422 (Proxy)
    Uncompressed 8-bit 4:2:2
    Uncompressed 10-bit 4:2:2

  • Software Included

    Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X.
    Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 7 or Windows 8.
    Media Express, Blackmagic Control Panel and Blackmagic driver on Linux.

  • Internal Software Upgrade

    Firmware built into software driver. Loaded at system start or via updater software.

  • Physical Installation

    PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS X, Windows 8 and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots.

  • Supported Software Applications

    DaVinci Resolve, Fusion, Final Cut Pro X, Premiere Pro CC, Avid Media Composer, After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Photoshop CC

  • Other Supported Applications

    Nuke, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.

  • SD Format Support

    525i29.97 NTSC, 625i25 PAL

  • HD Format Support

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60

  • SDI Compliance

    SMPTE 259M and 292M

  • Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit

  • Video Sampling

    4:2:2

  • Color Precision

    10-bit

  • Color Space

    REC 601, REC 709

  • HDMI Configuration

    HDMI automatically configures to connected display

  • HDMI Resolution

    Pixel for pixel HD resolution input to connected device

  • HDMI Color Precision

    10-bit

  • Multiple Rate Support

    SDI and HDMI are switchable between standard definition and high definition

  • Processing

    Colorspace Conversion: Hardware based real time
    HD Down Conversion: Software based down conversion during video playback.
    Real Time Effects: Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.

  • Supported Operating Systems

    Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later
    Windows 8.1 or Windows 10
    Linux

  • EMC Certifications

    FCC, CE and C-Tick

  • Environmental

    Operating Temperature: 5 to 40 deg. C (32 to 104 deg. F)
    Storage Temperature: -20 to 45 deg. C (-4 to 113 deg. F)
    Relative Humidity: 0% to 90% non-condensing

  • Dimensions (Card Depth)

    3.6" (91.4mm)

  • Weight

    1.98 oz (56.13g)

  • UPC Code

    9338716001914

About Blackmagic Design DeckLink Mini Monitor

FEATURED REVIEWS

Easy to Use

By Amanda M.

Installed this into my computer, ran the Blackmagic software that comes in the box, and had a calibrated monitor up in no time. Makes color correction a dream.

Monitor uncompressed 10-bit video from your computer! Includes SDI and HDMI outputs for connecting to any television or monitor. DeckLink Mini Monitor auto switches between SD and HD so it handles all common video formats.

DeckLink Mini Monitor is the perfect solution for monitoring from editing software while you edit! Includes two PCIe shields for both full height and low profile slots.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Blackmagic Design DeckLink Mini Monitor
  • Low Profile Slot Bracket
  • SD Card with Software and Manual
  • Blackmagic Design 3 Year Limited Warranty
