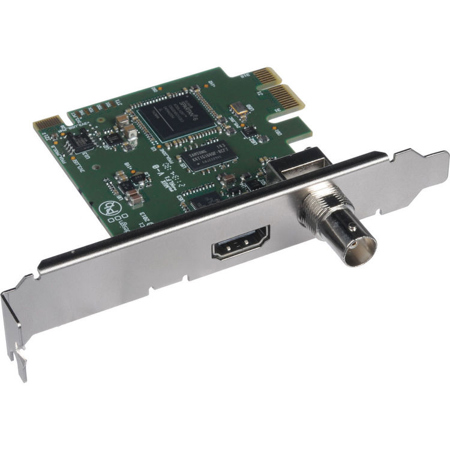

Blackmagic Design DeckLink Mini Recorder, PCIe Capture Card for 3G-SDI and HDMI
SKU: BMDLMR
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
Q&A
Questions & Answers
Jon L : I see it comes with a low profile bracket, but is a full height bracket included also?
Melcolm H : Will this work in Windows 10 ?ACCOUNTS P : YesSAM K : Yes it works. In fact, I also used it for the computer with Windows 10.STEVEN K : I have it running on a Windows 10 computer, no problems.
Shopper : Why Did You Choose This?JANET K : Has SDI and HDMI inputsBRIAN G : need an hdmi input for video captureMICHAEL H : outfitting more Blackmagic design devices in my networkJOHN V : it was recommended by a friendJOHN C : Needed an input card for PTZOptics camera. Good value.KIRKLYN K : I need to it to capture a computer's HDMI output for Webex. I would prefer the 4K version but will settle for this one.DONALD S : I purchased this PCI capture card so that I could bring PowerPoint slides from a separate computer into OBS on another computer.STEPHEN B : We needed an inexpensive way to connect our AETM Television Studio HD switcher to our live streaming computer and this was exactly what we needed.IVAN O : I live-stream minor league football games for the Joliet Thunder. This card will allow me to connect my HPX170 directly into my pc for use with Xsplit Broadcaster. Completely bypassing the need to convert the SDI signal to HDMI. Most capture cards require HDMI for capture.
Reviews about this item
Review Summary
2022-04-27T11:34:42
Rated 5 out of 5
Works great.
Works great.
CHARLIE G.
2022-01-24T07:58:52
Rated 5 out of 5
6G BMD Recorder Card
We needed a different card, but this one arrived quickly.
ELEANOR C.
2021-01-27T07:15:25
Rated 5 out of 5
Great
Needed an high bandwidth low latency SDI capture card for my ptz camera for livestream. This one is fantastic, it also includes a hdmi input if you need. It's also has a small form factor and a low profile mounting plate for when I rack mount my PC.
Janet k.
2020-08-02T09:53:49
Rated 5 out of 5
Great pair to a 4k Camera for Streaming
Pairs up perfectly with our new 4k camera (Canon XA40) and recently rebuilt AMD Ryzen based PC for church livestream. Plug and Play. Really easy to setup and use, though the documentation from Blackmagic could use a little more polishing.
Ryan S.
2020-07-27T05:41:57
Rated 5 out of 5
Excellent speed and SDI input is amazing.
Fit right into the computer slot and worked as soon as I opened up OBS. We use it to stream 1080p60 from our Black magic switcher and has worked phenomenally so far. SDI input was what sold us and we have loved it.
KIM R.
2020-06-26T18:12:55
Rated 5 out of 5
Great video input for any PC.
This works great in my Optiplex 9010 SFF. I use it to livestream minor league football games for the Joliet Thunder. Used to be Chicago Thunder.
IVAN O.
2020-06-22T17:14:56
Rated 4 out of 5
Great capture card to use with your favorite Streaming service.
Great product - simple and easy to use. A little confusing getting the SW download but once that was figured out we had no issues. Adorama shipping and packaging went great.
ROSE S.
2020-06-10T08:58:19
Rated 5 out of 5
Lifesaver
This thing has been a lifesaver for our stream! Easy install and works like a charm.
JEREMY G.
2020-06-09T04:51:08
Rated 5 out of 5
A true capture card workhorse
BlackMagic certainly has the edge on video capture devices! This product is no exception. It preforms flawlessly on our 2010 Mac Pro using OBS. Setup was simple and straightforward. Definitely wouldn’t trust my video capture needs to any other generic brand of PCIe capture devices!
BRUCE W.
2020-06-07T12:29:51
Rated 5 out of 5
Great little piece of hardware!
Great little piece of hardware. Does what it’s supposed to do without taxing my computer’s resources. Working great ingesting PTZ camera to our livestream. My only complaint is that it will only input one or the other (SDI or HDMI) not both at the same time.
JONATHAN T.
2017-09-06T12:14:12
Rated 4 out of 5
Works as claimed
Setup is quite easy, software is not super friend but get the job done. However it didn't seem to use any video codec to reduce size, so it generate huge video files.
Cheng D.
2016-10-11T13:38:00
Rated 4 out of 5
Quick shipping and relatively easy install.
The product came the next day and the card was easy to install. The issue was getting our Sony EVI-HD1 to show its image through the card. This took a little trial and error. It would be Nice if Blackmagic supplied a simple camera viewer to verify the camera was working. Once it was up and running it has worked great!
Christopher B.
Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.
TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.
Invest In Your Gear and Peace Of Mind!
Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.
Repair or Replacement
If we can’t fix it, we’ll replace it at no additional cost.
Accidental Damage
Protect your product from drops, spills, and more.
Peace of Mind
Enjoy your gear without fear. We have you covered!
Malfunction Protection
When regular use of your product over time results in mechanical or electrical failure.
Zero Deductible
We will never charge you a deductible after the purchase of a plan.
Customer-Focused Support
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.
Browse our FAQ
Blackmagic Design DeckLink Mini Recorder Specifications
SDI Video Input
1x 10-bit SD/HD switchable
HDMI Video Input
1x HDMI type A connector
SDI Audio Input
8 channels embedded in SD and HD
HDMI Audio Input
8 Channels embedded in SD and HD
Computer Interface
PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCIe slots
Codec Support
AVC-Intra
AVCHD
Canon XF MPEG2
Digital SLR
DV-NTSC
DV-PAL
DVCPRO50
DVCPROHD
DPX
HDV
XDCAM EX
XDCAM HD
XDCAM HD422
Apple ProRes 4444
Apple ProRes 422 (HQ)
Apple ProRes 422
Apple ProRes (LT)
Apple ProRes 422 (Proxy)
Uncompressed 8-bit 4:2:2
Uncompressed 10-bit 4:2:2Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X.
Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 7 or Windows 8.
Media Express, Blackmagic Control Panel and Blackmagic driver on Linux.Internal Software Upgrade
Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation
PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS X, Windows 8 and Linux. Mac OS X systems require a Mac Pro computer. Please check the Support pages to see the full system requirements.
Supported Software Applications
Adobe Premiere Pro
Avid Media Composer
Adobe After Effects
Nuke - The Foundry
DaVinci Resolve
Avid Pro Tools
Steinberg Cubase
Steinberg Nuendo
Adobe Photoshop
Media ExpressOther Supported Applications
Avid Symphony
Avid News Cutter
Tools On Air just:in & live:cut & just:play & just:live
Softron OnTheAir
MovieRecorder & OnTheAir CG
Flash Media Encoder
Wirecast
Livestream Procaster
Resolume Avenue 4
Sony Vegas Pro
Corel VideoStudio Pro X4
CyberLink Power Director
MAGIX Video Pro X4
Vidcaster Pro & Studio & Broadcast
Uniplay
Playbox AirBox
CasparCG
Magicsoft CG
Xsplit Broadcaster
Harris InfocasterSD Format Support
625/25 PAL, 525/29.97 NTSC.
HD Format Support
720p50
720p59.94
720p60
1080PsF23.98
1080p23.98
1080PsF24
1080p24
1080PsF25
1080p25
1080PsF29.97
1080p29.97
1080PsF30
1080p30
1080i50
1080i59.94
1080i60.SDI Compliance
SMPTE 259M and 292M
SDI Metadata Support
VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188 and closed captioning
Audio Sampling
Television standard sample rate of 48 kHz and 24 bit
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 601, REC 709
HDMI Configuration
HDMI automatically configures to connected display
HDMI Resolution
Pixel for pixel HD resolution input to connected device
HDMI Color Precision
10-bit
Multiple Rate Support
SDI and HDMI are switchable between standard definition and high definition
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content
Processing
Colorspace Conversion: Hardware based real time
HD Up Conversion: Software based up conversion during video captureSupported Operating Systems
Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks or later
Windows 7 or Windows 8
LinuxDimensions (Card Depth)
3.6" (91.4mm)
Environmental
Operating Temperature: 5½ to 40½ C (32½ to 104½ F)
Storage Temperature: -20½ to 45½ C (-4½ to 113½ F)
Relative Humidity: 0% to 90% non-condensingUPC Code
9338716001921
About Blackmagic Design DeckLink Mini Recorder
FEATURED REVIEWS
Great little piece of hardware!
By JONATHAN T.
Great little piece of hardware. Does what it’s supposed to do without taxing my computer’s resources. Working great ingesting PTZ camera to our livestream. My only complaint is that it will only input one or the other (SDI or HDMI) not both at the same time.
Works great.
By CHARLIE G.
Works great.
Record uncompressed 10-bit video from SDI and HDMI video sources. DeckLink Mini Recorder switches between SD and HD video formats and is perfect for building ingest servers or other video solutions where you need to capture only in a low profile card! Includes two PCIe shields for both full height and low profile slots.
What's in the box:
- Blackmagic Design DeckLink Mini Recorder
- Low Profile Slot Bracket
- Software CD
- Blackmagic Design 3 Year Limited Manufacturer's Warranty
