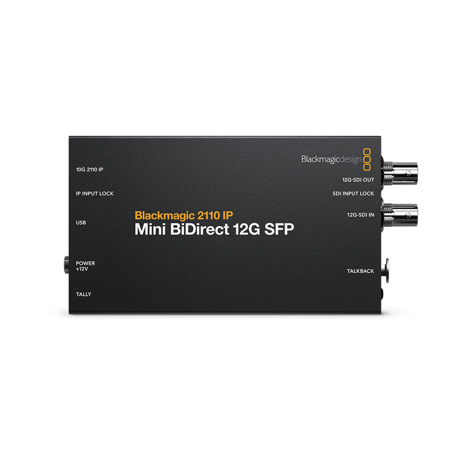

Blackmagic Design 2110 IP Mini BiDirect 12G SFP Converter

SKU: BMDMINIBID MFR: CONVNVIPF/IP/12GSFP
Earn VIP Reward Points

Key Features

  • Seamlessly convert 12G-SDI to SMPTE-2110 IP video for broadcast-quality real-time streaming.
  • Ensure stable connection with auto detection of SD, HD, Ultra HD, and 4K video formats.
  • Utilize the bi-directional converter for flexible video format conversions in any production setup.
  • Experience high resolution video output with embedded audio on both SDI and 2110 IP video.
  • Take advantage of easy setup with a user-friendly interface for quick configuration and control.
  • Affordable price point for professional-grade video conversion, enhancing your workflow.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design 2110 IP Converter Specifications

Connections

Connections

Jump to...
  • SDI Video Inputs

    1x

  • SDI Video Outputs

    1x

  • SDI Rates

    270Mb, 1.5G, 3G, 6G, 12G

  • SMPTE ST-2110 IP Video Inputs/Outputs

    1x 10G Ethernet

  • Analog Audio Inputs

    1x 5 pin XLR Talkback

  • Analog Audio Outputs

    1x 5 pin XLR Talkback

  • SDI Audio Inputs

    16 Ch embedded audio on SDI input

  • SDI Audio Outputs

    16 Ch embedded audio on SDI loop output

  • SMPTE ST 2110 IP Audio Inputs

    16 Ch embedded audio on ST-2110 IP video via 10G Ethernet

  • SMPTE ST 2110 IP Audio Outputs

    16 Ch embedded audio on ST-2110 IP video via 10G Ethernet

  • Multi Rate Support

    Auto detection of SD, HD, 2K, Ultra HD and 4K

  • Reclocking

    Yes

  • Ethernet

    1x 10Gb/s SFP optical fiber sockets supporting up to 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates

  • Computer Interface

    1x USB-C 3.0 for configuration and firmware updates

SDI Video Standards

Jump to...
  • SD Video Standards

    525i59.94 NTSC, 625i50 PAL

  • HD Video Standards

    720p50, 720p59.94, 720p60
    1080i50, 1080i59.94, 1080i60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
    1080PsF25, 1080PsF29.97, 1080PsF30

  • Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60

  • 4K Video Standards

    4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI

  • SDI Video Rates

    SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI

  • SDI Color Precision

    0.168078703703704

  • SDI Color Space

    YUV

  • SDI Auto Switching

    Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output

IP Video Compliance

Jump to...
  • SMPTE 2110-20 (Uncompressed Video)

    IGMP v2

  • SMPTE 2110-21 (Traffic Shaping)

    Sender: Narrow
    Receiver: Narrow, Wide Synchronous, Asynchronous

  • SMPTE 2110-30 (PCM)

    Audio Conformance level: Level C

  • SMPTE 2110-40 (Ancillary Data)

    Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata

  • Codec

    Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video

  • Precision Time Protocol

    IEEE 1588-2008 (PTP v2)
    ST 2059-1
    ST 2059-2

  • NMOS IS-04 Discovery and Registration

    v1.3.2
    Peer-to-peer via mDNS/DNS-SD

  • NMOS IS-05 Connection Management

    v1.1.2

  • NMOS BCP-002-01

    Natural Grouping

  • NMOS BCP-004-01

    Receiver capabilities

LED Indicators

Jump to...
  • LED Indicators

    1x IP Input Lock LED indicator light
    1x SDI Input Lock LED indicator light
    1x Tally LED indicator light

Control

Jump to...
  • Control

    Talkback button controls for Volume Up, Volume Down and Push to Talk

Talkback and Tally

Jump to...
  • Talkback

    5-pin XLR talkback headset connection for talkback on channels 15/16 in the SDI and 2110 IP video

  • Live Tally Indicator

    Tally LED indicator light

Operating Systems

Jump to...
  • Operating Systems

    Mac 13.0 Ventura, Mac 14.0 Sonoma or later.
    Windows 10 and 11

Power Requirements

Jump to...
  • Power Supply

    1x +12V DC external universal power supply with locking 5.5mm barrel Jack plus international socket adapters for most countries

  • Operational Voltage Range

    12 - 16 V

  • Power Usage

    18W

Environmental

Jump to...
  • Operating Temperature

    41 to 104 Degree F (5 to 40 Degree C)

  • Storage Temperature

    -4 to 113 Degree F (-20 to 45 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...
  • Dimensions

    5.75 x 2.91 x 1.34" (14.60 x 7.39 x 3.40cm)

  • UPC Code

    9338716009149

About Blackmagic Design 2110 IP Converter

With the Blackmagic 2110 IP Mini BiDirect 12G SFP Converter, you can seamlessly integrate SDI equipment into 2110 IP broadcast systems. This bidirectional converter allows 12G-SDI cameras to connect to SMPTE-2110 systems over long distances using optical fiber, handling both the SDI camera feed and SDI program return in one compact device.

Equipped with a 5-pin XLR talkback headset connection, this converter also features volume and press-to-talk buttons for easy communication. It supports all SD, HD, and Ultra HD standards up to 2160p60, making it a versatile addition to any professional video setup. The SFP socket accepts 10G Ethernet, 3G-SDI, 6G-SDI, or 12G-SDI optical modules, providing flexibility in connectivity options.

The Blackmagic 2110 IP Converter is designed to conform to the SMPTE ST-2110 standard for IP video, including PTP clocks and NMOS support. This means you can make connections using a video router panel, simplifying your workflow. The converter also supports multicast, an efficient way of distributing video, audio, and data from a single source to multiple destinations.

Installation is incredibly easy with the Blackmagic 2110 IP Converter. It can connect point-to-point, eliminating the need for a complex Ethernet switch. This feature allows you to enjoy the benefits of SMPTE-2110 IP video with simple Ethernet cables, remote power, and bidirectional video.

The converter supports the NMOS interface specifications, allowing all 2110 IP video devices to operate together as a large virtual router. It also supports the Blackmagic IP10 codec, ensuring high-quality, low-latency video transmission.

The Blackmagic 2110 IP Converter is compatible with all SD, HD, and Ultra HD standards up to 2160p60, making it a versatile solution for connecting your existing SDI broadcast equipment to new IP-based infrastructure. It also supports remote administration for settings and updates, making it easy to manage even in complex broadcast systems.

With both AC and PoE+ power connections, the Blackmagic 2110 IP Converter offers flexibility and redundancy in power supply. Whether you're building professional SMPTE-2110 broadcast systems or upgrading your current setup, the Blackmagic 2110 IP Mini BiDirect 12G SFP Converter is a reliable and efficient solution.

Blackmagic Design 2110 IP Converter Features

  • All converters conform to the SMPTE-2110 IP video standard
  • Uses readily available 10G Ethernet for low cost installation
  • Re-syncs SDI inputs to a common PTP clock
  • Includes NMOS Protocol for building a virtual router
  • Low latency, open standard Blackmagic IP10 codec
  • Supports all SD, HD and Ultra HD formats up to 2160p60

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Seamlessly convert 12G-SDI to SMPTE-2110 IP video for broadcast-quality real-time streaming.
  • Ensure stable connection with auto detection of SD, HD, Ultra HD, and 4K video formats.
  • Utilize the bi-directional converter for flexible video format conversions in any production setup.
  • Experience high resolution video output with embedded audio on both SDI and 2110 IP video.
  • Take advantage of easy setup with a user-friendly interface for quick configuration and control.
  • Affordable price point for professional-grade video conversion, enhancing your workflow.

What's in the box:

  • Blackmagic Design 2110 IP Mini BiDirect 12G SFP Converter
  • DC Power Supply
  • Welcome Wallet with QR Code for Software Download
  • Blackmagic Design 1 Year Limited Warranty
