Blackmagic Design 2110 IP Converter 3x3G

A cutting-edge solution for your broadcasting needs, the Blackmagic 2110 IP Converter 3x3G seamlessly converts 3G-SDI devices into 2110 IP video systems. This advanced converter is equipped with a 10G Ethernet connection, capable of handling three separate video channels simultaneously. Each channel boasts independent SDI inputs and outputs, allowing for connection to six different SDI devices.

The Blackmagic 2110 IP Converter 3x3G is designed with 3G-SDI inputs featuring loop outputs, enabling easy installation within existing SDI systems. It also includes a reference output, timed to the 2110 PTP clock, ensuring precise synchronization.

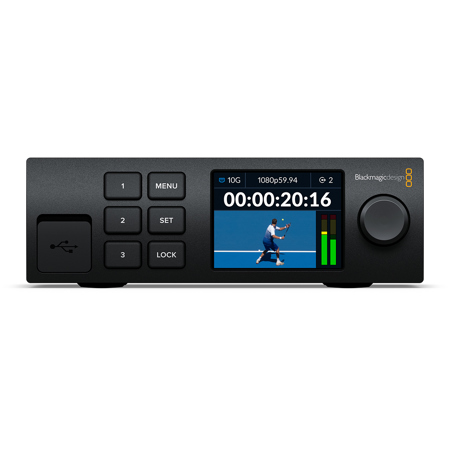

This converter is not just functional but also user-friendly, with a sleek front panel that houses a color LCD for monitoring, menus, and diagnostics. It even allows for IP input routing directly from the panel.

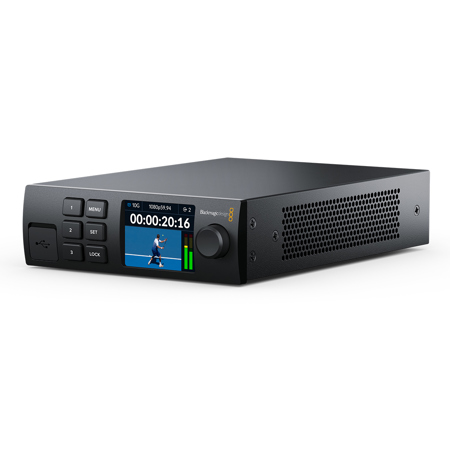

Designed for seamless integration into broadcast systems, the Blackmagic 2110 IP Converter 3x3G's rack mount design allows for installation right next to the equipment being converted. The Universal Rack Shelf can accommodate up to three units side by side, providing nine separate input and output channels in a single rack unit. Remote management over Ethernet is also possible, adding to its convenience.

The Blackmagic 2110 IP Converter 3x3G supports all SD and HD formats up to 1080p60, making it a versatile addition to your broadcasting equipment. It also conforms to the SMPTE ST2110 standard for IP video, ensuring high-quality video, audio, and ancillary data transport over managed IP networks.

This converter also supports the NMOS interface specifications, allowing all 2110 IP video devices to operate together as a large virtual router. For remote administration, the Blackmagic Converter Utility can be downloaded free of charge, allowing for easy software updates and setting changes.

The Blackmagic 2110 IP Converter 3x3G is designed to deliver true 10-bit broadcast video quality, ensuring the sharpest images and superior color correction. It also includes SDI re-clocking, providing a regenerated signal with very low SDI jitter to all devices in your studio.

With both AC and PoE+ Ethernet power, the Blackmagic 2110 IP Converter 3x3G offers flexible and redundant power options. Its international power supply works from 100 to 240V AC, making it suitable for use anywhere in the world.

Finally, the Blackmagic 2110 IP Converter 3x3G supports multiple languages, making it a perfect choice for global operations. Choose from 13 popular languages for a customized user experience. With its advanced features and user-friendly design, the Blackmagic 2110 IP Converter 3x3G is a valuable addition to any broadcast system.
