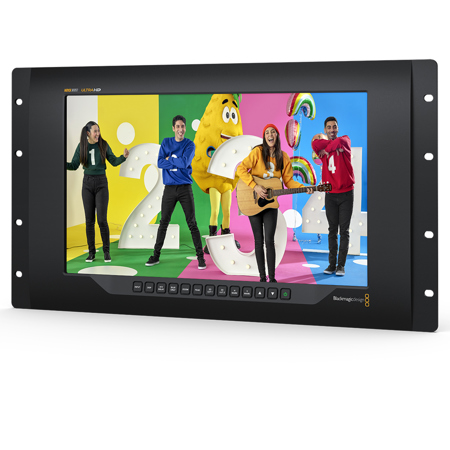

Blackmagic Design SmartView 4K G3 15.6" DCI 4K Broadcast Monitor with SMPTE 2110, 6 RU

SKU: BMDSMARTVIEW MFR: HDL-SMTV4K12G3
Earn VIP Reward Points

Key Features

  • Experience superior clarity with the SmartView 4K G3's 15.6" DCI 4K broadcast monitor.
  • Ensure accurate color with this production monitor's REC 601 and REC 709 color space support.
  • Easily integrate into any workflow with versatile 12G-SDI and SMPTE-2110 IP video connectivity.
  • Rely on this broadcast monitor's auto-switching between SD, HD, 3G, 6G, and 12G-SDI formats.
  • Optimize rack space with the efficient 6 RU design of this professional production monitor.
  • Achieve precision timing using the monitor's IEEE 1588-2008 (PTP v2) protocol for synchronization.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design SmartView 4K G3 Specifications

Connections

Connections

Jump to...
  • SDI Inputs

    2x

  • SDI Outputs

    1 loop out
    Reclocked video output that automatically switches to input selection

  • SDI Rates

    270Mb, 1.5G, 3G, 6G, 12G

  • Optical Video Input

    SFP Optical Fiber connector cage.
    Supports 2110 IP video and optical SDI

  • Multi Rate Support

    Auto detection of 4K, Ultra HD, 2K, HD or SD inputs

  • Updates and Configuration

    USB

  • Ethernet

    1x 10Gb/s RJ-45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates

  • Tally

    9-pin D connector

Standards

Jump to...
  • SD Format Support

    525i59.94 NTSC, 625i50 PAL

  • HD Format Support

    720p50, 720p59.94, 720p60
    1080i50, 1080i59.94, 1080i60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

  • 2K Format Support

    2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
    2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30

  • Ultra HD Format Support

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60

  • 4K Format Support

    4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M, SMPTE 2082

  • SDI Color Space

    REC 601, REC 709

  • SDI Auto Switching

    Automatically selects between SD, HD, 3G, 6G and 12G-SDI

  • Video Sampling

    4:2:2 and 4:4:4

IP Video Compliance

Jump to...
  • SMPTE 2110-20 (Uncompressed Video)

    IGMP v2

  • SMPTE 2110-21 (Traffic Shaping)

    Sender: Narrow
    Receiver: Narrow, Wide Synchronous, Asynchronous

  • SMPTE 2110-30 (PCM)

    Audio Conformance level: Level C

  • SMPTE 2110-40 (Ancillary Data)

    Full access to entire SMPTE ancillary data stream.
    Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata

  • Precision Time Protocol

    IEEE 1588-2008 (PTP v2)
    ST 2059-1
    ST 2059-2

  • NMOS IS-04 Discovery and Registration

    v1.3.2
    Peer-to-peer via mDNS/DNS-SD

  • NMOS IS-05 Connection Management

    v1.1.2

  • NMOS BCP-002-01

    Natural Grouping

  • NMOS BCP-004-01

    Receiver capabilities

  • Codec

    Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video

Software

Jump to...
  • Internal Software Upgrade

    Via included firmware updater software

  • Settings Control

    Via USB or Ethernet

Operating Systems

Jump to...
  • Mac

    Mac 12.0 Monterey, Mac 13.0 Ventura or later

  • Window

    Windows 10, 64-bit.
    Windows 11

Display

Jump to...
  • Display Element

    15.6" TFT Active Matrix LCD

  • Display Resolution

    3840 x 2160 pixels

  • Response

    25 ms

  • Contrast Ratio

    1000:1

  • Color Depth

    16.7 million colors

Power Requirements

Jump to...
  • Power Supply

    1x Internal 100 - 240V AC 50/60Hz

  • Power Inputs

    1x IEC C14 socket for AC power.
    1 x 5.5mm barrel

  • Power Consumption

    24 W

Physical Installation

Jump to...
  • Rack Units

    6 rack units

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -4 to 140 Degree F (-20 to 60 Degree C)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...
  • Dimensions

    19.0 x 10.47 x 2.75" (48.26 x 26.63 x 6.99cm)

  • Weight

    7.94 lbs (3.59kg)

  • UPC Code

    9338716008722

About Blackmagic Design SmartView 4K G3

After extensive research and development, Adorama presents the SmartView 4K G3 15.6" DCI 4K Broadcast Monitor, a state-of-the-art device that seamlessly integrates with IP-based broadcast systems. This advanced monitor is equipped with built-in optical and copper SMPTE-2110 IP video connections, allowing for direct connectivity to your IP infrastructure.

The SmartView 4K G3 also boasts two 12G-SDI inputs, making it compatible with a wide array of professional video equipment. Both the 12G-SDI and 2110 video inputs can output to a 12G-SDI loop output connection, providing enhanced flexibility for your setup.

Constructed with a lightweight machined aluminum chassis, the monitor is both durable and portable. It features a high-resolution Ultra HD LCD screen, offering crystal clear image quality. On-screen overlays such as focus peaking, framing guides, and safe area indicators are included for optimal user experience.

The monitor also supports built-in 3D LUTs, allowing for creative looks, log film gamma conversion, and custom HDR profile handling. This makes the SmartView 4K G3 an ideal solution for broadcasting, supporting both 12G-SDI and 2110 IP up to 2160p60.

For live production, the monitor offers essential features for accurate camera monitoring, including focus peaking, zoom, aspect ratio markers, and tally. The 4K display provides incredibly fine camera image detail, ensuring the highest quality output.

The SmartView 4K G3 is also perfect for fly away kits, thanks to its lightweight aluminum construction and compact design. It's only a few inches deep, allowing for excellent rack ventilation via natural convection.

The monitor's design is anodized in deep black, giving it a sleek and professional look. It features a range of button controls that are slightly tilted for ease of use. All video connections are located at the rear of the monitor, and there's even a VESA mounting point for added convenience.

The high-resolution LCD screen displays every pixel in an Ultra HD image, resulting in a clean image with deep color fidelity. To avoid fingerprints on the screen, the monitor includes a row of buttons for adjusting all controls without touching the screen.

The SmartView 4K G3 is designed for broadcast, so it instantly locks to a new video source. Unlike TVs, the video is not overscanned, so you get all image pixels right to the edge of the LCD.

The monitor also supports a wide range of SD, HD, and 2K DCI film standards, as well as Ultra HD and 4K DCI film standards. This makes the SmartView 4K G3 a future-proof investment, as it can be updated with new television standards as they are developed.

The SmartView 4K G3 fully conforms to the SMPTE-2110 standard for IP video, with both optical fiber and copper 10G Ethernet connections. It also supports the NMOS interface specifications, allowing all your 2110 IP video devices to operate together as a large virtual router.

For live production, the monitor supports the Blackmagic SDI Tally Protocol, illuminating a colored border around the image to indicate on-air or preview status.

The SmartView 4K G3 also comes with free remote control software for Mac and Windows, allowing you to change settings or update the software easily.

In conclusion, the SmartView 4K G3 15.6" DCI 4K Broadcast Monitor is a versatile, high-quality, and future-proof solution for all your broadcasting needs.

Blackmagic Design SmartView 4K G3 Features

  • High quality monitor with 2110 IP and 12G-SDI connections
  • SD, HD and UltraHD up to 2160p60
  • 4K resolution LCD with focus peaking, framing guides, 3D LUTs, AC and 12VDCpower

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior clarity with the SmartView 4K G3's 15.6" DCI 4K broadcast monitor.
  • Ensure accurate color with this production monitor's REC 601 and REC 709 color space support.
  • Easily integrate into any workflow with versatile 12G-SDI and SMPTE-2110 IP video connectivity.
  • Rely on this broadcast monitor's auto-switching between SD, HD, 3G, 6G, and 12G-SDI formats.
  • Optimize rack space with the efficient 6 RU design of this professional production monitor.
  • Achieve precision timing using the monitor's IEEE 1588-2008 (PTP v2) protocol for synchronization.

What's in the box:

  • Blackmagic Design SmartView 4K G3 15.6" DCI 4K Broadcast Monitor
  • Welcome Wallet with QR Code for Software Download
  • Blackmagic Design 1 Year Limited Warranty
