6
Front panel input overrides rear input 6
2
Front panel output mirrors rear output 2
270Mb, 1.5G, 3G, 6G, 12G
On all 6 inputs for clean switch
On all SDI outputs
Tri-Sync or Black Burst
Reference terminating loop output
USB-C
Supports 10/100/1000 BASE-T
1x USB Type-C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601
Television standard sample rate of 48kHz and 24-bit
YUV 4:2:2 and RGB 4:4:4
10, 12-bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes
REC 601, REC 709, REC 2020
Automatically selects between 270Mb SD-SDI, 1.5G HD-SDI, 3G level A and level B HD-SDI, 6G HD-SDI and 12G-SDI on each input so that each input can be running a different television standard
Video payload identification ancillary data as per SMPTE 352M
8x buttons
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol
Ethernet
Router control included free for Windows and Mac
Via included updater application
Mac: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later.
Windows: Windows 10, 64-bit.
Windows 11
1x Internal 100 - 240V AC 50/60Hz.
IEC power cable required. 1 x 12V DC input with reverse polarity protection
18.5W max
0 Degree to 40 Degree C (32 Degree to 104 Degree F)
-20 Degree to 60 Degree C (-4 Degree to 140 Degree F)
0% to 90% non-condensing
11 x 6.82 x 1.82" (27.94 x 17.3 x 4.6cm)
23.57 lbs (10.69kg) (Body Only)
9338716009903

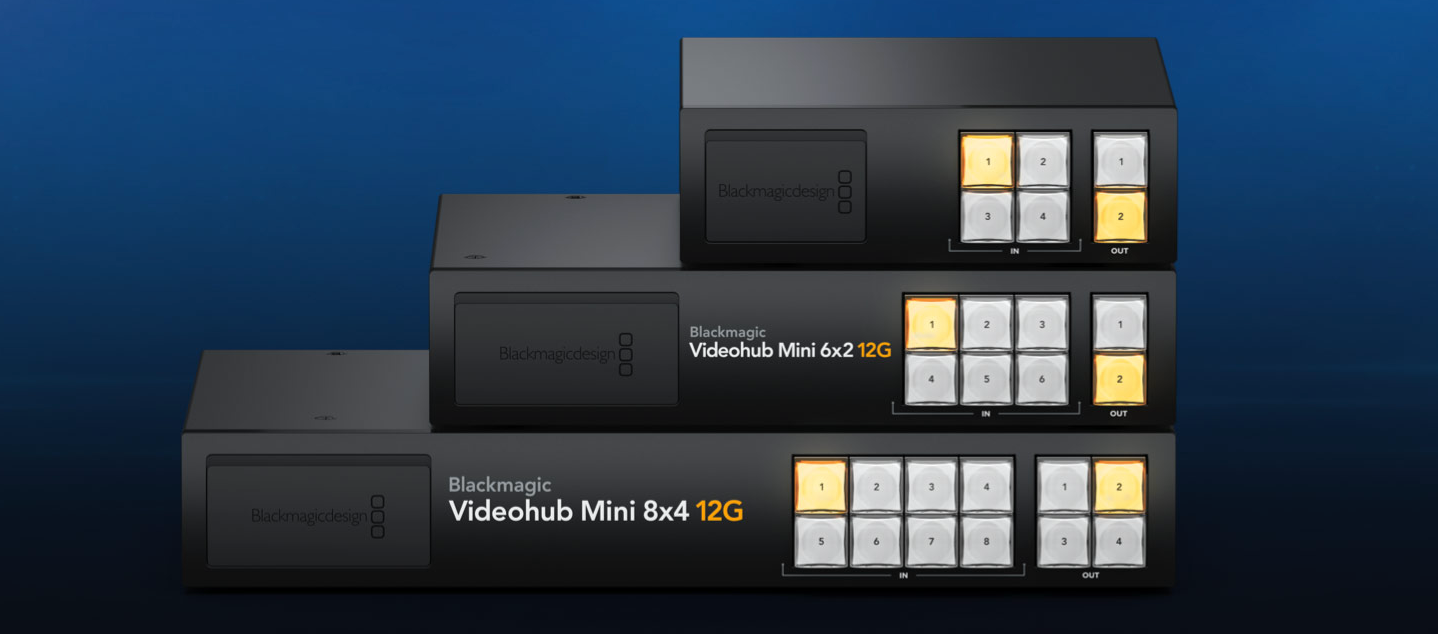

Blackmagic Videohub Mini 12G Routers are a new family of compact Videohub 12G routers for customers working in limited spaces. Available in 3 models, they include a ⅓ rack width 4x2 model, a ½ rack width 6x2 model, and a ⅔ rack width 8x4 model.

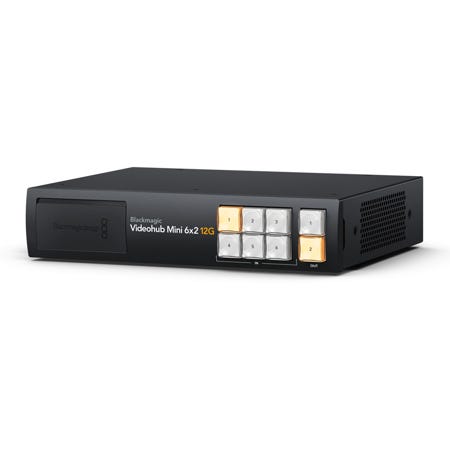

Thanks to its 12G-SDI interface, the Videohub Mini 6x2 12G handles SD, HD, and glorious Ultra HD up to 2160p60.
Say goodbye to that awkward moment when switching sources causes your display to flicker or freeze. Each output on the Videohub Mini has a clean switch, ensuring seamless transitions without any visual hiccups.
Need to make quick changes on the fly? The front panel controls give you full command of your routing setup without needing to touch software.
You’re mid-broadcast and need to make a last-minute connection? Boom — there's a 12G-SDI input right on the front panel.
Signal integrity matters. That’s why every 12G-SDI input features SDI re-clocking, ensuring your signals stay strong and stable — even when you’re dealing with longer cable runs or varied sources.
Yep, it doubles as a webcam output via USB-C, so you can feed SDI video straight into your computer. This is huge for live streaming, webinars, and remote production setups where quality can't be compromised.
It's small enough to take on the road but tough enough to live in high-pressure broadcast environments.
The Videohub Mini 6x2 12G plays nice with Videohub Master Control Pro and Smart Control Pro panels. Or, if you prefer digital control, dive into Videohub Software Control available on Mac, Windows, and iPad.
From Tokyo to Toronto, this router speaks your language. Literally. With localization in 13 languages, it's ready to work wherever you are.
You’ll love that it includes a free Software Development Kit (SDK) for integrating with custom broadcast automation systems.
