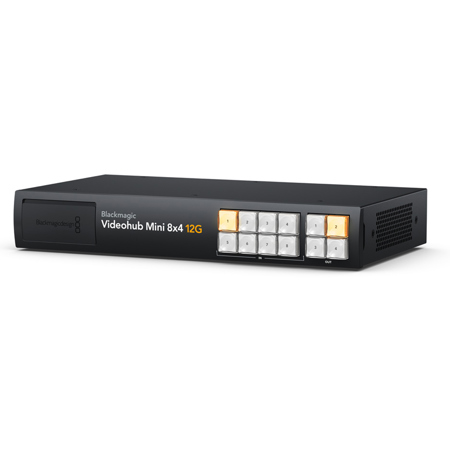

Blackmagic Design Videohub Mini 8x4 12G Router, 8 Inputs and 4 Outputs

SKU: BMDVHUBMINI8 MFR: VHUBSMTK12G0804
Earn VIP Reward Points

Key Features

  • Seamlessly switch between 8 inputs & 4 outputs with the Blackmagic Videohub Mini 12G Router.
  • Enjoy reliable streaming with automatic SD, HD, and Ultra HD video standard detection.
  • Use the built-in control panel or software for easy video switcher management on the fly.
  • Ensure high resolution video quality with 10-bit YUV 4:2:2 in all modes for pristine images.
  • Low latency switching ensures smooth transitions for live events and broadcast environments.
  • Wide compatibility: Supports Mac & Windows, plus Blackmagic Smart Control Pro hardware panels.
See More Product Details
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Blackmagic Design Videohub Mini 12G Specifications

Connections

Connections

Jump to...
  • SDI Video Inputs

    8
    Front panel input overrides rear input 8

  • SDI Video Outputs

    4
    Front panel output mirrors rear output 4

  • SDI Rates

    270Mb, 1.5G, 3G, 6G, 12G

  • Video Input Re-Sync

    On all 8 inputs for clean switch

  • SDI Reclocking

    On all SDI outputs

  • Reference Inputs

    Tri-Sync or Black Burst

  • Reference Outputs

    Reference terminating loop output

  • Webcam Output

    USB-C

  • Ethernet

    Supports 10/100/1000 BASE-T

  • Computer Interface

    1x USB Type-C 3.1 Gen 1 for webcam out, software updates and Videohub Setup Utility connection

Standards

Jump to...
  • SD Video Standards

    525i59.94 NTSC, 625i50 PAL

  • HD Video Standards

    720p50, 720p59.94, 720p60
    1080i50, 1080i59.94, 1080i60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30

  • 2K Video Standards

    2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
    2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI

  • Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60

  • 4K Video Standards

    4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601

  • SDI Audio Sampling

    Television standard sample rate of 48kHz and 24-bit

  • SDI Video Sampling

    YUV 4:2:2 and RGB 4:4:4

  • SDI Color Precision

    10, 12-bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes

  • SDI Color Space

    REC 601, REC 709, REC 2020

  • SDI Auto Switching

    Automatically selects between 270Mb SD-SDI, 1.5G HD-SDI, 3G level A and level B HD-SDI, 6G HD-SDI and 12G-SDI on each input so that each input can be running a different television standard

  • SDI Metadata Support

    Video payload identification ancillary data as per SMPTE 352M

Control

Jump to...
  • Built in Control Panel

    12x buttons

  • External Control Panel

    Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Blackmagic Smart Control Pro and Blackmagic Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol

  • Control Panel Connection

    Ethernet

Software

Jump to...
  • Software Control

    Router control included free for Windows and Mac

  • Internal Software Upgrade

    Via included updater application

Operating Systems

Jump to...
  • Operating Systems

    Mac: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later.
    Windows: Windows 10, 64-bit.
    Windows 11

Power Requirements

Jump to...
  • Power Supply

    1x Internal 100 - 240V AC 50/60Hz.
    IEC power cable required. 1 x 12V DC input with reverse polarity protection

  • Power Usage

    23W max

Environmental

Jump to...
  • Operating Temperature

    0 Degree to 40 Degree C (32 Degree to 104 Degree F)

  • Storage Temperature

    -20 Degree to 60 Degree C (-4 Degree to 140 Degree F)

  • Relative Humidity

    0% to 90% non-condensing

Physical

Jump to...
  • Dimensions

    11 x 6.82 x 1.82" (27.94 x 17.3 x 4.6cm)

  • Weight

    23.57 lbs (10.69kg) (Body Only)

  • UPC Code

    9338716009910

8 Accessories for Blackmagic Design Videohub Mini 8x4 12G Router, 8 Inputs and 4 Outputs

  • All Accessories (8)
  • Power Supply & Accessories (2)
  • Cables & Adapters (6)

About Blackmagic Design Videohub Mini 12G

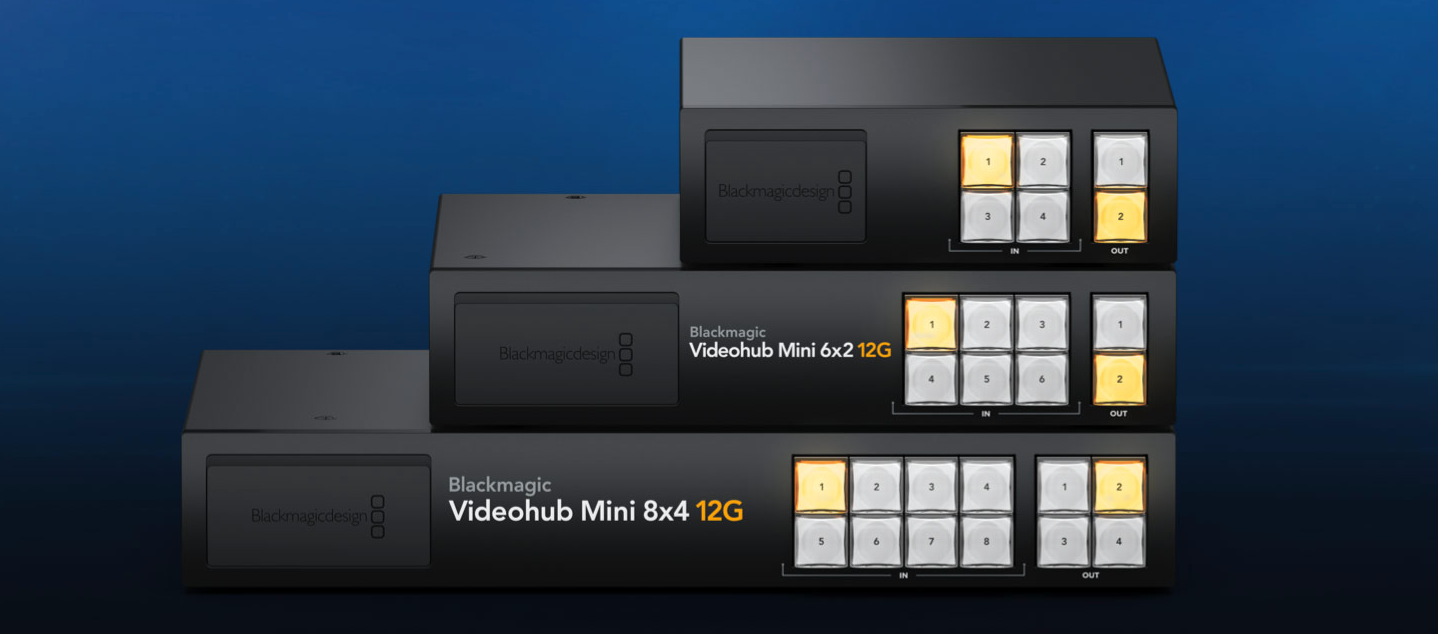

Blackmagic Videohub Mini 12G Routers are a new family of compact Videohub 12G routers for customers working in limited spaces. Available in 3 models, they include a ⅓ rack width 4x2 model, a ½ rack width 6x2 model, and a ⅔ rack width 8x4 model.

Blackmagic Design Videohub Mini 8x4 12G Router

Advanced 12G-SDI for SD, HD, and ultra HD routing

The Videohub Mini supports mixed format 12G-SDI, so you can plug in SD, HD, or glorious Ultra HD signals all at once — without even breaking a sweat. It’s ultra-fast, ultra-versatile, and ultra-reliable.

Front panel router control

Buttons. Knobs. Control. You’ve got it all right on the front panel. Patch video manually or reroute on the fly — no external software needed.

Blackmagic Design Videohub Mini 8x4 12G Router has Front panel router control

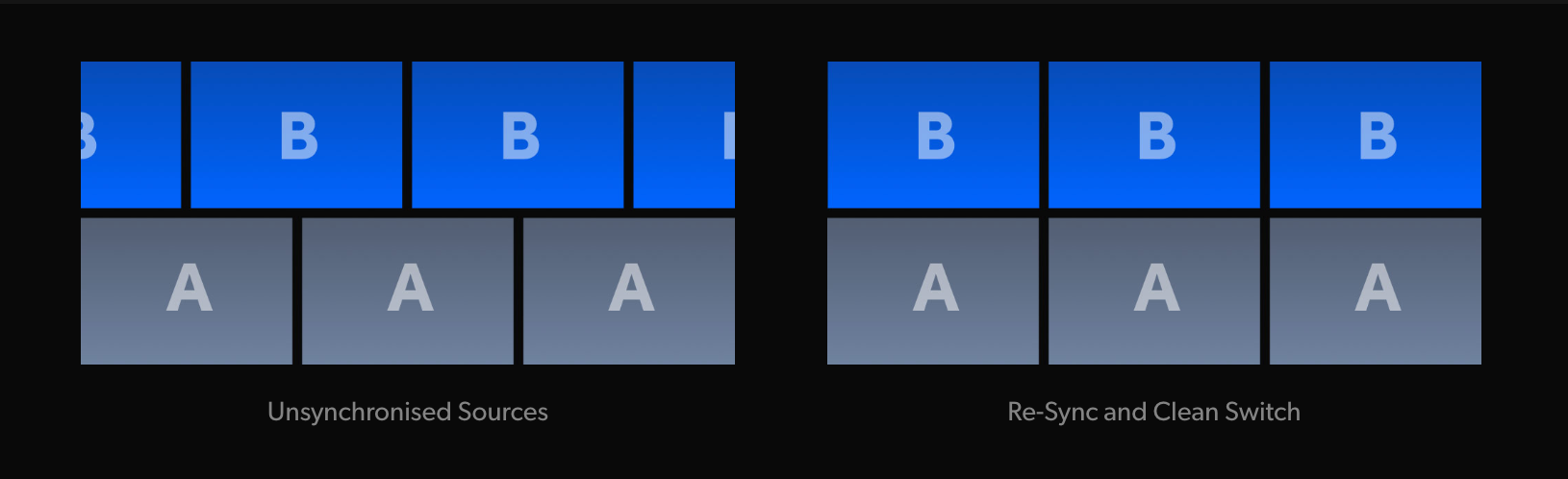

Clean switch on every video output

This means seamless cuts with no glitches, no hiccups, no awkward moments. Ideal for live production or broadcast where timing is everything and failure isn’t an option.

Blackmagic Design Videohub Mini 8x4 12G Router has a clean switch

USB-C webcam output

Need to get that SDI signal into your computer for streaming, Zoom calls, or live presentation? Just plug it into the front panel USB-C and voila — it appears as a regular webcam input.

Compact and minimalist

The Videohub Mini is made for portability without compromising on performance. Whether you’re in a truck, a closet, or an impromptu studio on the beach, this router fits right in.

Blackmagic Design VideoHub Mini 8x4 12G

SDI re-clocking on all inputs

Worried about signal degradation? Don’t be. Every 12G-SDI input comes with built-in re-clocking, ensuring your video stays clean, sharp, and totally locked — even over long cable runs.

Blackmagic Design Videohub Mini 8x4 12G Router ensures your video stays clean, sharp with SDI re-clocking

Emergency front panel SDI input

Stuff happens. Cables get yanked. Feeds go down. That’s why there's a front panel SDI input for emergency patching.

Blackmagic Design Videohub Mini 8x4 12G Router has front panel SDI input for emergency patching

Control software for mac, windows, and iPad

Prefer your patching with a side of touchscreen? Use the Videohub Software Control for intuitive drag-and-drop routing from your computer or tablet.

Works with Master Control Panels

Fully compatible with Videohub Master Control Pro and Videohub Smart Control Pro, this unit slots right into your existing Blackmagic ecosystem.

Blackmagic Design Videohub Mini 8x4 12G Router supports Videohub Software Control

Compatible for 13 Popular Languages

No matter where you’re working in the world, the Videohub Mini speaks your language. From English to Japanese and beyond, it’s ready to go global with you.

Blackmagic Design Videohub Mini 8x4 12G Router is Compatible for 13 Popular Languages

Free SDK for custom integration

Blackmagic includes a free SDK, so you can plug this powerhouse directly into your workflows and scripts.

Blackmagic Design Videohub Mini 8x4 12G Router includes a free SDK

Blackmagic Design VideoHub Mini 8x4 12G Features

  • Compact mixed format 12G-SDI video routers.
  • Includes front panel 12G-SDI input for emergency patch connections.
  • Zero latency 12G-SDI supports SD, HD, and Ultra HD up to 2160p60.
  • Clean switch on each output.
  • SDI re-clocking on all 12G-SDI inputs.
  • Front panel USB-C webcam output.
  • Works with Videohub Master Control Pro and Videohub Smart Control Pro control panels.
  • Supports Videohub Software Control for Mac, Windows and iPad.
  • Localized for 13 popular languages.
  • Includes free SDK for integration into broadcast automation systems.

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Seamlessly switch between 8 inputs & 4 outputs with the Blackmagic Videohub Mini 12G Router.
  • Enjoy reliable streaming with automatic SD, HD, and Ultra HD video standard detection.
  • Use the built-in control panel or software for easy video switcher management on the fly.
  • Ensure high resolution video quality with 10-bit YUV 4:2:2 in all modes for pristine images.
  • Low latency switching ensures smooth transitions for live events and broadcast environments.
  • Wide compatibility: Supports Mac & Windows, plus Blackmagic Smart Control Pro hardware panels.

What's in the box:

  • Blackmagic Design Videohub Mini 8x4 12G Router
  • Welcome Wallet with QR Code for Software Download
  • Blackmagic Design 1 Year Limited Warranty
