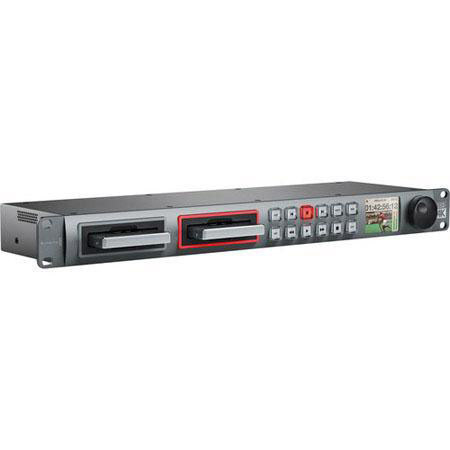

Blackmagic Design HyperDeck Studio Pro 2
See all Blackmagic Design items

Blackmagic Design HyperDeck Studio Pro 2

SKU: BMHDSP2

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Jeffery M : Hi, I would like to know, the SDI output on this unit, is it just a loop out of the SDI in or it's what being recorded? For example, if I have an SDI input with 2 audio channel and another 2 from the analog audio input, will the SDI output be with all 4 audio channels? And do I have control on what resolution and format is the SDI output? Thanks!
Shopper : Why Did You Choose This?Richard P : I am building a recording studio. Wanted a recording deck. Not finding suitable 1tb SSD's on your site though.ALBERT B : Replaces an aged FireStore FS-2 recorderPAULA M : availabilityLISA D : Had it previously

Reviews about this item

Review Summary

2020-10-30T11:08:13

Rated 5 out of 5

Easy recorder to hook up and use

Awesome recorder, worked right out of the box once the connections were made. The elapsed time indicator also includes how much time is left to record on the SSD. If two SSD’s are inserted, the indicator shows how much time before the unit switches recording to the second SSD. It calculates this all based on the resolution of the material that is being recorded. You always know if your SSD was read and is good enough for recording and you have a dynamic display of red perimeter lights around the drive slot to indicate recording is ongoing.

ALBERT B.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Blackmagic Design HyperDeck Studio Pro 2 Specifications

Connections

Connections

Jump to...

  • SDI Video Inputs

    1

  • SDI Video Outputs

    4, Single Link or Quad Link.

  • SDI Rates

    270Mb, 1.5G, 3G, 6G.

  • HDMI Video Inputs & Output

    1x HDMI type A connector including Ultra HD 4K support

  • Analog Video Inputs & Output

    Y, B-Y, R-Y

  • Analog Audio Inputs

    2x XLR connectors for professional balanced analog audio
    2 x RCA connectors for unbalanced analog audio from consumer equipment

  • Analog Audio Outputs

    2x XLR connectors for professional balanced analog audio

  • Timecode Connection

    1x XLR in and 1 x XLR out

  • SDI Audio Inputs & Output

    16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files

  • HDMI Audio Inputs & Output

    8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files

  • Reference Input

    Tri-Sync or Black Burst

  • Recorder Configuration

    Front panel configurable or USB 2.0 high speed interface

  • Computer Interface

    1x type B USB 2.0 port for initial setup, software updates and HyperDeck Utility software control

Standards

Jump to...

  • SD Video Standards

    525i59.94 NTSC, 625i50 PAL

  • HD Video Standards

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60

  • Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

  • SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M Level B

  • SDI Metadata Support

    Time Code: HD RP188. Closed Captioning: CEA-708

  • Audio Sampling

    Television standard sample rate of 48kHz and 24-bit

  • Video Sampling

    4:2:2

  • Color Precision

    10-bit

  • Color Space

    REC 601, REC 709

  • Copy Protection

    HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content

Media

Jump to...

  • Media

    2x SSD for SD, HD and Ultra HD recording

  • Media Type

    SATA-II or SATA-III solid state disc

  • Media Format

    Can format discs to ExFAT (Windows/Mac) or HFS+ (Mac) file systems

Supported Codecs

Jump to...

  • Supported Codecs

    Uncompressed QuickTime, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime, Avid DNxHD QuickTime and Avid DNxHD MXF up to 1080i60

Control

Jump to...

  • Built in Control Panel

    12 buttons for transport and menu control, 2.2 inch color display

  • External Control

    RS-422 deck control, SDI start/stop, timecode run

Software

Jump to...

  • Software Included

    Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only)

  • Internal Software Upgrade

    Firmware built into software driver. Loaded at system start, or via updater software

General

Jump to...

  • Operating Systems

    Mac 10.14 Mojave
    Mac 10.15 Catalina or later
    Windows 8.1 and 10

  • Display

    Built in LCD for video, audio and timecode monitoring and menu settings.

  • Rack Size

    1 rack unit size/Less than 7 inches deep

  • Power Supply

    1x Internal 100 - 240V AC.

  • Operating Temperature

    5 Degree to 40 Degree C (41 Degree to 104 Degree F)

  • Storage Temperature

    -20 Degree to 45 Degree C (-4 Degree to 113 Degree F)

  • Relative Humidity

    0% to 90% non-condensing

  • Dimensions

    19 x 1.7 x 6.18" (482 x 44 x 157mm)

  • Weight

    4.4 lbs(2kg)

Other

Jump to...

  • UPC Code

    9338716002171

6 Accessories for Blackmagic Design HyperDeck Studio Pro 2

  • All Accessories (6)
  • Power Supply & Accessories (4)
  • Drives & Storage (1)
  • Cables & Adapters (1)
Comprehensive 10' Standard PC Power Cord
Comprehensive 10' Standard PC Power Cord
$6.39
Recommended
SanDisk Ultra 3D 250GB SATA III 2.5" Internal SSD
SanDisk Ultra 3D 250GB SATA III 2.5" Internal SSD
$79.99
Recommended
Comprehensive 6' Standard PC Power Cord
Comprehensive 6' Standard PC Power Cord
$5.03
Comprehensive 3' Standard PC Power Cord
Comprehensive 3' Standard PC Power Cord
$4.79
C2G Cables to Go 4ft Cat6 Snagless Unshielded (UTP) Network Patch Cable - Red
C2G Cables to Go 4ft Cat6 Snagless Unshielded (UTP) Network Patch Cable - Red
$3.99
Comprehensive 10' Cat6 550 MHz Snagless Patch Cable, Black
Comprehensive 10' Cat6 550 MHz Snagless Patch Cable, Black
$6.39

About Blackmagic Design HyperDeck Studio Pro 2

FEATURED REVIEWS

Easy recorder to hook up and use

By ALBERT B.

Awesome recorder, worked right out of the box once the connections were made. The elapsed time indicator also includes how much time is left to record on the SSD. If two SSD’s are inserted, the indicator shows how much time before the unit switches recording to the second SSD. It calculates this all based on the resolution of the material that is being recorded. You always know if your SSD was read and is good enough for recording and you have a dynamic display of red perimeter lights aro...

View full Review

HyperDeck Studio Pro is the ultimate in compatibility and technology, featuring a more advanced design that includes 6G-SDI so you get SD, HD and Ultra HD formats, plus HyperDeck Studio Pro includes a wide range of video and audio connections in both analog and digital so you get the widest compatibility with older and newer equipment. Get SD, HD up to 1080p60 and Ultra HD up to 2160p30 all in the one deck! Also includes 6G-SDI and Quad Link SDI, HDMI 4K, analog component, balanced analog audio and AES/EBU audio compatibility. You even get UltraScope software for live scopes!

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • HyperDeck Studio Pro 2
  • SD card with Software/Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol
  • User Manual
  • (Power Cord Not Included)
  • Blackmagic Design 1 Year Limited Warranty
